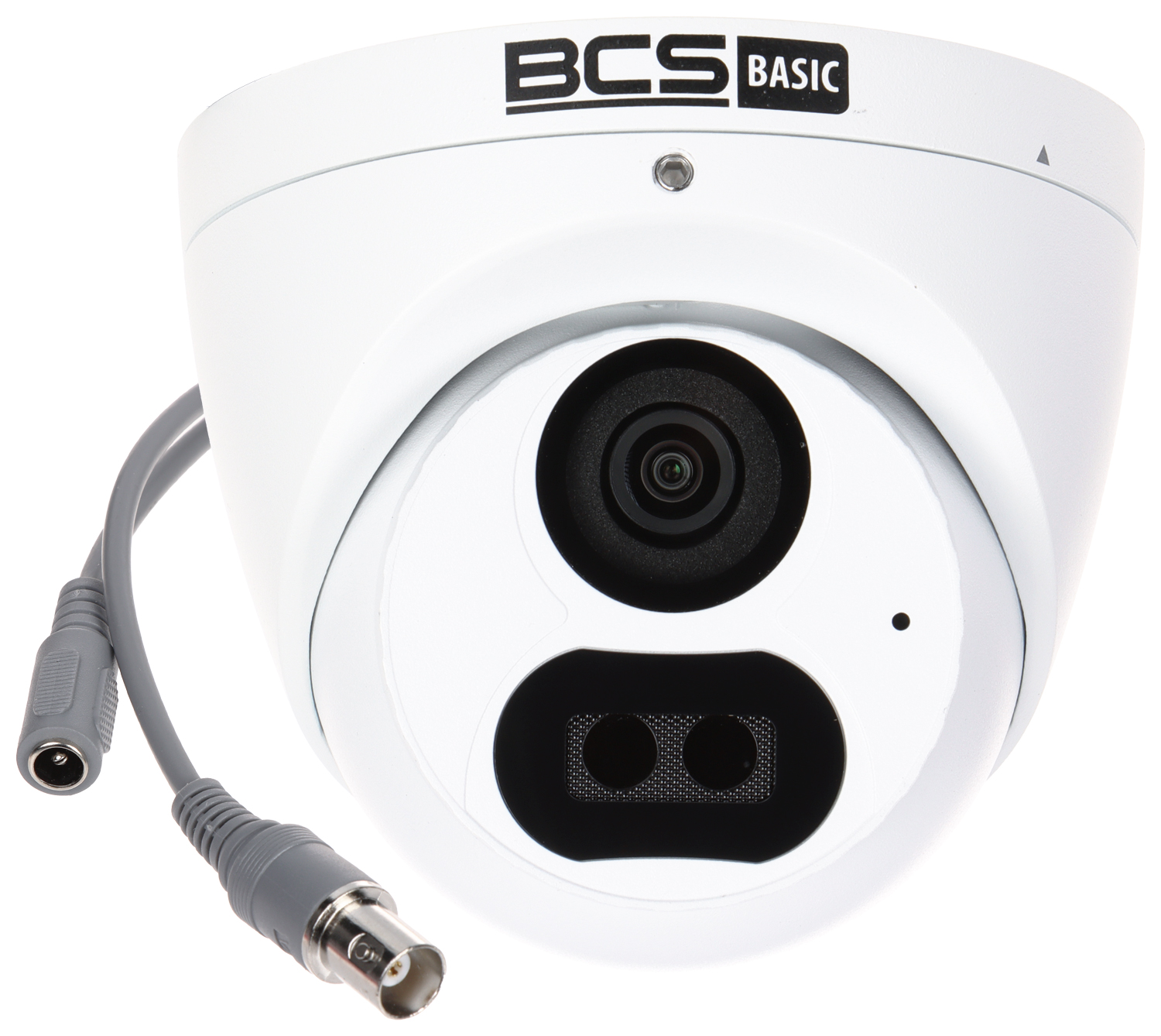

Name: AHD, HD-CVI, HD-TVI, PAL KAMERA BCS-B-EA15FSR4(2.0) - 5 Mpx 2.8 mm BCS BASIC
SKU: BCS-B-EA15FSR4(2.0)
Availability: OutOfStock

AHD, HD-CVI, HD-TVI, PAL KAMERA BCS-B-EA15FSR4(2.0) – 5 Mpx 2.8 mm BCS BASIC

Preces kods: BCS-B-EA15FSR4(2.0)

EAN: 5904890710641

Piegādes laiks: 17-21 Aprīlī

Estimated Delivery Dates

33,46 €

Availability: 0

Resolution: 2880x1620 ;>Sensors: 1/2.7" Progressive Scan CMOS ;>Viewing angle: 109 ° ;>Infrared illumination detection area: 40 m ;>Source of energy supply: 12 V DC ; <table>

Standard:
AHD / HD-CVI / HD-TVI / CVBS
Resolution:

2880x1620 – 5 Mpx @ HD-CVI @ 25 frame rate

2880x1620 – 5 Mpx @ AHD @ 20 frame rate

2880x1620 – 5 Mpx @ HD-TVI @ 20 frame rate / 12.5 frame rate

2560x1440 – 4 Mpx @ AHD / HD-CVI / HD-TVI @ 30 frame rate / 25 frame rate

1920 x 1080 – 2 Mpx @ AHD / HD-CVI / HD-TVI @ 30 frame rate / 25 frame rate

960x576 – 960H @ PAL / NTSC

Sensors:
1/2.7" Progressive Scan CMOS
Lens:
2.8 mm

Angle of visibility:

109 °
Infrared illumination reception area:
40 m

IR illuminator power adjustment:
Automatic
Video output:
AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω

OSD screen menu:
OSD menu available via video recorders
Selected functions:

D-WDR – Wide Dynamic Range

2D-DNR – Digital Noise Reduction

BLC – configurable backlight compensation

ICR – Infrared mechanical filter

AGC - Automatic gain control

Automatic white balance

Mirror – mirror image

Source of energy supply:
12 V DC / 283 mA
Power consumed:
< 3.4 W

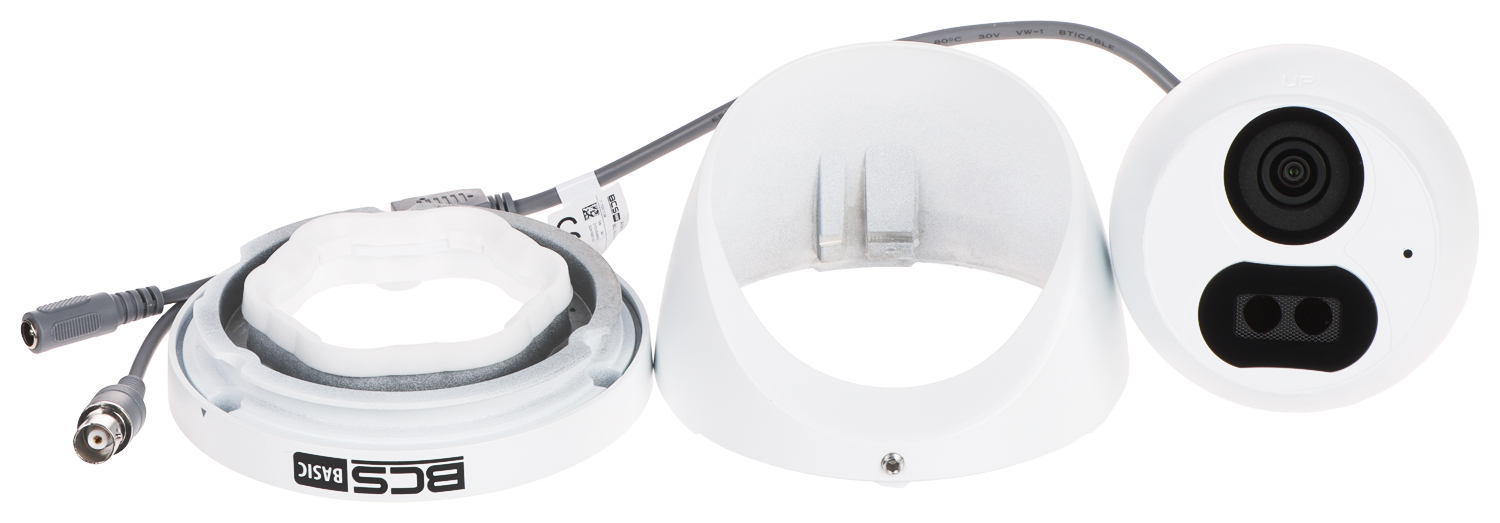

Hull:
Dome, Metal
Colour:
White

Class of protection:
IP67
Mechanical protection class:
