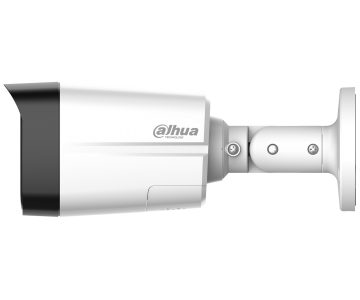

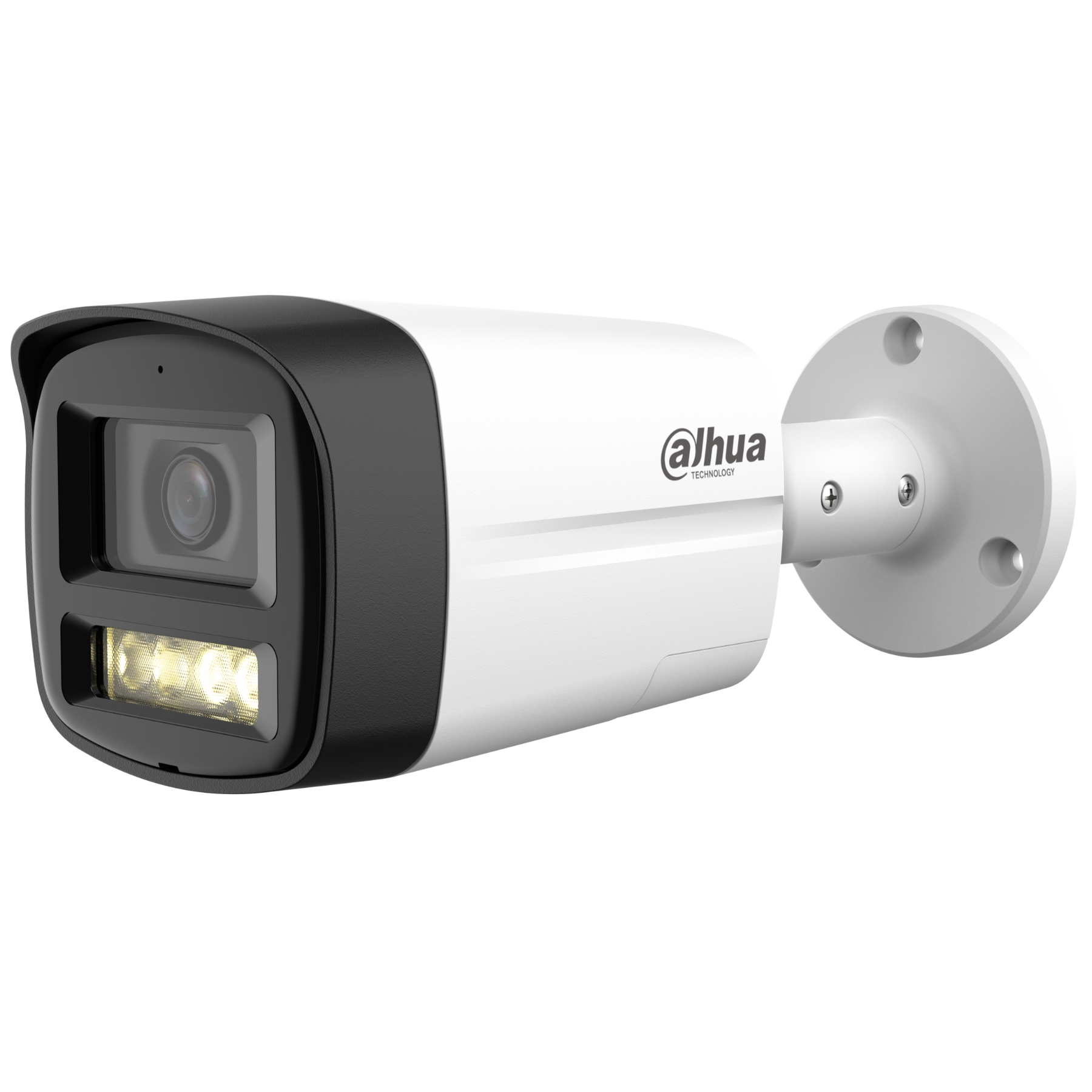

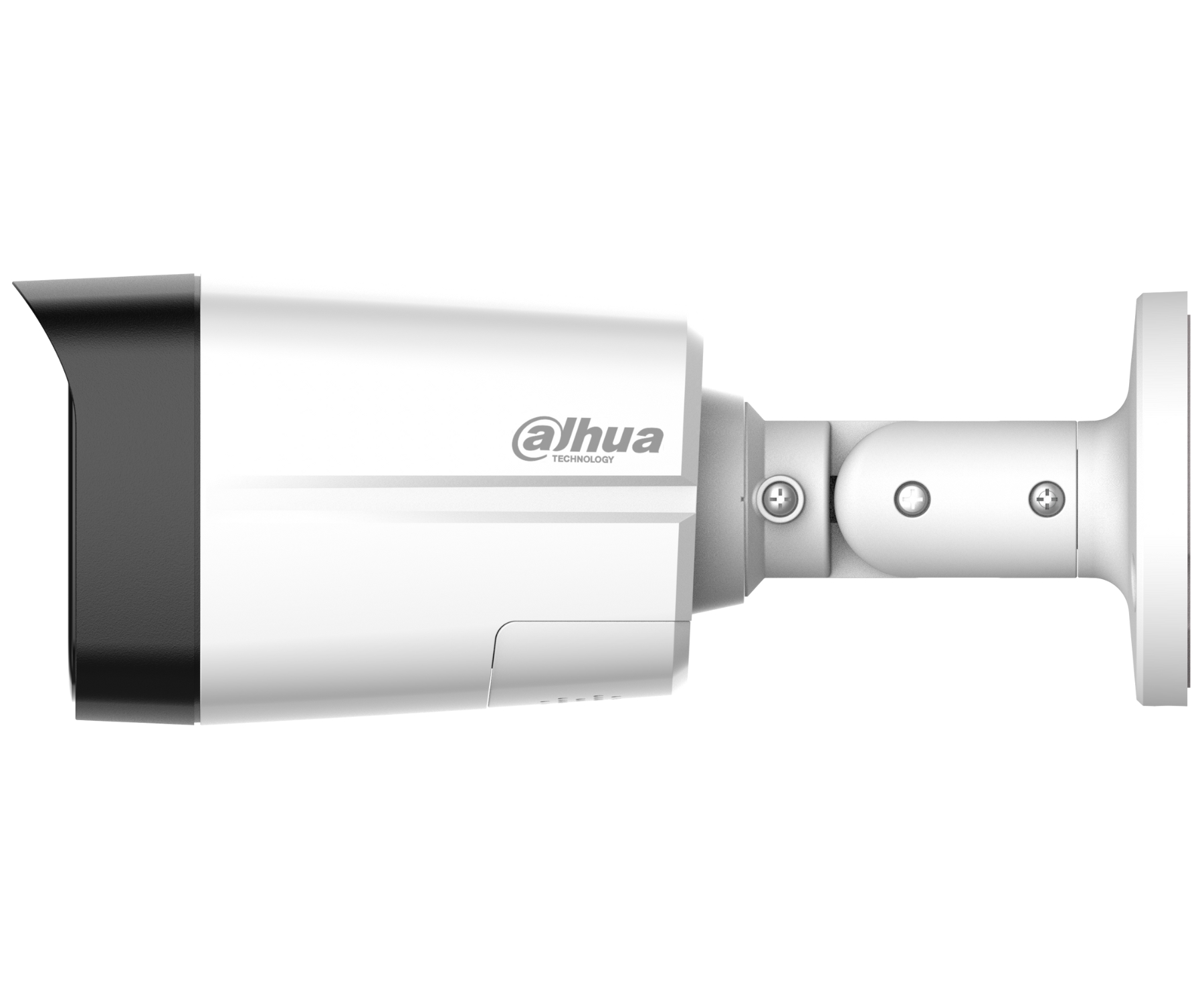

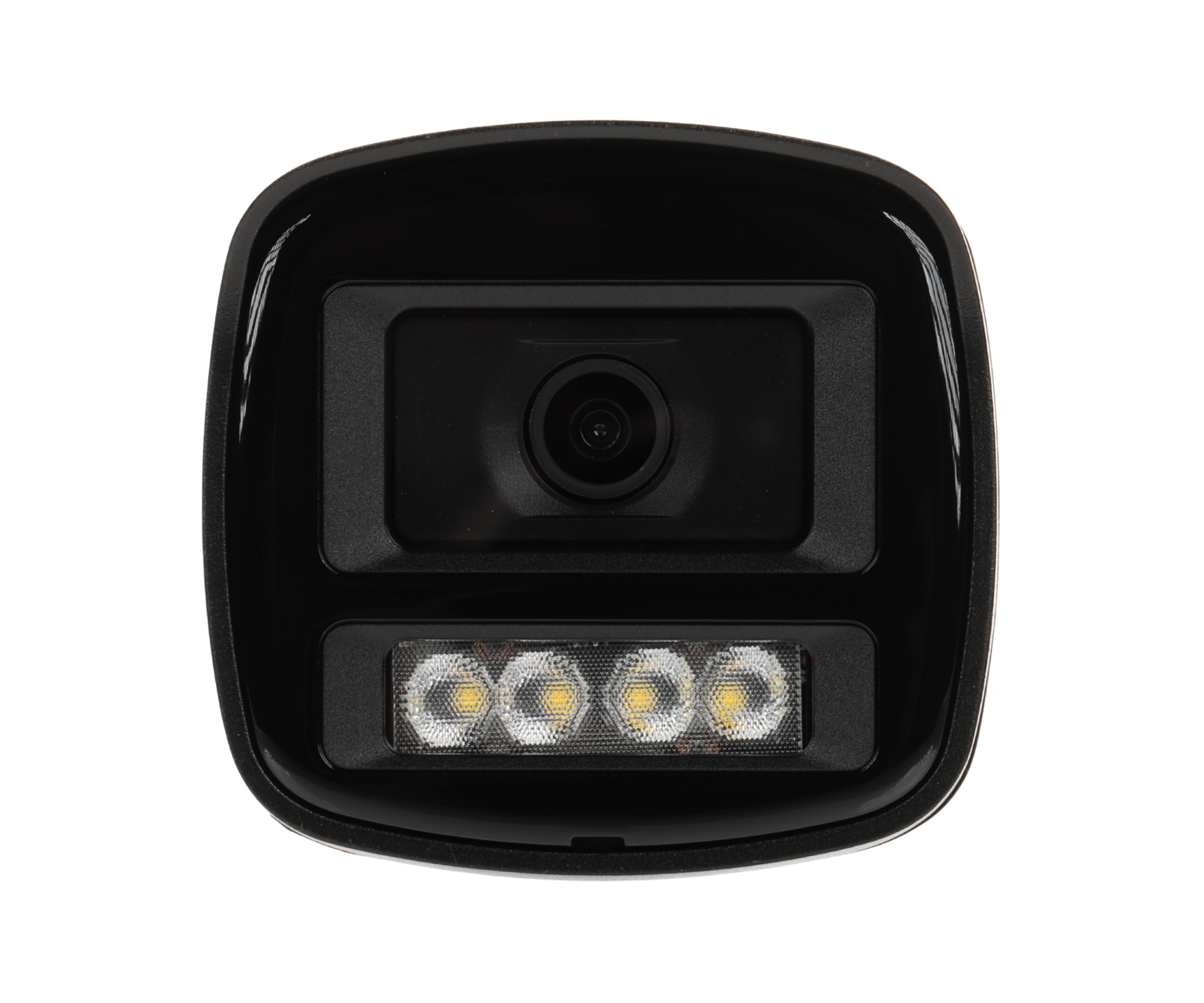

AHD, HD-CVI, HD-TVI, PAL KAMERA HAC-HFW1500TLM-IL-T-0280B-DIP Smart Dual Light Two-way Talk – 5 Mpx 2.8 mm DAHUA

Resolution: 2960 × 1665 @ HD-TVI – Attēla formāts 16 : 9, 2880 × 1620 @ HD-CVI, 2560 x 1440 @ AHD / HD-CVI, 1920 x 1080 @ HD-CVI </span>;>Viewing angle: 113 ° </span>;>Infrared illumination detection area: 40 m </span>;>LED white light range: 40 m </span>;>Audio: Iebūvēts mikrofons, Iebūvēts skaļrunis, Divvirzienu audio straumēšanas atbalsts, Audio atskaņošana, izmantojot koaksiālo kabeli – tikai HD-CVI / HD-TVI </span>;>Source of energy supply: 12 V DC </span>; <table>

Standard:
AHD, HD-CVI, HD-TVI, PAL
Resolution:
2960 × 1665  – 5 Mpx @ HD-TVI @ 20 frame rate – Image format 16:9,
2880 × 1620 – 5 Mpx @ HD-CVI @ 25/ 12.5 frame rate ,
2560x1440 – 4 Mpx @ AHD / HD-CVI @ 25 frame rate ,
1920 x 1080 - 1080p @ HD-CVI @ 25 frame rate ,
960x576 – 960H @ PAL @ 25 frame rate

Sensors:
CMOS
Lens:
2.8 mm

Angle of visibility:
113 °
Infrared illumination reception area:
40 m

LED white light range:
40 m
IR illuminator power adjustment:
Automatic

Video output:
AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω

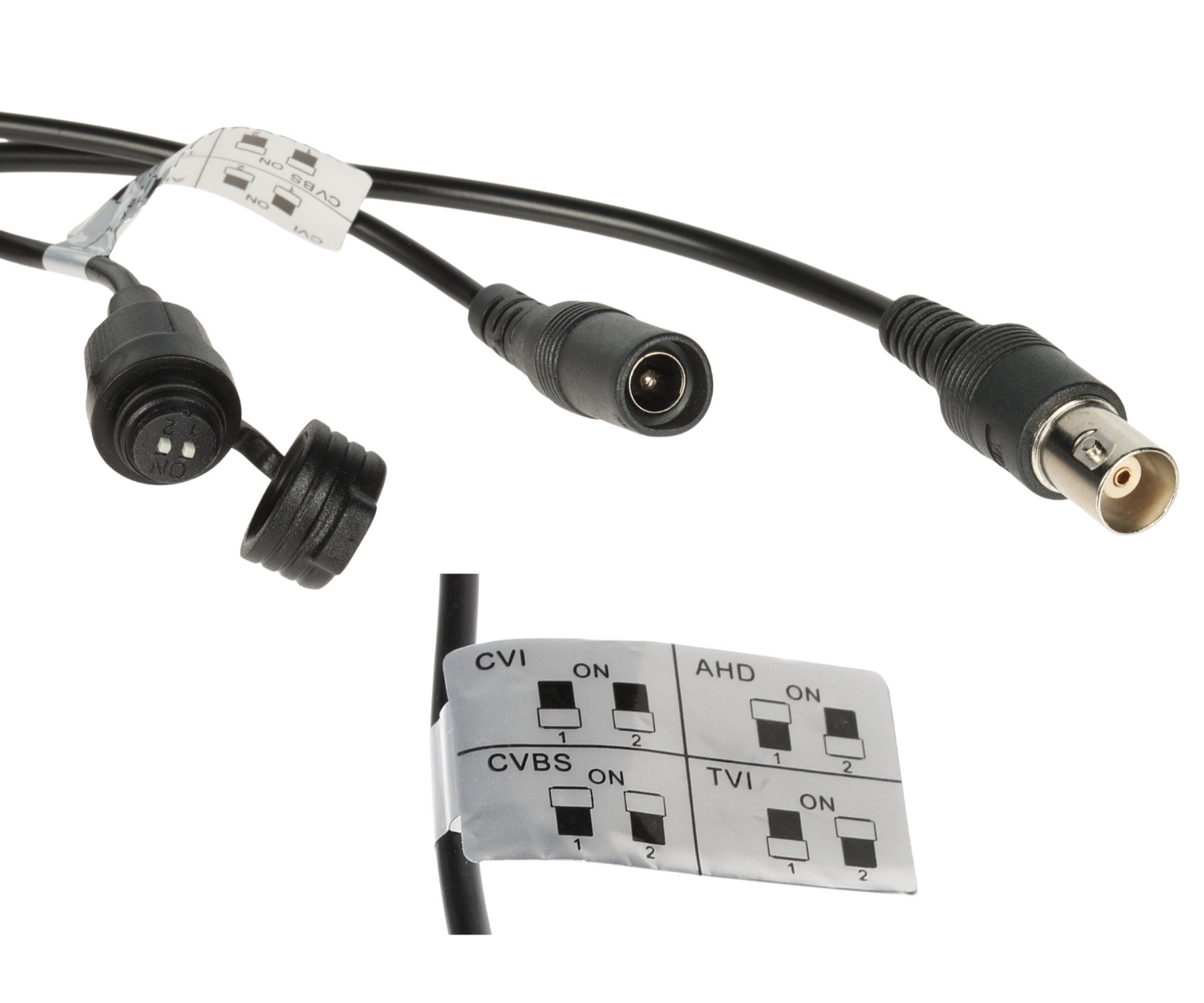

Iestatījumi ar DIP pārslēgšanas slēdžiem
Audio:

Mirror – mirror image
Source of energy supply:
12 V DC / 700 mA

Power consumed:
≤ 9.5 W
Hull:
Bullet, Plastmasa + Metāls

Colour:
White + Black
Class of protection:
IP67

Mechanical protection class:

Operating temperature:
-40°C … 60°C

Weight:
0.34 kg

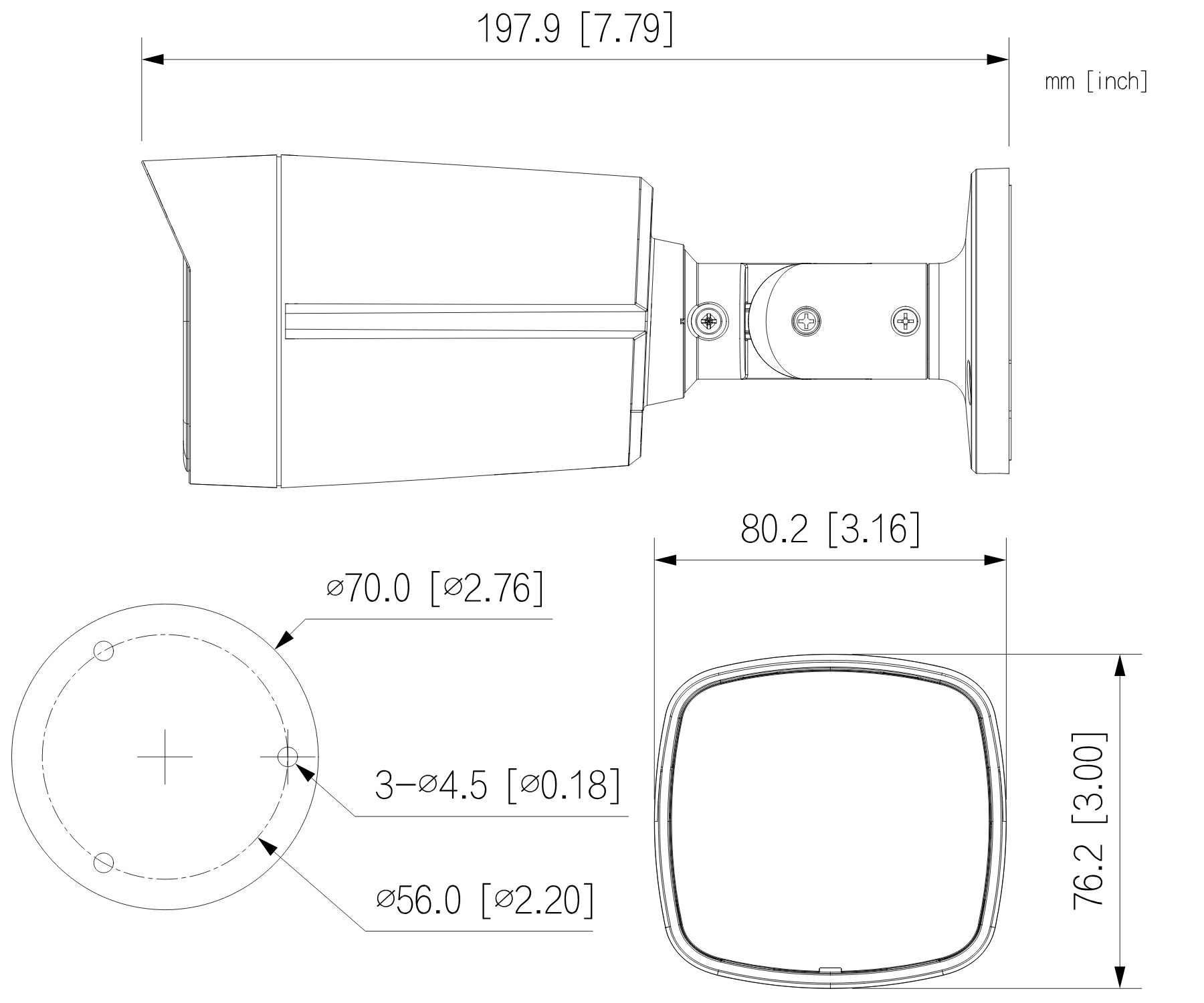

Size:
198.4  x 80.2  x 76.2 mm

Manufacturer / Brand:
DAHUA
WARRANTY:
3 years
