Technical Specification:
| Frequency range: | FM : 88 MHz … 108 MHz, VHF (III) : 174 MHz … 230 MHz, UHF : 470 MHz … 790 MHz |
| Reinforcement: | FM : 20 dB , VHF : 20 dB , UHF : 30 dB |
| Noise factor: | FM : 5 dB VHF : 5 dB UHF : 3 dB |
| Non-compliance elimination: | > 10 dB |
| Number of inputs/outputs: | 2 Ieejas : FM + VHF (III) / UHF 1 Izeja |
| Maximum output level IMD3=60 dB DIN45004B: | 108 dBµV |
| Pastiprinātāja ekrāns: | - |
| Input/output impedance: | 75 Ω |
| Connector type: | “"F"” |
| Housing: | molded frame mounted in a compact plastic housing |

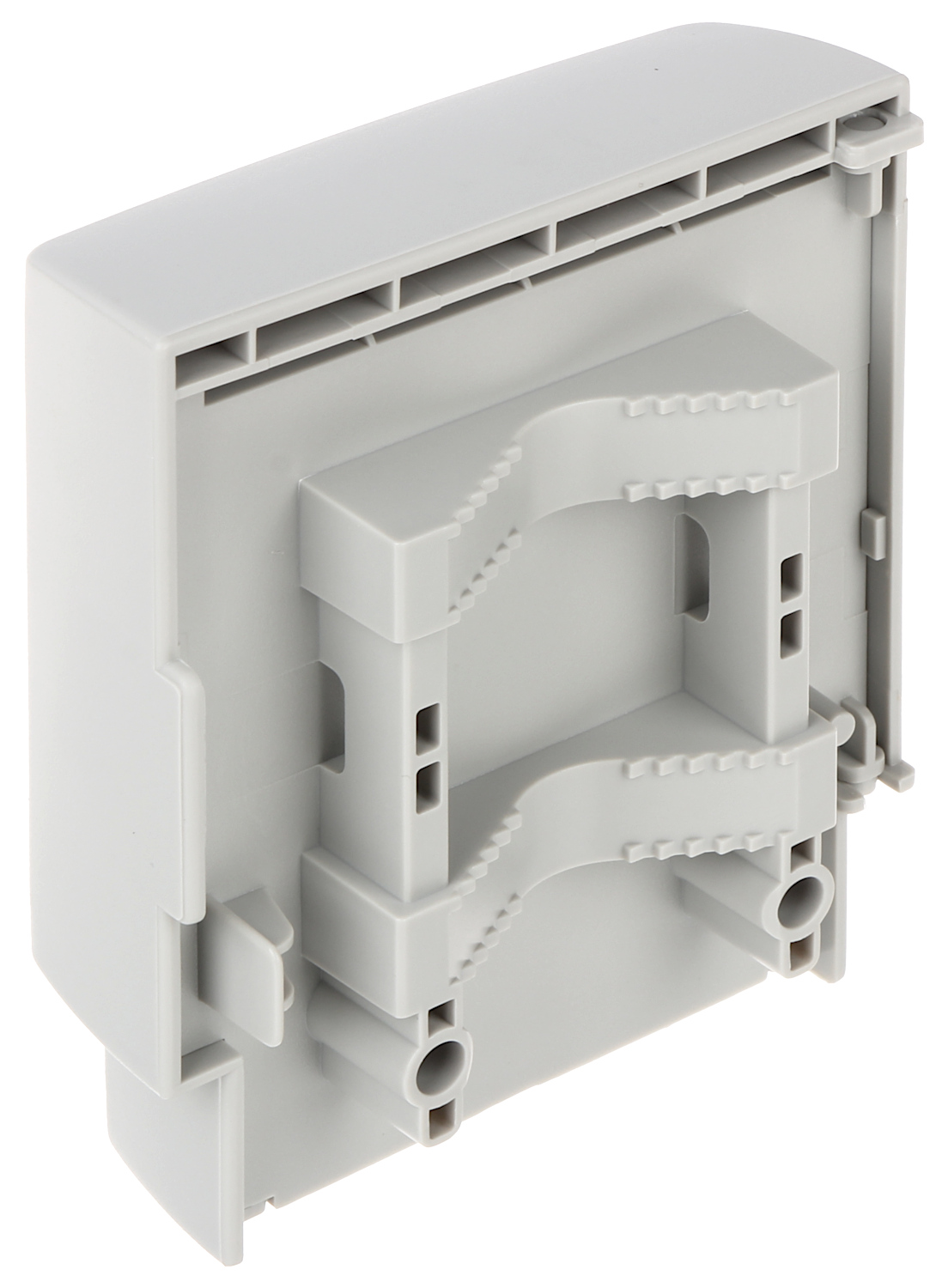

| Uzstādīšana: | uz masta vai sienas |
| Operating temperature: | -20°C … 50°C |
| Source of energy supply: | 12V DC / 60mA |
| Weight: | 0.18 kg |
| Size: | 107 x 89 x 43 mm |
| Manufacturer / Brand: | TERRA |
| Warranty: | 2 years |
