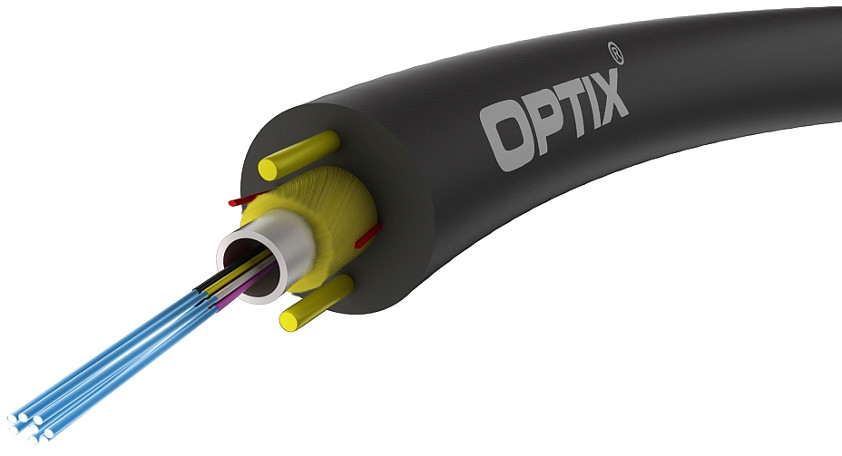

OPTIC CABLE
Z-XOTKtcdD SM 2×9/125
im div-v class=”2″> src=”http://allegro2.eltrox.pl/zdjecia/12417/kabel-swiatlowodowy-aramid-z-xotktcdd-sm-2×9-125-itu-t-g657a-12kn-span-80m-1.jpg” alt=”FIBER OPTIC CABLE ZdDX 2×9/125” Loading = Lazy "/>
Main features
- Number of fibers 2 m)
- High flexibility and tear resistance despite small diameter (~5 mm)
- HDPE coating
- Gel and water blocking construction (WB)
- UV resistance reinforced with 2 arp rods (Ø 0.5 mm)/fRP (Ø 0.4 mm)
- aramid
- Fully dielectric
- Maximum installation tension 1200N
- Compliance with EIA/TIA-598 coding standards
- Temperature range -40oC – 70oC
- Span 80M
“>
Goal
Aramid Z-XOTKtcdD series cables are designed for installation in primary and secondary telecommunication channels using pneumatic (blowing) and mechanical (pulling) methods, as well as for overhead installations in spans up to 80 meters.
Product description
Aramid Z-XOTKtcdD series cables feature a lightweight single-tube construction, high flexibility and tensile strength despite their small diameter (~5 mm). Additional benefits include a gel and water blocking construction (WB), HDPE coating and UV resistance. The tube contains up to 24 fibers, which are color coded eia/tia-598.
