ĀRĒJĀ ĀTRAS ROTĀCIJAS IP KAMERA SD49216DB-HNY - 1080p 5 ... 80 mm DAHUA

ĀRĒJĀ ĀTRAS ROTĀCIJAS IP KAMERA SD49216DB-HNY – 1080p 5 … 80 mm DAHUA

Name: ĀRĒJĀ ĀTRAS ROTĀCIJAS IP KAMERA SD49216DB-HNY - 1080p 5 ... 80 mm DAHUA
SKU: SD49216DB-HNY
Availability: InStock

Preces kods: SD49216DB-HNY

EAN: 6923172541970

Delivery time: August 19-22

Estimated Delivery Dates

190,10 €

Availability: 8

Apraksts
Additional information

Sensors: 1/2.8 " STARVIS™ CMOS Matrix size: 2.1 Mpx Resolution: 1920 x 1080 Viewing angle: 54 ° … 4.6 ° Optical zoom: x 16 Infrared illumination detection area: 100 m Rotation speed (manual control): 0.1 °/s … 80 °/s (līmenis) 0.1 °/s … 80 °/s (vertikāli) Image compression method: H.265+ Alarm inputs/outputs: 2 / 1 Audio: External microphone input Memory card slot: Supports Micro SD memory cards up to 512GB (local recording possible) Source of energy supply: PoE (802.3at), 12 V DC

Standard:
TCP/IP
Sensors:
1/2.8 " STARVIS™ CMOS

Matrix size:
2.1 Mpx
Resolution:
1920 x 1080 - 1080p ,
1280 x 960 1.3 Mpx ,
1280 x 720 720p

Lens:
5 … 80 mm
Angle of visibility:

54 ° … 4.6 ° (ražotāja dati)

55 ° … 4.1 ° (mūsu pārbaudes)

Optical zoom:
x 16
Digitālais zoom:
x 16

Infrared illumination reception area:
100 m
Video output:

Presetu rotācijas ātrums:

80 °/s (līmenis)

80 °/s (vertikāli)
Rotation speed (manual control):

0.1 °/s … 80 °/s (līmenis)

0.1 °/s … 80 °/s (vertikāli)

Horizontal rotation range:
360 ° – nepārtraukts
Vertical rotation range:
-15 ° … 90 °

RS-485 interface:

Number of presets:
300

Horizontal scan:

Route settings:
8

Image compression method:
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs/outputs:
2 / 1

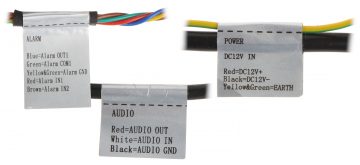

Audio:

External microphone input

Audio output

Sound detection

Compliant with AAC standard
Mainstream transmission speed:
25 frame rate @ 1080p

Network interface:
10/100 Base-T (RJ-45)
WEB Server:
Built-in

Maximum number of online users:
20
ONVIF:
21.12

Memory card slot:
Supports Micro SD memory cards up to 512GB (local recording possible)
Mobile phone access:
Port: 37777 or access via cloud

Android: Free application DMSS

iOS (iPhone): Free app DMSS

Default IP address:
192.168.1.108
Default username/admin password:
admin / –
Administrator password must be set during first launch

Browser access ports:
80, 37777
Access ports using PC application:
37777

Access ports using the mobile application:
37777
ONVIF port:
80

RTSP URL:
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Selected functions:

WDR – 120 dB – Wide dynamic range of lighting

2D-DNR, 3D-DNR – Digital Noise Reduction

EIS – Elektroniskais attēla stabilizētājs

ROI – improving the quality of selected image fragments

F-DNR (Defog) – Precipitation Noise Reduction

BLC/HLC – Backlight/High Light Compensation

Motion detection

ICR – Infrared mechanical filter

Sharpness - Sharpness of the image contours

Privātuma zonas – maks. 24

SMD 3.0 – objekta meklēšana, kas klasificēts kā: cilvēks, mehānisks transportlīdzeklis

inteliģenta kustību noteikšana (nodalot personas no transportlīdzekļiem)

IVS analysis : crossing the line, burglary, ieiešana atzīmētajā zonā, atzīmētās zonas pamešana, novietošanas stāvvietā noteikšana, abandoned/missing object, ātra kustība, detection of gatherings of people, detection of suspicious activity, detection

Source of energy supply:

PoE (802.3at),

12 V DC / 3 A (strāvas adapteris nav iekļauts komplektā)
Power consumed:

≤ 12 W (tipisks),

20 W (max)

Hull:
Speed Dome, Metāls
Colour:
White + Black

Operating temperature:
-40°C … 60°C
Class of protection:
IP66

Weight:
3.05 kg (ar stiprinājumu)
Size:
160 x 295 x 357 mm (ar stiprinājumu)

Language selection:
poļu, angļu, čehu, franču, spāņu, nīderlandiešu, indonēziešu (Bahasa), vācu, portugāļu, krievu, rumāņu, turku, ukraiņu, ungāru, vjetnamas, itāļu
Manufacturer / Brand:
DAHUA

WARRANTY:
3 years

Additional information

Svars	3,9040 kg
Dimensions	430 × 220 × 210 cm
Manufacturer	Dahua
Technology	IP
Resolution	2MP
Camera type	PTZ/PT
PoE	PoE
Connectivity technology	Wired
Viewing angle	Adjustable
Lens type	Motozoom
Lens size (mm)	5-80mm
Lighting distance (m)	100m
Night colour mode	N/A
Audio	External microphone input
Alarm input/output	2/1
Class of protection	IP66
Memory card support	PoE enabled
Camera colour	White
