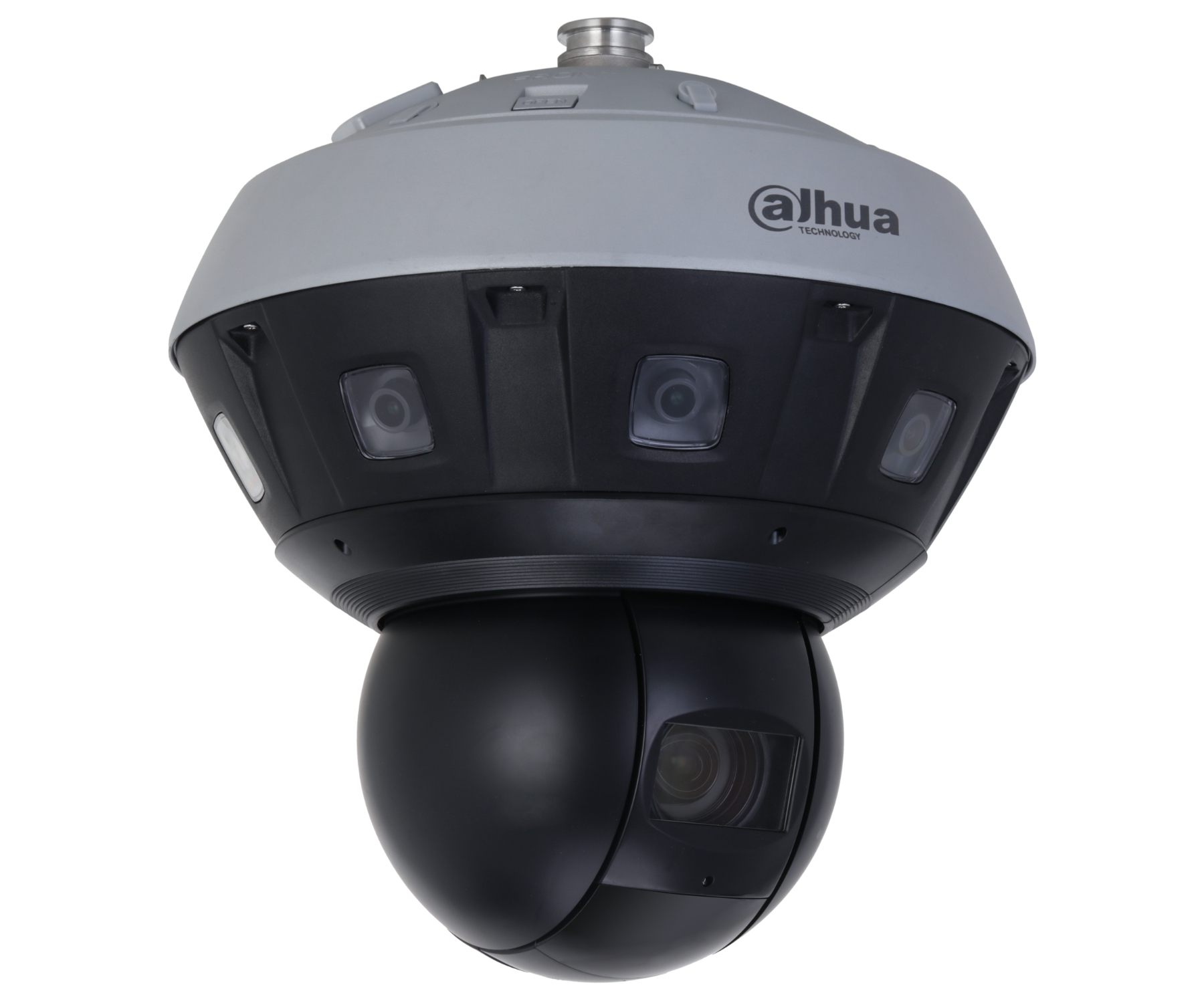

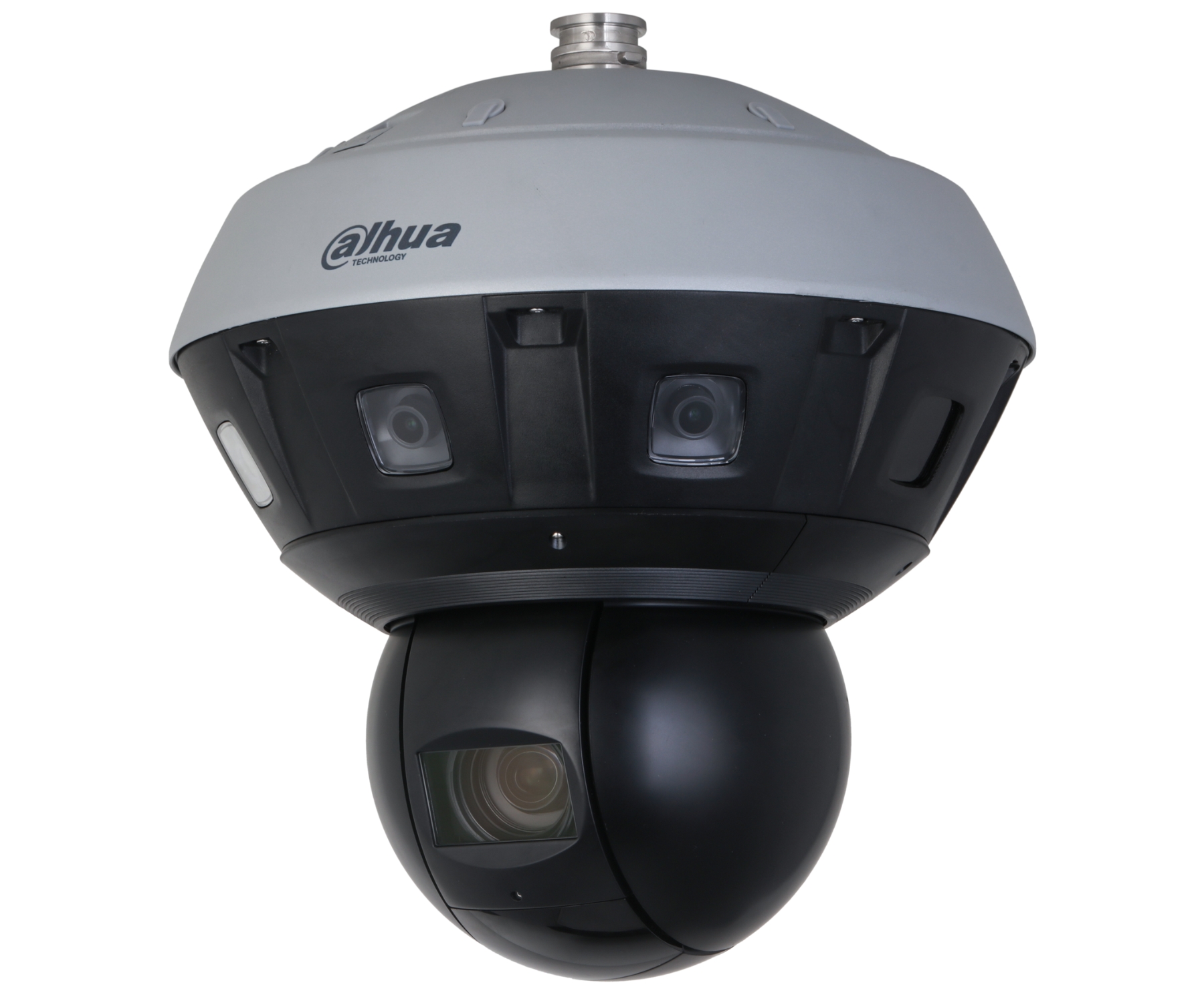

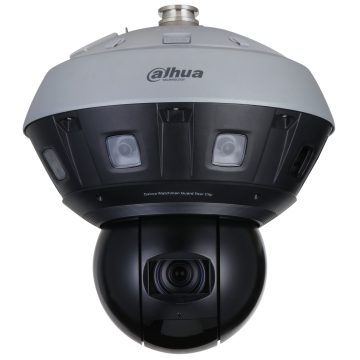

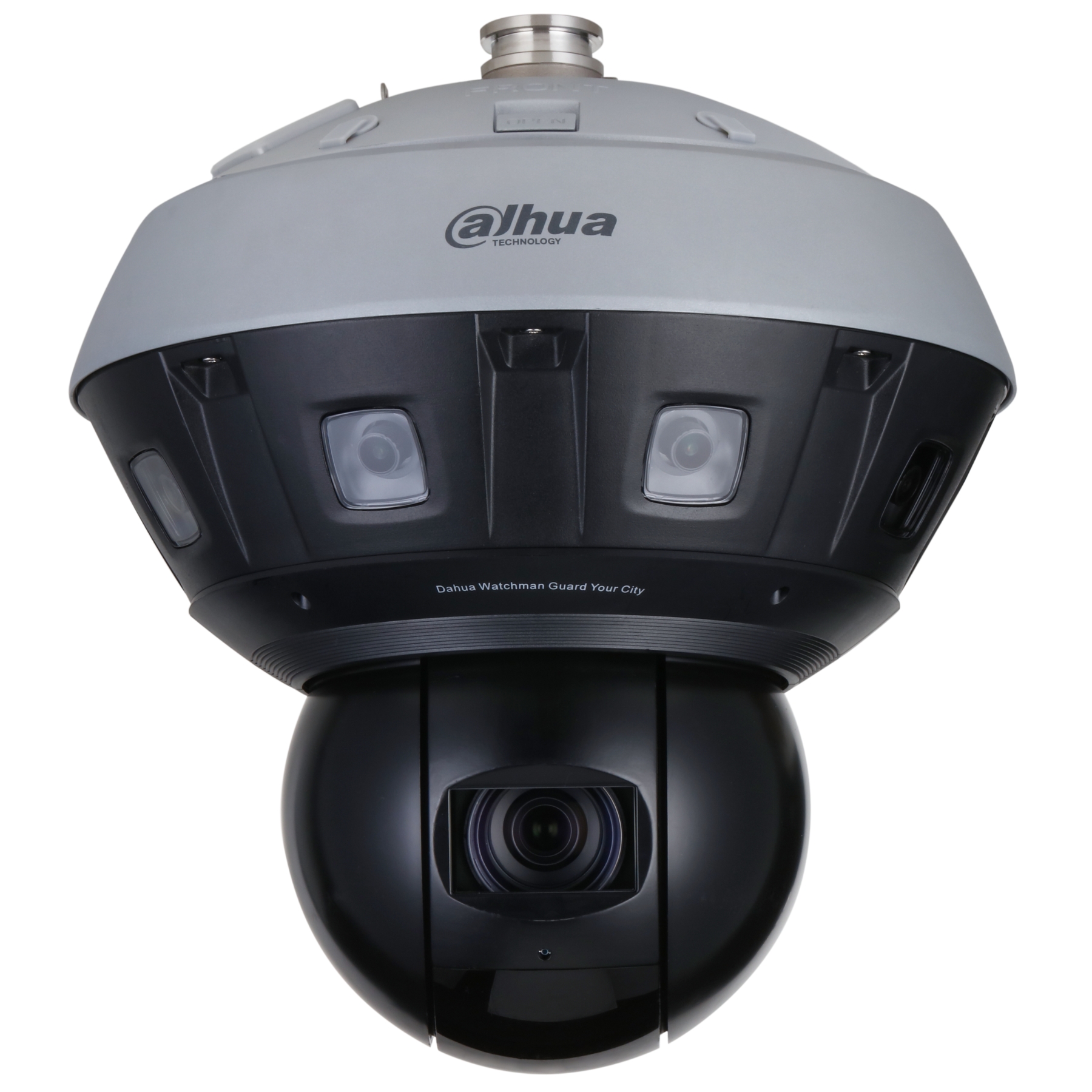

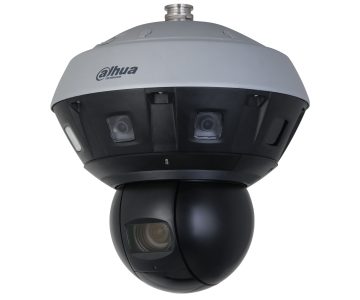

ĀRĒJĀ IP ROTĀCIJU KAMERA PSDW82442M-A270-D440-DC36V-S3 PANORĀMA WizMind – 4 Mpx, 22 Mpx 5.5 … 300 mm, 6 X 2.8 mm DAHUA

Resolution: Kamera PTZ : 2560 x 1440, Panorāmas skata kamera : 8192 × 2700 </span>;>Sensors: Kamera PTZ : 1/1.8 " Progressive Scan CMOS, Panorāmas skata kamera : 6 x 1/1.8 " </span>;>Viewing angle: Kamera PTZ : 61.8 ° … 2.2 ° Panorāmas skata kamera : 270 ° </span>;>Infrared illumination detection area: 400 m </span>;>Image compression method: Smart H.265+ </span>;>Alarm inputs/outputs: 7 / 3 </span>;>Audio: 2 x Ieeja Audio, 2 x Izeja Audio, Divvirzienu audio straumēšanas atbalsts </span>;>Memory card slot: Micro SD card support up to 512GB </span>;>Source of energy supply: 36 V DC </span>; <table>

Standard:
IP
Resolution:
Kamera PTZ :

100 °/s (vertikāli)
Horizontal rotation range:
0 ° … 360 °

Vertical rotation range:
-11 ° … 90 °
RS-485 interface:


Number of presets:
300
Route settings:


Image compression method:
Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG
Alarm inputs/outputs:
7 / 3

Audio:

Panorāmas skata kamera : 25 frame rate @ 22 Mpx
Network interface:
10/100/1000 Base-T (RJ-45)

Memory card slot:
Micro SD card support up to 512GB
WEB Server:
Built-in

Maximum number of online users:
20
ONVIF:


Default IP address:
192.168.1.108
Default username/admin password:
admin / –
Administrator password must be set during first launch

Browser access ports:
80, 37777
Access ports using PC application:
37777

Access ports using the mobile application:
37777
ONVIF socket:
80

RTSP URL:
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream
Intelligent image analysis:

Surge protection
Hull:
Speed Dome, Metal + Plastic

Colour:
Gray + Black
Class of protection:
IP66

Mechanical resistance class:

Source of energy supply:
36 V DC (not included in the package)

Power consumed:
