Resolution: Kamera PT, Kamera 2 : 2880 x 1620
Sensors: Kamera PT, Kamera 2 : 1/3 ”
Viewing angle: Camera PT, Camera 2: 79 °
Infrared illumination detection area: 30 m
LED white light range: 30 m
Image compression method: H.265
Audio: Built-in microphone, Two-way audio streaming support
Memory card slot: Micro SD card support up to 256GB
Source of energy supply: 5V DC
| Standard: | IP |
| Resolution: | Kamera PT, Kamera 2 : 2880 x 1620 – 5 Mpx |
| Sensors: | Kamera PT, Kamera 2 : 1/3 ” Progressive Scan CMOS |
| Lens: | Camera PT, Camera 2 : 3.6 mm |
| Angle of visibility: | Camera PT, Camera 2: 79 ° |
| Optical zoom: | ✗ |
| Digital zoom: | ✗ |
| Infrared illumination reception area: | 30 m @ Camera PT, Camera 2 |
| LED white light range: | 30 m @ Camera PT |
| Horizontal rotation range: | Camera PT: 0° … 349° – Rotation is limited by switch |
| Vertical rotation range: |
|
| RS-485 interface: | ✗ |
| Horizontal scan: | ✗ |
| Route settings: | ✓ |
| Image compression method: | H.265 |
| Alarm inputs/outputs: | ✗ |
| Audio: |
|
| Mainstream transmission speed: | Camera PT, Camera 2 : 15 frame rate @ 5 Mpx |

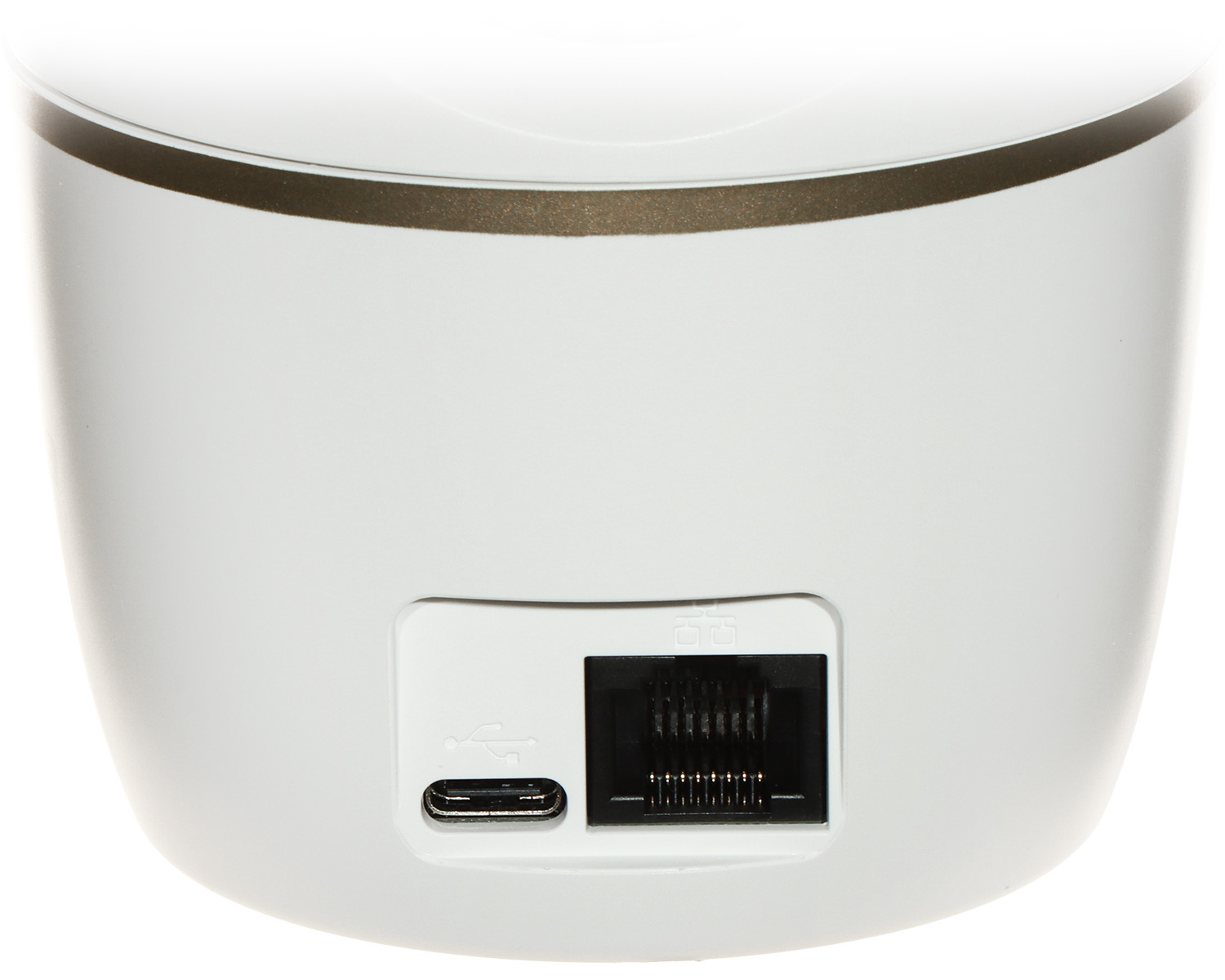

| Network interface: |
|

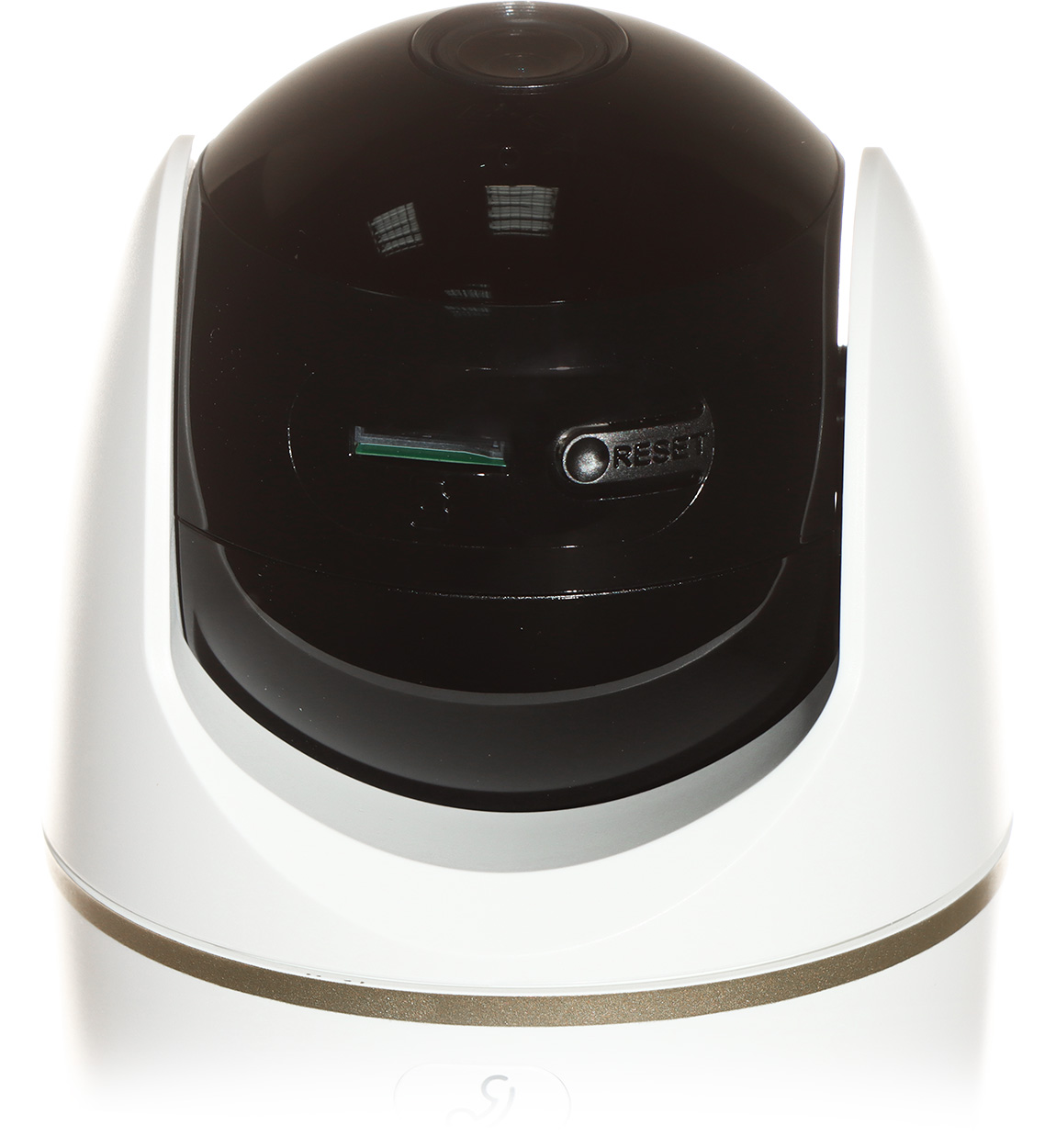

| Memory card slot: | Micro SD card support up to 256GB |
| WEB Server: | ✗ |
| Maximum number of online users: | 20 |
| ONVIF: | ✗ |
| Default IP address: | 192.168.1.108 |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Browser access ports: | ✗ |
| Access ports using PC application: | 37777 |
| Access ports using the mobile application: | 37777 |
| ONVIF socket: | ✗ |
| RTSP URL: | rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream |
| Intelligent image analysis: |
|
| Selected functions: |
|
| Hull: | Mini Speed Dome, Plastic |
| Colour: | White + Black |
| Class of protection: | IP66 |
| Mechanical resistance class: | ✗ |

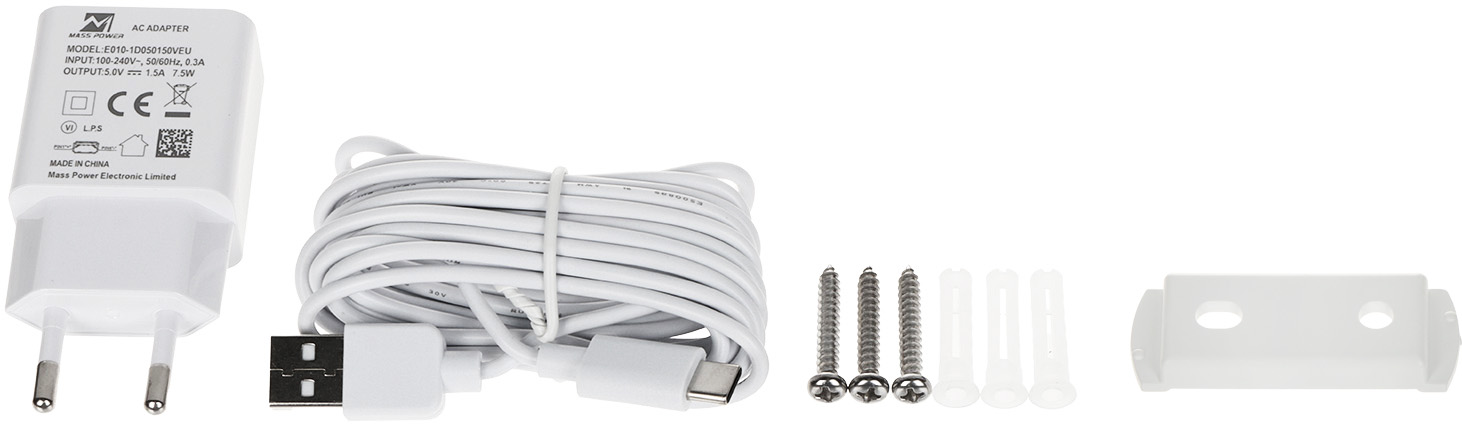

| Source of energy supply: | 5V DC / 1 A (power adapter included) |
| Power consumed: |
|
| Operating temperature: | -10°C … 45°C |
| Weight: | 0.23 kg (with mount) |
| Size: | 81 x 126 mm (with mount) |
| Language selection: | English |
| Manufacturer / Brand: | DAHUA |
| WARRANTY: | 3 years |
