ĀRĒJĀ PT IP ROTĀCIJU KAMERA IPC-PTS1439B-E2-S-PV-0360B Smart Dual Light Active Deterrence – 4 Mpx 3.6 mm DAHUA

Resolution: Kamera PT, Kamera 2 : 2560 x 1440 </span>;>Sensors: Kamera PT, Kamera 2 : 1/3 " </span>;>Viewing angle: Kamera PT, Kamera 2 : 78 ° </span>;>Infrared illumination detection area: 30 m </span>;>LED white light range: 30 m </span>;>Rotation speed (manual control): 0.1 °/s … 55.4 °/s (līmenis), 0.1 °/s … 29.3 °/s (vertikāli) </span>;>Image compression method: Smart H.265+ </span>;>Audio: Two-way audio streaming support </span>;>Memory card slot: Micro SD card support up to 256GB </span>;>Source of energy supply: PoE (802.3af), 12V DC </span>; <table>

Standard:
IP
Resolution:
Kamera PT, Kamera 2 : 2560 x 1440  – 4 Mpx

Sensors:
Kamera PT, Kamera 2 : 1/3 " CMOS
Lens:
Camera PT, Camera 2 : 3.6 mm

Angle of visibility:
Kamera PT, Kamera 2 : 78 °
Optical zoom:


Digital zoom:

Infrared illumination reception area:
30 m @ Camera PT, Camera 2

LED white light range:
30 m @ Camera PT, Camera 2
Preset rotation speed:

Camera 2: -10° … 15° (manual control)
RS-485 interface:


Number of presets:
50
Horizontal scan:


Route settings:

Image compression method:
Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B

Alarm inputs/outputs:

Audio:

iOS (iPhone): Free app DMSS
Mainstream transmission speed:
Camera PT, Camera 2 : 25 frame rate @ 4 Mpx

Network interface:
10/100 Base-T (RJ-45)

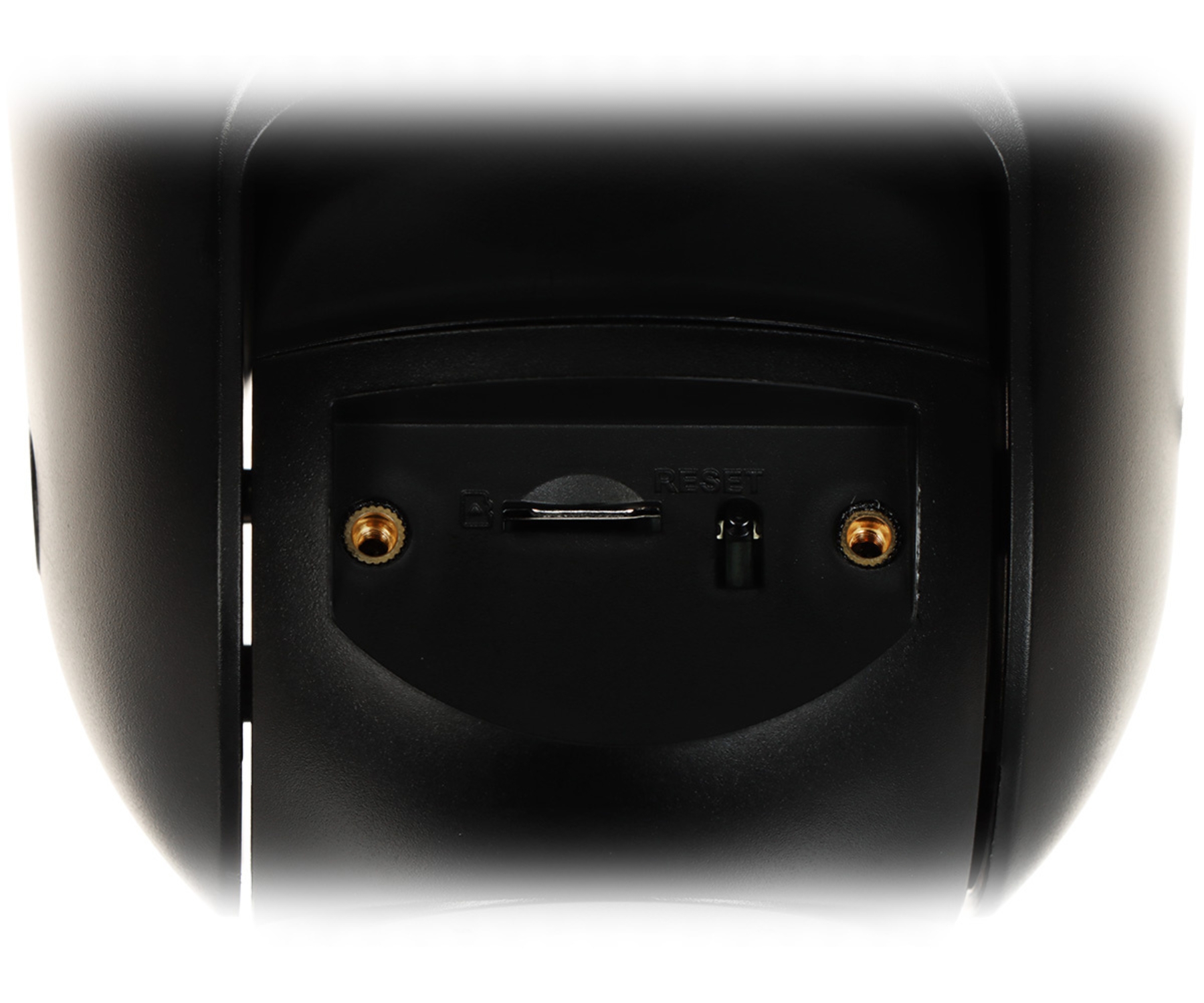

Memory card slot:
Micro SD card support up to 256GB

WEB Server:
Built-in
Maximum number of online users:
20

ONVIF:

Default IP address:
192.168.1.108

Default username/admin password:
admin / –
Administrator password must be set during first launch
Browser access ports:
80, 37777

Access ports using PC application:
37777
Access ports using the mobile application:
37777

ONVIF socket:
80
RTSP URL:
rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sidestream

Intelligent image analysis:

Iestatījumu atmiņa pēc strāvas padeves pārtraukuma

Hull:
Mini Speed Dome, Plastic
Colour:
White + Black

Class of protection:
IP66
Mechanical resistance class:


Source of energy supply:
