ASPEN FP3326 SILENT MINI AQUA CONDENSATE PUMP
ASPEN SILENT3 MINI26 pump MINI26 AQUA — key features:
- exceptionally flat shape
- fits easily into even the smallest space = installation flexibility
- high engine efficiency
- unique acoustic muffler designhigh efficiency - up to 14 liters
- small size
Purpose and functions of the ASPEN FP3326 pumpSILENT MINIv2>vdi.vdi> “>
- Aspen mini Aqua Silent+ A condensate pump is a device used in air conditioning systems, particularly well suited for divided or multisplit air conditioners and some cooling solutions, and its main function is to extract and remove the heat that is determined by the cooling process.
- Aspen mini Aqua Silent+ A condensate pump is a device used in air conditioning systems, particularly well suited for divided or multisplit air conditioners and some cooling solutions, and its main function is to extract and remove the heat that is determined by the cooling process.
Condensate pump ASPEN Silent+ Mini Aqua isa modern device characterized by several advanced ventilation and air conditioning systems >Pump ASPEN Silent+ Mini Aqua is designed with space saving in mind. Its ultra-flat shape allows it to fit even in the smallest spaces. This ensuresflexibility in terms of installation, which is especially important when installation space is limited. Silent+ Mini Aqua isa great choice for places where quiet air conditioning is key, for example in conference rooms, offices or other environments where acoustic comfort is a priority. Its technologies make it a reliable, quiet and modern device in its class: thanks to the high motor efficiency and the unique acoustic muffler design, the pumpASPEN Silent+ Mini Aqua considered the quietest on the market. This is important wherever quiet air conditioning is needed, such as in conference rooms or offices.
ASPEN FP3326 SILENT+ MINI AQUA — the latest technological solutions and a range of advanced features

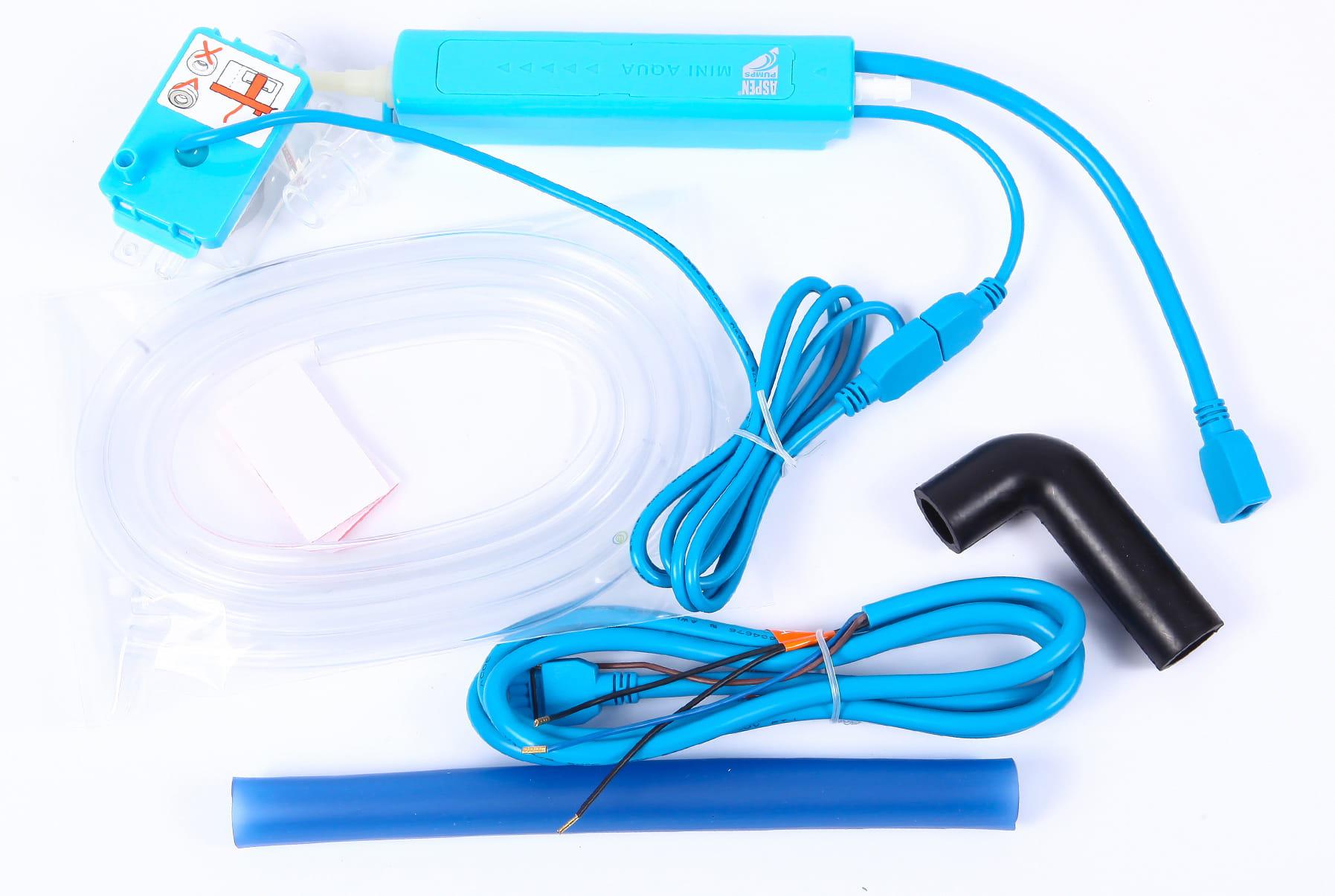

Set content - see what you're buying:
- condensate pump ASPEN FP3326 SILENT MINI AQUA
- tank(with filter, float, lid)
- acoustic silencer
- light blue 1m exhaust pipe with connector
- anti-vibration mount
- vinyl ventilation pipe– 150 mm, diam. ext. 6 mm
- anti-siphon system
- 1.5 m deaeration suction hose, diam. ext. 6 mm
- blue inlet hose 220 mm, diam. ext. 14 mm
- set of gutter connections
- fixture set
- installation instructions
(b.1.) “5. & Play”)
ASPEN SILENT+ MINI AQUA condensate pump – specification and technical data:
- Maximum flow: 12 l/h.
- Maximum flow height 6.bli: : 21 dB(A) at 1 m
- Operating mode: Continuous
- Class: II
- Maximum device power: 16 kW / 54,000 Btu / h
- Maximum temperature 4 °C / b> 104 °F
- Exhaust pipe: inner diameter 6 mm
- Pump dimensions: height 51 mm / width 116 mm / length 39 mm
- Float dimensions: height 34 mm / width 80 mm / length 39 mm
- Self-priming: yes
- Overheating protection: yes
- Power supply: 230 V AC, 0.11 A, 16 W 50/60 Hz
Proli.2: IP24
internal 6 mm
