ATS SKAM2/5 pole for installing video surveillance cameras
Expenses
– the pole is prepared for installation

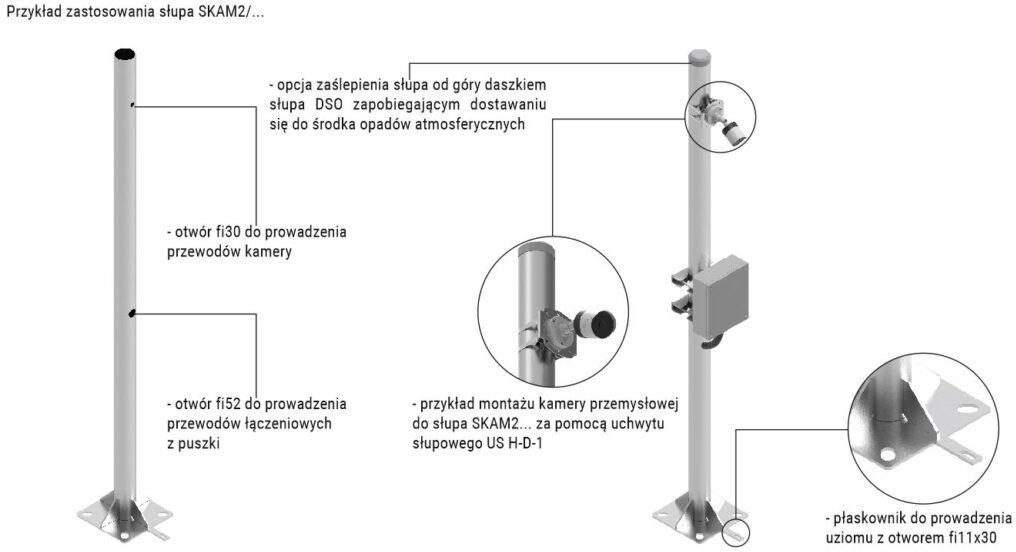

– the pole has a flat rod with a longitudinal Ø11 hole for grounding
.- podłużne otwory w podstawach słupów enablingją montage słupów do fundamentów prefabrykowanych z rozstawem trzpieni w przedziale 180-205 mm
– słup posiada otwór Ø52 do wprowadzenia przewodów do puszki łączeniowej
– słup posiada otwór Ø52 do wprowadzenia przewodów do puszki łączeniowej
– possibility of installing the pole on a prefabricated base FP
– cameras or lighting can be mounted non-invasively with UKAM brackets… or USA…
ADDITIONAL INFORMATION
– for orders of 50 or more units, it is possible to manufacture poles according to customer specifications, e.g. manufacturing special holes for mounting cameras with installed rivet nuts, manufacturing poles of special lengths
– it is possible to make holes for camera cables on three sides of the pole

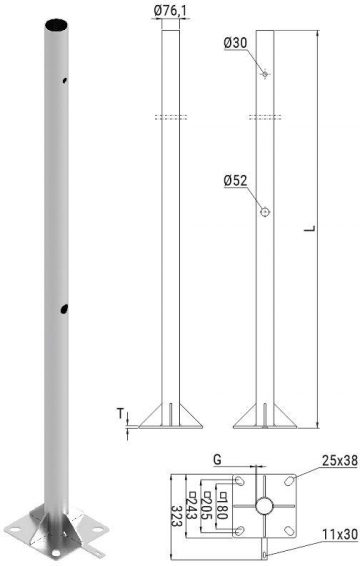

Table
| SYMBOL | LENGTH L[mm] | Wall thickness G[mm] | Base thickness T[mm] | CAT NUMBER. | SKAM2/3 | 3000 | 2 | 6 | 704 | 704 |
| SKAM2/4 | 4000 | 2 | 6 | 705 | .tr> | SKAM2/5 | 5000 | 3 | 8 | 706 |
Application

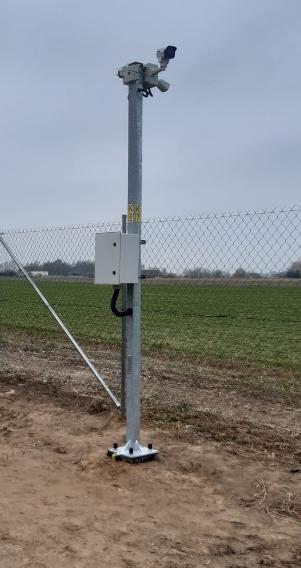

– installation of video surveillance cameras on photovoltaic farms,
– installation of video surveillance cameras in public places,
– lighting installation
Material:
– S235 steel grade, hot-dip galvanized according to EN ISO 1461:2011,
upon request:
– painted in any RAL color
Delivery time:
5-7 business days from order date
Production technology:
according to EXC2 -zg. according to PN-EN1090
