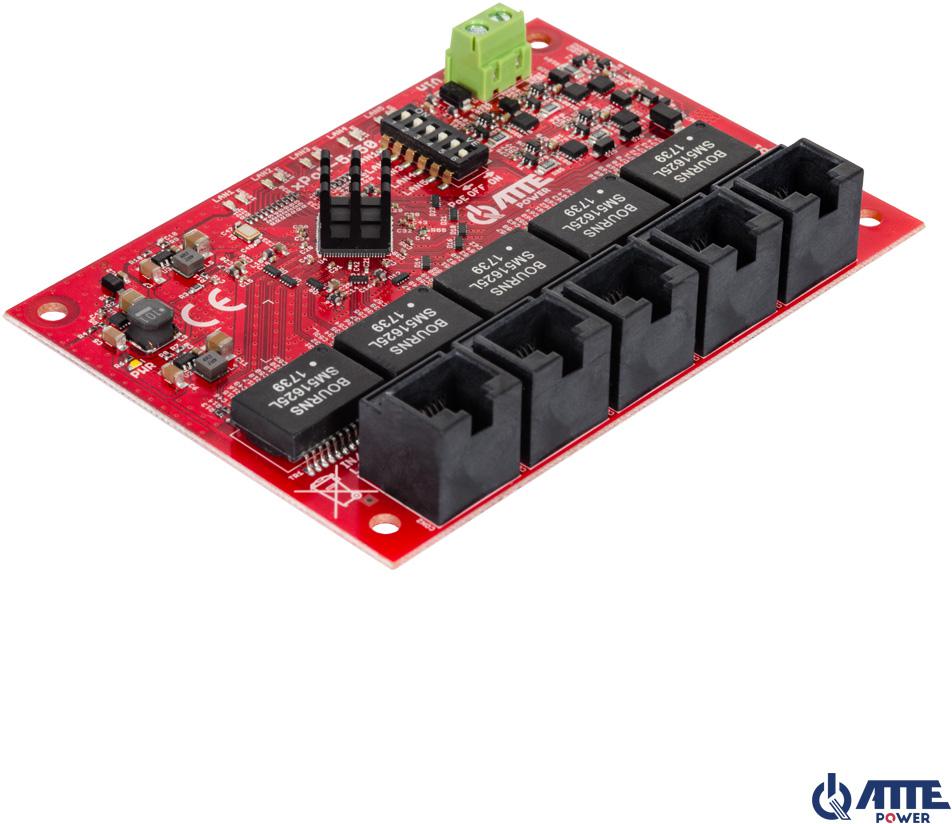

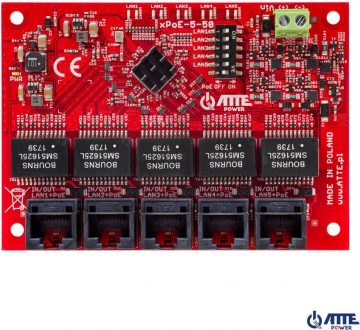

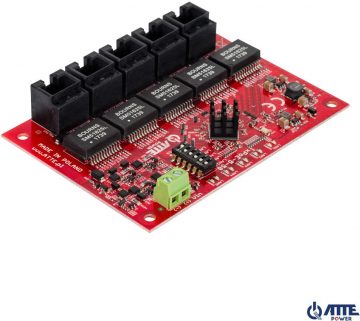

5-PORT POE SWITCH ATTE xPoE-5-50-OF
Key features:
- enables the construction of a 100 W PoE “bus” (with cascading). xPoE-5-50 powers another)
- 5 Gigabit 10/100/1000 Mb/s ports
- PoE power supply on all pairs = less voltage drop (energy loss) on the PoE bus
- ability to power up to 5 PoE 802.3atseries of bars and expanders
- dependent electronic fuses for each PoE channel (automatic return)
- ability to turn off power to selected PoE ports
- easy and quick start-up without the need to configure parameters
- very low energy consumption (<2 W)
=”
src=”https://allegro2.eltrox.pl/zdjecia/25945/switch_5portowy_poe_atte_xpoe550of_f53c483448edb.jpg” alt=”” loading=”lazy” />
PoE a power supply bus (branch) with a large power budget (until 100W) and high bandwidth (Gigabit Ethernet). Electronic protection of PoE outputs ensures the continuity of the entire system in the event of a short circuit or overload of individual power supply branches, as well as automatic voltage restoration after the failure is stopped. The device is used in systems that require increased network bandwidth, for example, video surveillance 4K Ultra HD.
OF (Open Frame) design allows the device to be installed in any housing, but the most convenient way to install it is in specially designed ABOX series housings and mounting plates, equipped with special holes in a 10.8 mm grid. This is compatible with the mounting hole spacing of the built-in modules. The system solution allows you to install the selected devices vertically or horizontally in any part of the housing or mounting plate that is filled with holes.
