| Standard: |
TCP/IP |
| Sensors: |
1/3” Progressive Scan CMOS |
| Matrix size: |
5 Mpx |
| Scanning system: |
Progressive |
| Resolution: |
2592 x 1944 – 5 Mpx , 2560 x 1440 – 3.7 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 720 – 720p |
| Lens: |
2.8 mm |
| Viewing angle: |
90 ° (ražotāja dati) 71 ° (mūsu pārbaudes) |
| Infrared illumination detection area: |
30 m |
| RS-485 interface: |
- |
| Memory card slot: |
- |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs: |
- |
| Audio: |
Built-in microphone Audio signal transmission over the network Sound detection |
| Main stream transmission speed: |
25 frames per second @ 5 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4 IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP |
| WEB Server: |
Built-in |
| Maximum number of online users: |
4 |
| ONVIF: |
- |
| Mobile phone access: |
Cloud access (P2P) Android: Free BCS Manager app iOS (iPhone): Free BCS Manager app |
| Default IP address: |
DHCP or 192.168.1.13 |
| Default username/admin password: |
admin / 123456 |
| Browser access ports: |
80, 554 |
| Access ports using PC application: |
Port: 80 or access via cloud |
| Access ports using the mobile application: |
80 |
| ONVIF port: |
80 |
| Selected features: |
D-WDR – Plašs apgaismojuma dinamikas diapazons 2D-DNR, 3D-DNR – Digitāla trokšņa redukcija F-DNR (Defog) – Ar atmosfēras nokrišņiem saistīto trokšņu redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana BLC/HLC – fona / spēcīgas gaismas kompensācija Iespēja mainīt izšķirtspēju, kvalitāti un bitu pārraidi Privātuma zonas – maks. 4 Kustības detekcija – maks. 4 zonas Sharpness – Attēla kontūru asums |
| Source of energy supply: |
PoE (802.3af), 12 V DC / 380 mA |
| Power consumption: |
≤ 4.5W |
| Housing: |
Compact – Plastic + Metal |
| Colour: |
White + Black |
| Protection class: |
IP67 |
| Operating temperature: |
-30°C … 60°C |
| Weight: |
0.18 kg |

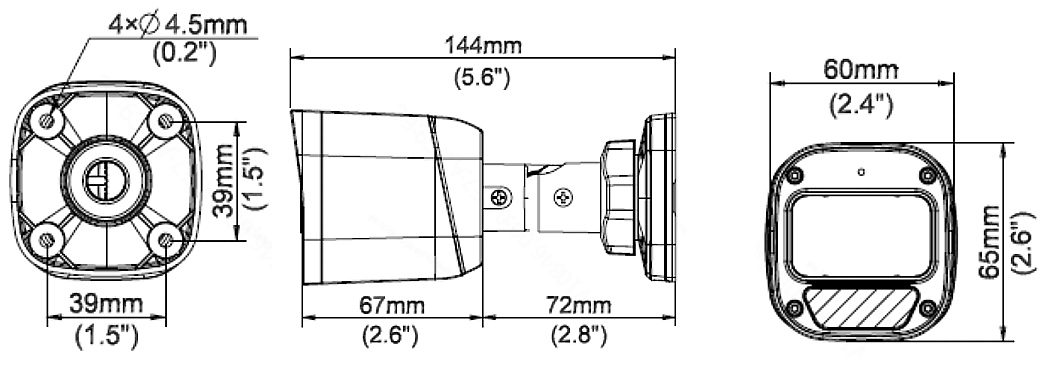

| Size: |
142 x 62 x 65 mm |
| Language selection: |
Polish, English |
| Manufacturer / Brand: |
BCS BASIC |
| Warranty: |
2 years |
