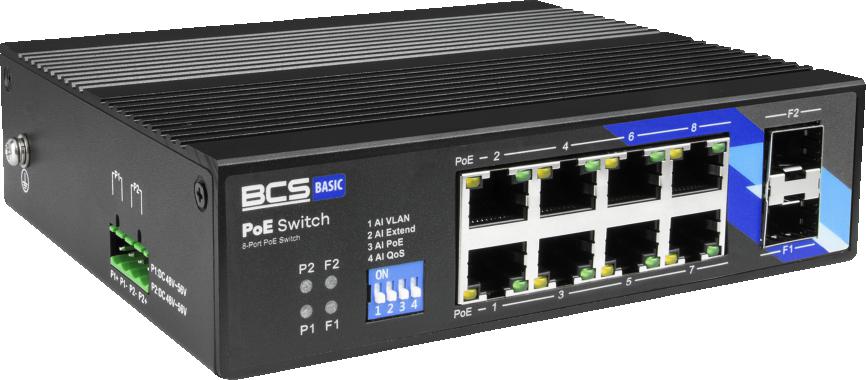

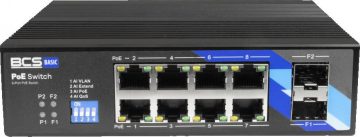

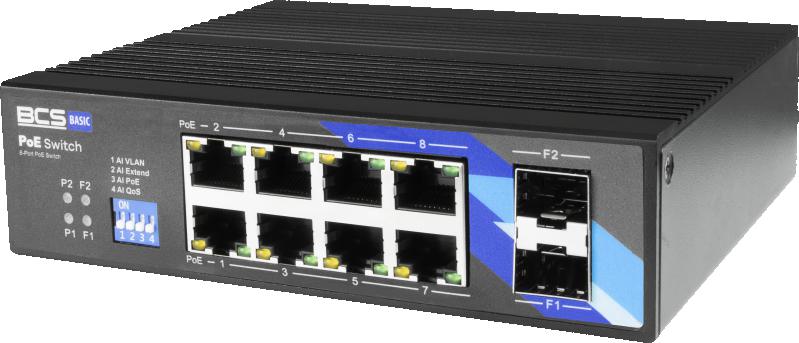

Switch PoE BCS BASIC BCS-B-ISP08G-2SFP
Key features:

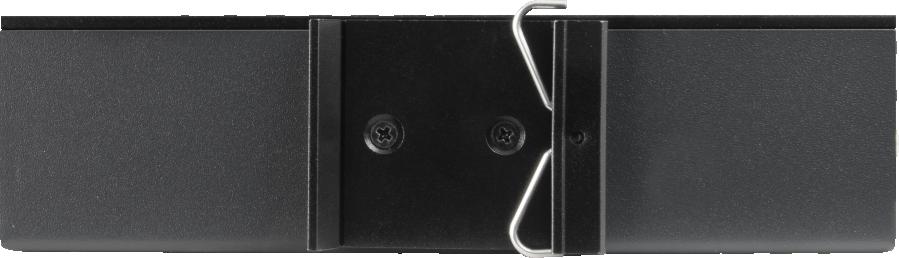

- 8 portu industriālais PoE slēdzis DIN sliedei
- 8bPoE af/at
- Technologies exPoE
- 2xSFP augšupsaite 1Gb/s
- Kopējā jauda 200W
- Standard/VLAN/Extend/Qos/PoE modes
- The kit does not have a power supply.
| Device name | BCS-B-ISP08G-2SFP | ||
| Product line | BCS BASIC | ||
| RJ4tps.5 d> Ports uplink | 2 × SFP 1Gbps | ||
| IEEE standard | 802.3 / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at | ||
| packet forwarding | 14,8 Mpps | ||
| Bandwidth | 20 Gb/s | 4td Atmiņa paketes | 2Mbit |
| STANDARD mode | 100 m | ||
| VLAN mode | VLAN režīms Porti 1-8 ir izolēti viens no otra | ||
| PAPLAŠINĀT režīms līdz 0 režīms EXTEND 8 ps (cat5e,cat6) | |||
| LED status | LINK/ACT (green): Device connected, PoE (yellow): Device powered by PoE | ||
| PoE switch power | 250W | ||
| Aizsardzība (±kV) > | (k) ±15kV (gaiss), (EFT): Strāvas pieslēgvieta: ±4kV; Datu pieslēgvieta: ±2kV, (pārsprieguma): barošanas pieslēgvieta: ±2kV/DM, ±4kV/CM; Datu pieslēgvieta: ±6kV | ||

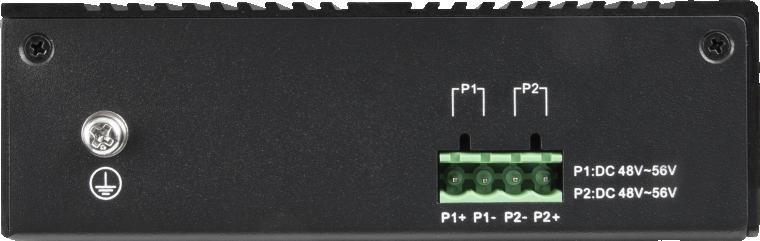

| Power supply | 48~56V DC | ||
| Operating conditions | -40°C~+70°C max 90% RH | ||
| Svars/tdr> | kg >DIN sliedei | ||
| Dimensions (W × D × H) | 150 × 127 × 40mm |
