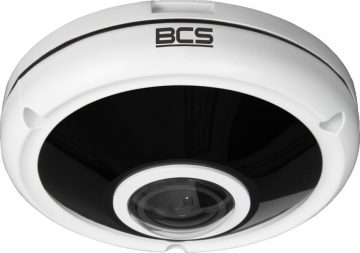

BCS FLEX BCS-F-FIP55FR2 kamera
Key features:
- 5Mpx IP camera
- 1/1,8″ PS CMOS sensors
- NDAA compliant
- 1,55 mm Zivju acs objektīvs
- 20 m IR
- 1/1 signalizācija, 1/1 audio
- IP66 housing
Specification 2. td>Ierīces nosaukums
BCS-F-FIP55FR2
Product line
BCS FLEX
NDAA
State Protection Permit Act
Type td>
5 Mpx
Sensor
1/1.8” CMOS
Scanning system
Progressive Scan
Pixels
2592(H)×1944(V)
Lens
Fixed
Focal length
1.55 mm
Aperture
F2.5
Focus
Fixed
Iris
Fixed
Viewing angle
H: 185° V: 185° D: 185°
Camera sensitivity
0,39 Lux (F2.5) 0Lux (IR)
S/n ratio
50db
white balance
(awb) Car/td>
Light compensation
dwdr
shutter
Auto/Manual 1/15 ~ 1/32000s
YEARLY CONTROL (Agc) Auto/td>
No.
Image Flip
mirror, Flip
Number of streams
3
Resolutions
5 M (2592 × 1944) / 3 M (2048 × 1536) / 2 M (1600 × 1536) / 2 M (1600 × 1200) / (1600 × 1200) / 1 × 1 × 768) / (800 × 600) / VGA (640 × 480) / VGA (640 × 360) / (480 × 360) / CIF (384 × 288/352 × 240) / (320 × 240)
Straume Galvenais
2592 × 1944 (1–25 kadri sekundē)
Bit rate
100 Kb/s ~ 10 Mb/s
Video compression
H.265 H.265+ / H.26P4/H.26P4 >
Day/night
ICR mechanical infrared filter
Illuminator type
IR LEDs
Illuminator
20 m
Audio ieeja/
audio
1
Sound compression
G.711ulaw
Alarm input
1
Signal output
1
Motion detection
4
Privacy masks
16
16>
Compatibility
ONVIF
Protocols
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DMPVMP1/SNTP, 2)
Strāvas padeves veids
12VDC/PoE(802.3af)
Energy consumption
maks. 8.7 W
Body color
White
IP protection class
IP66
Operating conditions
-20°C~+50°C><50°C maks. 90% mm
Weight
0.5 kg
td>Atbalsts
web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android)
