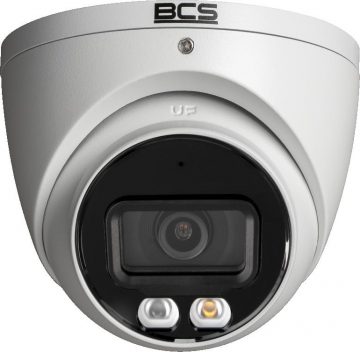

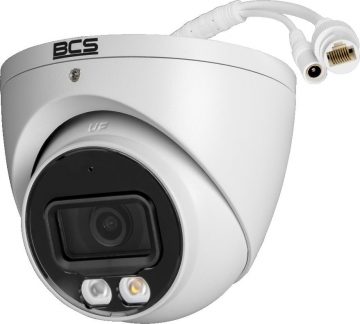

BCS-L-EIP14FCR3L3-Ai1 BCS Line IP dome camera 4Mpx IR 30M

* The appearance of the product may differ from what is shown in the picture

BCS-L-EIP14FCR3L3-Ai1 BCS Line IP dome camera 4Mpx IR 30M

Name: BCS-L-EIP14FCR3L3-Ai1 BCS Line IP dome camera 4Mpx IR 30M
SKU: 54065
Availability: InStock

Product code: 54065

EAN: 5904890713161

Piegādes laiks: 8-10 Janvārī

Estimated Delivery Dates

137,83 €

Availability: 3

Apraksts
Additional information

BCS-L-EIP14FCR3L3L3-Ai1 BCS Line IP dome camera 4Mpx IR 30M

Main features

4Mpx IP Camera Camera
Processor 1/2.9″ PS CMOS
NightColor technology
WDR120dB
Fixed lens 2.8 mm
IR 30 m, WhiteLight 30 m
Microphone
Housing IP67
Built-in smart features

.BCS Manager mobile application

BCS Manager is a free IP CCTV application for Android and iOS mobile phones. It allows you to view BCS brand NVR/XVR devices.

BCS Manager works in both local Wifi and GSM networks. Allows you to connect to devices exposed to the Internet using a fixed IP address or using the BCS P2P cloud service (the BCS P2P cloud service requires appropriate device preparation).

Technical specification

.tr>

.td>4.

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour

.td>Operating conditions

Ai – Object Recognition

Product name	BCS-L-EIP14FCR3L3-Ai1
Product line	BCS LINE
Camera type
Camera type
Copular
Resolution	4 Mpx
Processor	1/2.9” CMOS
Scanning system	Progressive scan
Scanning system./tr>
Pixels	2688(H)×1520(V)
RAM
Category/td>	128MB
ROM	128MB
Lens	fixed
Focal length	2.8 mm
Aperture	F1.6
Focus	Fixed
Iris	Fixed	Fixed	Focus
Digital zoom	16×
Viewing angle	H: 95° W: 52° D: 114°
DORI	Detect 64 m / Observe 25 m / Recognize 13 m / Identify 6 m	Image>	Image>	Image>	Recognize 64 m / Observe 25 m / Recognize 13 m/td>
Camera sensitivity	0.006Lux (color, F1.6, 30IRE) 0.0006Lux (monochrome, F1.6, 30IRE) 0Lux (IR)
Contact S/N	56dB
White balance	(AWB) Automatic / Manual
WDR	120dB
Background compensation	BLC/HLC/WDR (120dB)
Switch switch	Auto/Manual 1/3~1/100000s
Gain control	(AGC) Automatic/Manual
.Noise reduction	3D DNA
Exceptional rotation	.Mirror image, rotation 0°/90°/180°/270°
Number of streams	2
Results	4M (2688×1520), 2560×1440 / 3M (2304×1296) / 2M (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240)
Mainstream	.2688×1520 (120 fps) 2560×1440 (125/30 fps)
Secondary stream	.td>704×576 (125 fps) 704×480 (130 fps)
Bitrate	H.264: 32 Kb/s6144 Kb/s H.265: 12 Kb/s6144 Kb/s
Video compression	H.265 / H.265+ / H.264 / H.264 / H.264+ / MJPEG
Day/night	ICR mechanical infrared filter
Illuminator type	IR LED+ white light
.Illuminator	30m
Night coloring	Yes
Microphone	Is
Audio compression	G.711A / G.711Mu / G.726 / PCM
Storage	FTP, SFTP

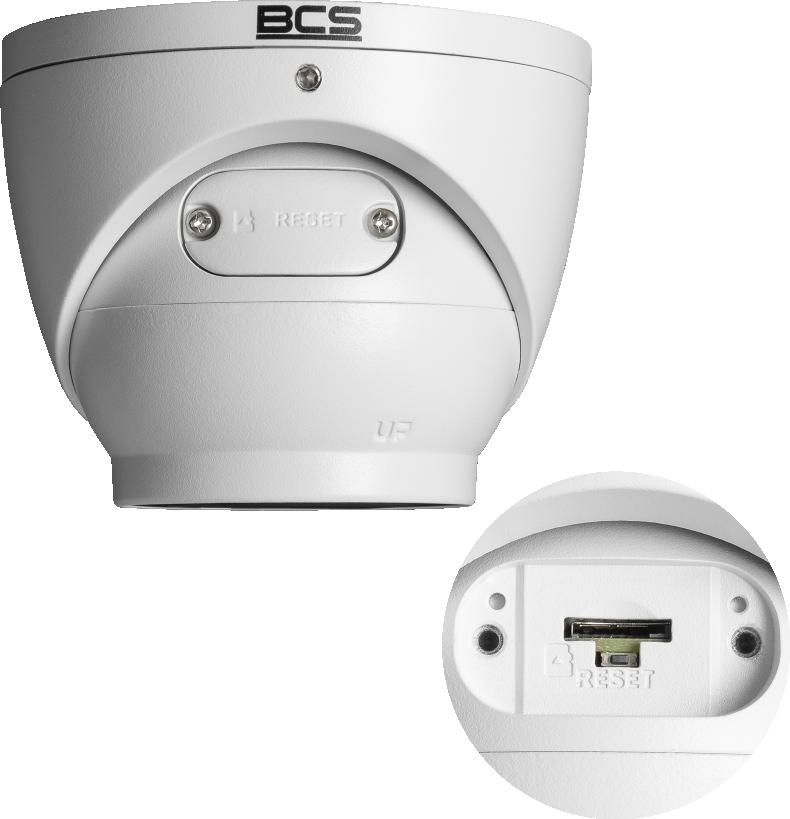

Memory card slot	microSD 256 GB
Service
Memory card slot	MicroSD 256 GB
Web Service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android)
Motion detection	4
Privacy masks
Network	RJ-45 10/100Mbps
Compatibility	ONVIF (S/G/T)
Protocols	./td>
Power type	12VDC / PoE (802.3af)
Floor consumption	max 5.2 W
Color of the layer	white
IP category	IP67
-40°C~+55°C, max. 95% relative humidity
.Dimensions	Ø106×94 mm
Weight	0.39 kg
Ai – built-in intelligent functions	Built-in intelligent image recognition and analysis algorithms
Ai – Perimeter Protection	In the breakout zone, crossing the line
Ai – Object Recognition	Ai – Object Recognition/td>	Person/vehicle detection in intrusion area, line crossing reduces false alarms
Ai – SMD – Intelligent Motion Detection	SMD Plus

Additional information

Svars	1,0000 kg
Manufacturer	BCS
Technology	IP
Resolution	4MP
Camera type	Eyeball/Turret
PoE	PoE
Connectivity technology	Wired
Lens type	Fixed
Lens size (mm)	2.8mm
Lighting distance (m)	30 m
Alarm input/output	1 / 2
Memory card support	PoE enabled
Camera colour	White
