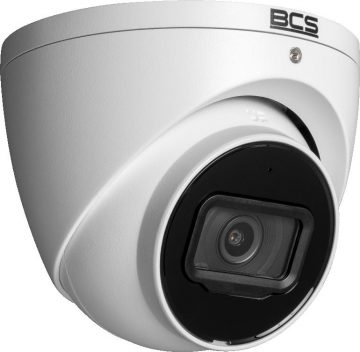

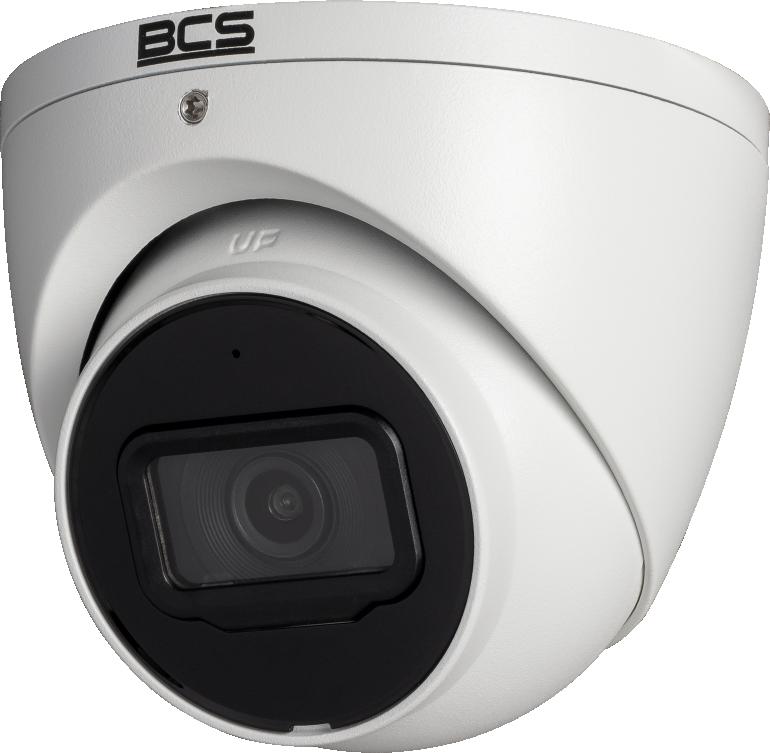

BCS-L-EIP14FSR3-AI1 BCS Line IP dome camera 4Mpx IR 30M

* The appearance of the product may differ from what is shown in the picture

BCS-L-EIP14FSR3-AI1 BCS Line IP dome camera 4Mpx IR 30M

Name: BCS-L-EIP14FSR3-AI1 BCS Line IP dome camera 4Mpx IR 30M
SKU: 38760
Availability: OutOfStock

Preces kods: 38760

EAN: 5904890708693

Piegādes laiks: 8-10 Janvārī

Estimated Delivery Dates

126,47 €

Availability: 0

Apraksts
Additional information

BCS-L-EIP14FSR3-AI1 BCS Line IP dome camera 4Mpx IR 30M

Main features

4Mpx IP Camera Camera
Processor 1/2.9″ PS CMOS
SkyLight technology
Fixed lens 2.8 mm
WDR120dB
IR 30 m
Microphone
Installation IP67
Built-in smart features
Functions to be performed

BCS Manager mobile application

BCS Manager is a free version of the BCS Manager application for IP CCTV systems, designed for Android and iOS mobile phones. It allows you to view BCS brand NVR/XVR devices.

BCS Manager works in both local Wifi and GSM networks. Allows you to connect to devices exposed on the Internet using a fixed IP address or BCS P2P cloud service (BCS P2P cloud service requires appropriate device preparation).

Technical specification

.tr>

.td>Operating conditions

Device name	BCS-L-EIP14FSR3-Ai1
Product line	BCS LINE
Camera type
Camera type
Copular
Resolution	4 Mpx
Processor	1/2.9” CMOS
Scanning system	Progressive scan
Scanning system./tr>
Pixels	2688(H)×1520(V)
RAM
Category/td>	128MB
ROM	128MB
Lens	Fixed
Focal length	2.8 mm
Aperture	F1.6
Focus	Fixed
Iris	Fixed	Fixed	Focus	Fixed/td>
Digital zoom	16×
Viewing angle	H: 95° W: 52° D: 114°
DORI	Detektēt 64 m/ Novērot 25 m/ Atpazīt 13 m/ Identificēt 6 m	Dzālis: 114°
Camera sensitivity	0.008Lux(Color,F1.6,30IRE) 0.0008Lux(B/W,F1.6,30IRE) 0Lux(IR)
S/N ratio	56dB
.tr>	White balance	(AWB) Automatic / Manual
WDR	120dB
Background compensation	BLC / HLC / WDR(120dB)
Slēdžsvītra	Automātiskā / manuālā 1/3~1/100000s
Gain control	(AGC) Automatic/Manual
.Noise reduction	3D DNA
Exceptional rotation	.Mirror image, rotation 0°/90°/180°/270°
Number of streams	2
Results	4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
Main stream	2688×1520(120fps) 2560×1440(125/30fps)
Secondary stream	704×576(125 kadri sekundē) 704×480(130 kadri sekundē)
Bitrāts	H.264: 32 Kb/s6144 Kb/s H.265: 12 Kb/s6144 Kb/s
Video compression	H.265 / H.265+ / H.264 / H.264 / H.264+ / MJPEG
Day/night	ICR mechanical infrared filter	Day/night
Illuminator type	IR LEDs
Illuminating luminaire	30m
.Microphone	Yes
Audio compression	G.711A / G.711Mu / G.726 / PCM
Memory card slot	microSD 256GB
Service	Web pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS, android)		Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, android)
Motion detection	4
Privacy masks	4
Network	RJ-45 10/100Mbps
.Savietojamība	ONVIF(S/T)
Protocols
Protokoli.td>IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP	./td>
Delivery method	12VDC / PoE(802.3af)
Elektropadeves patēriņš	max 5.1 W
Color of the layer	white
IP category	IP67
-40°C~+60°C, maks. 95 % relatīvā mitruma
.Dimensions	Ø106×94 mm
Weight	0.39 kg
Ai – built-in smart features	.Built-in intelligent image recognition and analysis algorithms
Ai – Perimeter Protection		.Perimeter intrusion, line crossing
Ai – Object Recognition	Recognition of persons/vehicles in case of perimeter intrusion or line crossing reduces the triggering of false alarms.
Ai – SMD	SMD Plus
