| Standard: |
TCP/IP |
| Sensors: |
1/2.7” Progressive Scan CMOS |
| Matrix size: |
5 Mpx |
| Resolution: |
2960 x 1668 – 5 Mpx , 2880 x 1620 – 4.7 Mpx , 2688 x 1520 – 4 Mpx , 2560 x 1440 – 3.7 Mpx , 2048 x 1536 – 3 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p |
| Lens: |
2.7 … 13.5 mm – Motozoom |
| Viewing angle: |
99 ° … 28 ° (ražotāja dati) 106 ° … 34 ° (mūsu pārbaudes) |
| Compression: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI Coding |
| Infrared illumination detection area: |
60 m |

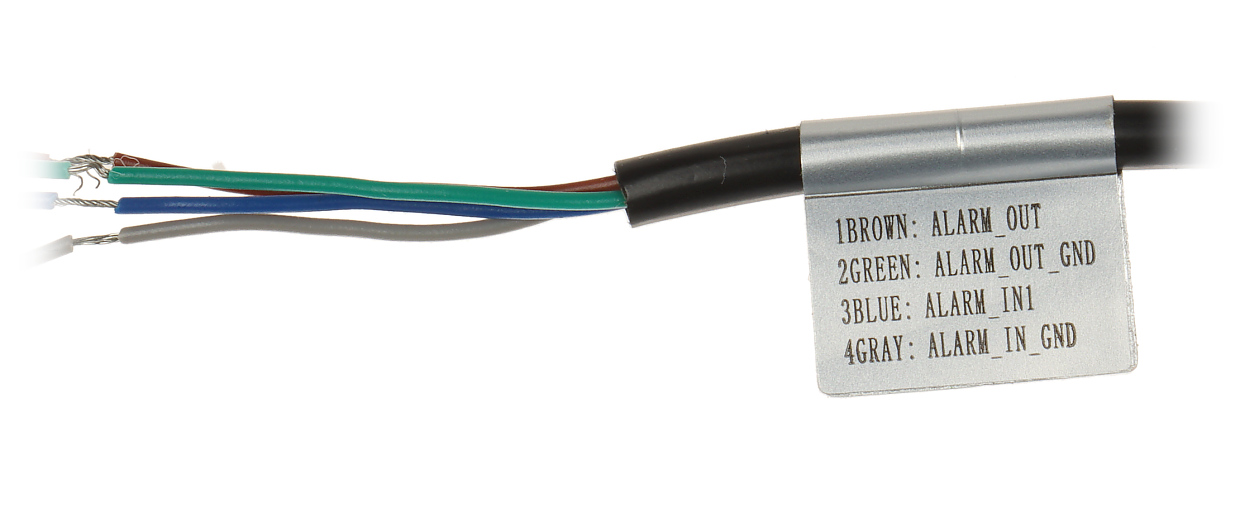

| Alarm inputs/outputs: |
1 / 1 |
| Main stream transmission speed: |
20 frames per second – 5 Mpx 25 frames per second – 4 Mpx |

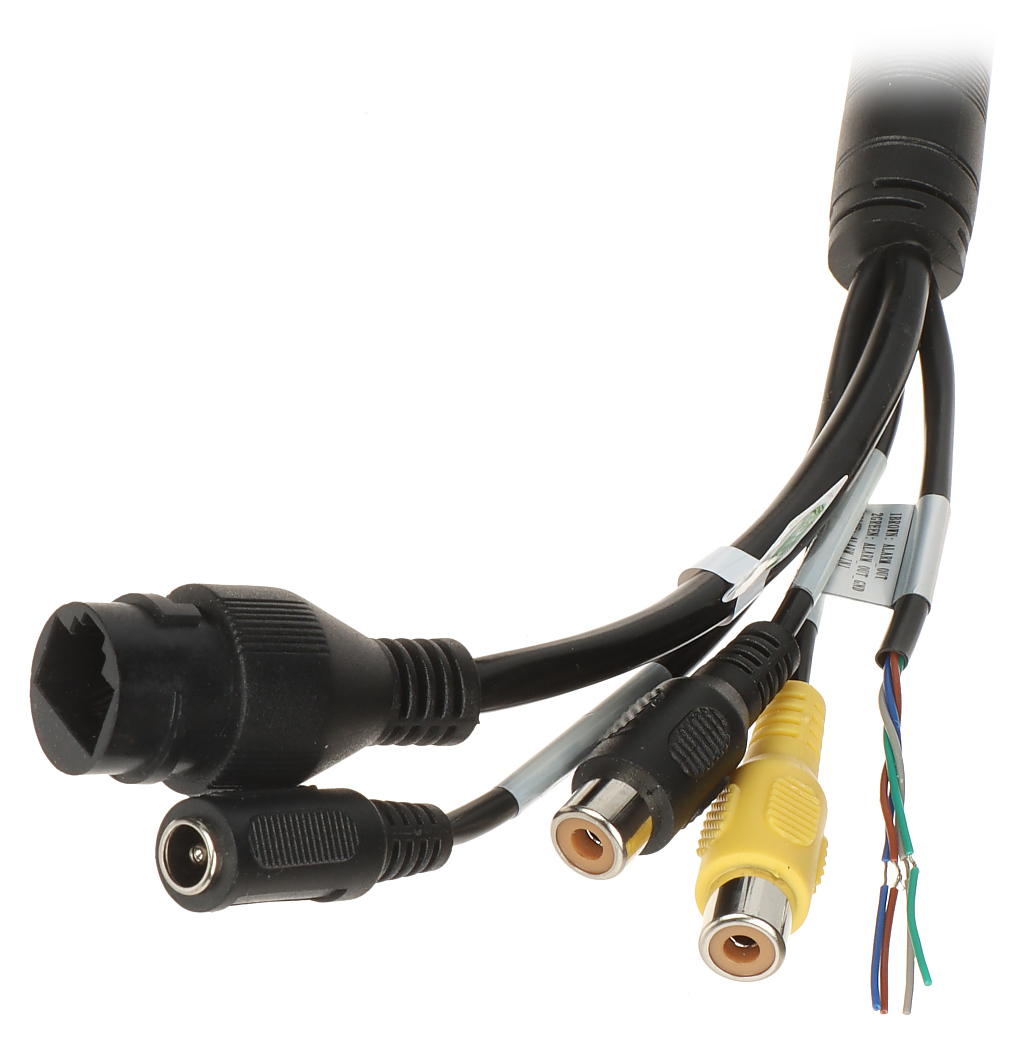

| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Audio: |
External microphone input Audio output Two-way audio streaming support Sound detection |
| WEB Server: |
Built-in |

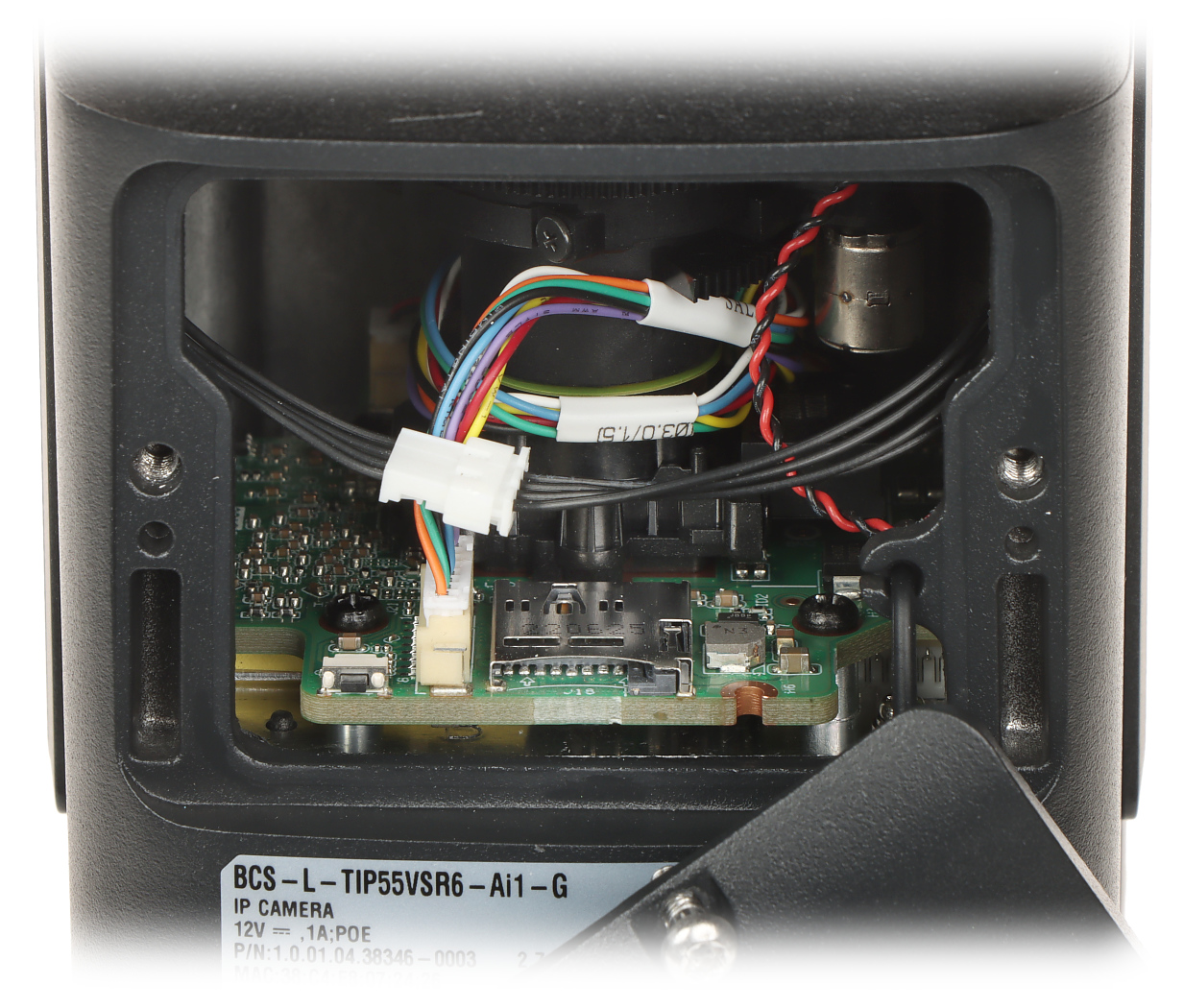

| Memory card slot: |
Supports Micro SD memory cards up to 256GB (local recording possible) |
| Maximum number of online users: |
20 |
| ONVIF: |
- |
| Mobile phone access: |
Port: 37777 or cloud access Android: Free BCS Manager app iOS (iPhone): Free BCS Manager app |
| Default IP address: |
192.168.1.108 |
| Default username/admin password: |
admin / – Administrator password must be set during first launch |
| Browser access ports: |
80, 37777 |
| Access ports using PC application: |
37777 |
| Access ports using the mobile application: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
Galvenā plūsma : rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 Blakus plūsma : rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 |
| RS-485 interface: |
- |
| Selected features: |
WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana BLC – atpakaļgaismas kompensācija HLC – Intensīvas gaismas kompensācija (punktveida) Dienas/nakts režīms ICR – infrasarkano staru mehāniskais filtrs Automātisks baltā balanss AGC – Automātiska attēla pastiprinājuma regulēšana Mirror – spoguļattēls Konfigurējams: spilgtums, kontrasts, piesātinājums Sharpness – Attēla kontūru asums Konfigurējamas privātuma zonas Inteliģenta attēla analīze : ielaušanās , līnijas šķēršošana , inteliģenta kustību noteikšana (nodalot personas no transportlīdzekļiem) |
| Source of energy supply: |
PoE (802.3af) , 12 V DC / 820 mA |
| Power consumption: |
≤ 8.5 W @ PoE (802.3at) ≤ 7.4 W @ 12 V DC |
| Housing: |
Compact, Metal |
| Colour: |
Black |
| Protection class: |
IP67 |
| Operating temperature: |
-30°C … 60°C |
| Language selection: |
Polish, English |
| Weight: |
0.74 kg |

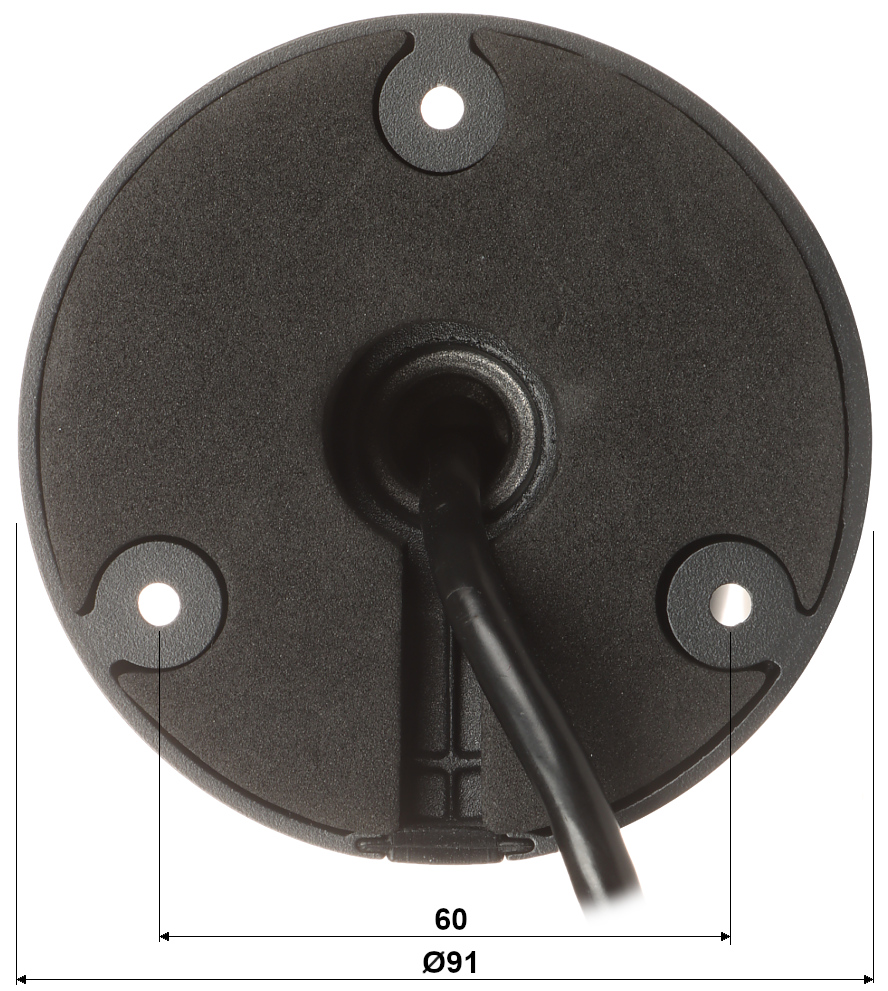

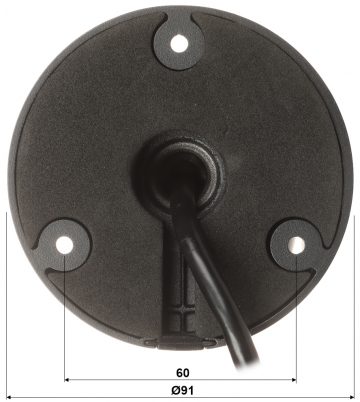

| Size: |
244 x 79 x 76 mm |
| Manufacturer / Brand: |
BCS Line |
| Warranty: |
3 years |
