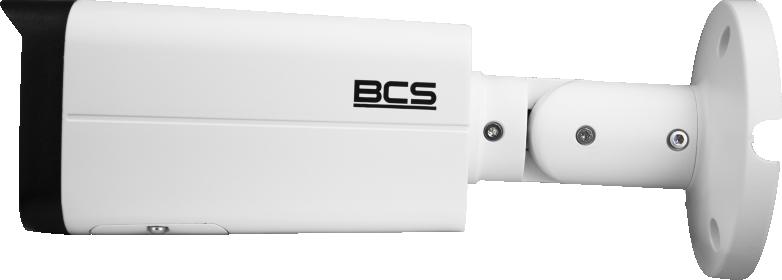

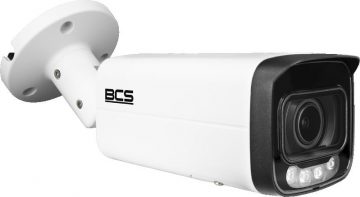

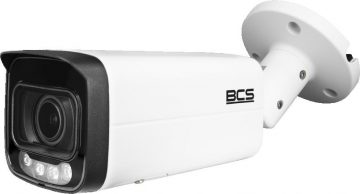

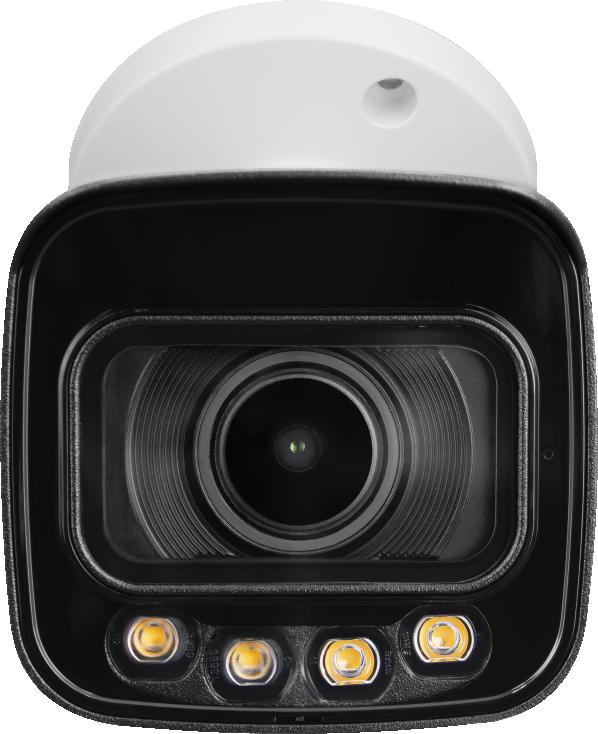

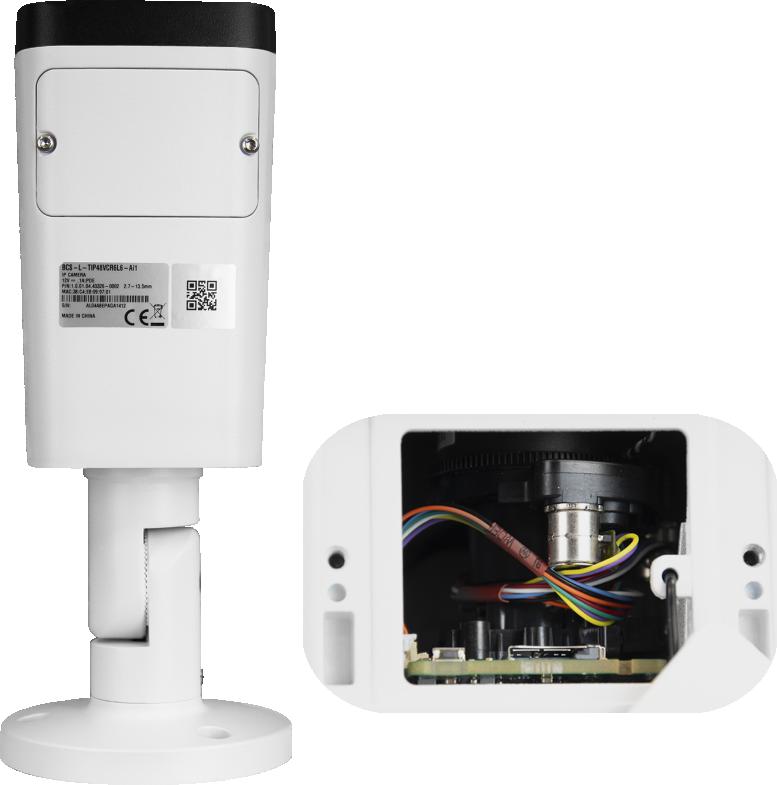

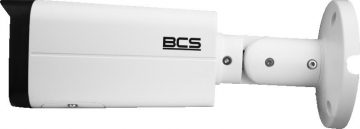

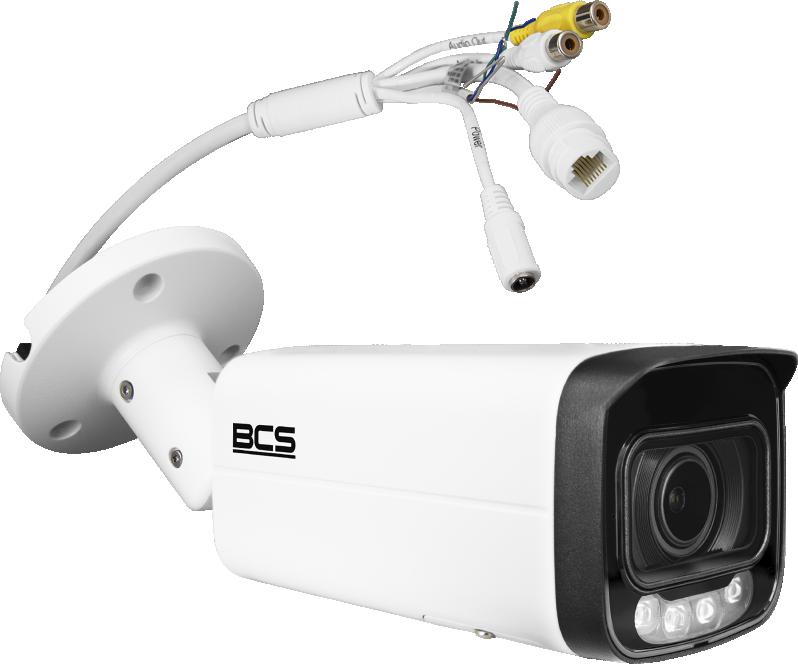

BCS LINE BCS -L-TIP48VCR6L6-Ai1 kamera
Key features:
- 8Mpx IP lamp camera
- 1/2.7″ PS CMOS sensor
- NightColor technology
- 2,7~13,5 mm motorizēta Objektīvs
- WDR120dB
- Signalizācija 1/1 Audio 1/1
- Microphone
- 60 m IR apgaismotājs
- 60 m balta gaisma
- IP67 housing
- Built-in smart features
BCS Manager mobile app
BCS Manager ir bezmaksas lietotnes versija IP CCTV sistēmu darbībai mobilajos tālruņos ar Android un iOS. Tā ļauj skatīt BCS zīmola NVR/XVR ierīces.
BCS Manager darbojas gan lokālajā Wi-Fi tīklā, gan GSM tīklā. Tas ļauj izveidot savienojumu ar ierīcēm, kas pieejamas internetā, izmantojot fiksētu IP adresi vai P2P BCS mākoņpakalpojumu. (P2P BCS mākonim ir nepieciešama atbilstoša ierīces sagatavošana).
BCS MANAGER software
It was created to support devices from many product lines with a single application. Today it is an advanced program that can be used by both individual users and large monitoring centers. The application is characterized by simple and intuitive use, as well as the implementation of many functions that expand the operator's daily work.
Additional accessories
Technical specifications
| Device name | BCS-L-TIP48VCR6L6-Ai1 |
| Product line | BCS LINE |
| Type Cameras | Pipe |
| Resolution | |
| Sensors | 1/2.7 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 256MB |
| ROM | 128MB |
| Lens | motozoom |
| Focal length | 2,7–13,5 mm |
| Aperture | F1,5 |
| Focus | Automātiski / manuāls |
| Aizvara diafragma | Automatic |
| Optical zoom | 5× |
| Digital zoom | 16× |
| Viewing angle | A: 114°~32° Vertikāls: 58°~17° Dziļums:138°~36° |
| DORI | Noteikt 85280 m / Novērot 34112 m / Atpazīt 1756 m / Identificēt 828 m |
| Camera sensitivity | 0,008 luksi (krāsains, F1.6, 30IRE), 0,0008 luksi (melnbalts, F1.6, 30IRE), 0 luksi (IR) |
| S/N ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Compensation | BLC/HLC/WDR (120dB) |
| Shutter | Auto/Manual 1/3~1/100000 s |
| Gain Control (AGC) | Automatic / manual |
| Noise reduction | 3D DNA |
| ROI | Region of interest |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolution | No 8M (3840×2160) līdz CIF (352×288/240) |
| Main stream | 3840×2160 (120 kadri/s), 2688×1520 (125/30 kadri/s) |
| Second stream | 704×576 (125 kadri/s), 704×480 (130 kadri/s) |
| Bit rate | H.264: 32–8192 Kbps, H.265: 12–8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR, mehāniskais IR filtrs |
| Illuminator type | IR LED + white light |
| Illuminator | 60 m |
| Naktskrāsa | Yes |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Ieeja Trauksme | 1 |
| Alarm output | 1 |
| Memory | FTP, SFTP |
| Memory card slot | microSD up to 256 GB |
| Support | Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS,Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS utt. |
| Security | Uzlabota šifrēšana, X.509, 802.1x sertifikāti, uzticama sāknēšana utt. |
| Barošanas avots tips | 12V V / PoE (802.3af) |
| Energy consumption | maks. 12,7 W |
| Body color | White |
| IP protection class | IP67 |
| Operating conditions | -30 °C~+60 °C, maks. 95 % relatīvais mitrums |
| Dimensions | 238,5 mm × 90,7 mm × 90,7 mm |
| Weight | 0,76 kg |
| Hull | Metal |
| Ai – Iebūvētas intelektuālās funkcijas | Built-in image recognition and analysis algorithms |
| Mākslīgais intelekts (AI) – perimetra aizsardzība | Entry into the territory, crossing the line |
| Ai – objektu atpazīšana | Personas/mehāniskā transportlīdzekļa viltus trauksmes samazināšana |
| Ai – SMD – intelektuāla kustību noteikšana | SMD Plus |
maks. 95 % relatīvais mitrums
