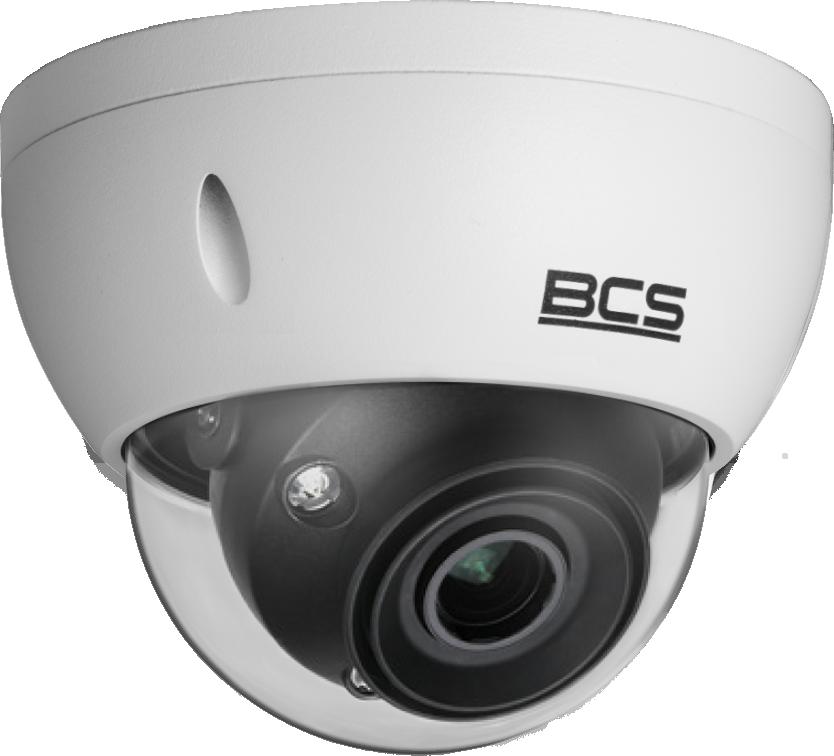

BCS LINE BCS-L-DIP68VSR4-Ai2 kamera
Modelis: BCS-L-DIP68VSR4-Ai2
Key features:
- 8Mpx kupola IP Kamera
- 1/1,8 collu PS CMOS sensors
- SkyLight technology
- exPoE technology
- AcuPick tehnoloģija
- 2,7–12 mm motorizēta lēca
- WDR 120 dB
- IR 40 m
- Signalizācija 2/1, Audio 1/1, Mikrofons
- IP67, IK10 housing
- Built-in smart features
Technical specifications
| Device name | BCS-L-DIP68VSR4-Ai2 |
| Līnijas produkts | BCS LINE |
| Kamera tips | Dome-shaped |
| Resolution | 8 Mpx |
| Sensors | 1/1.8 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 3840(H)×2160(V) |
| RAM | |
| Lens | mototālummaiņa |
| Focal length | 2,7–12 mm |
| Opening | F1.8 |
| Focus | Automatic / manual |
| Shutter | Automatic |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Viewing angle | A: 113°~47° Vertikāla: 60°~26° A: 133° ~53° |
| DORI | Noteikšana 83~190 m / Novērošana 33~76 m / Atpazīšana 17~38 m / Identificēšana 8–19 m |
| Camera sensitivity | 0,0008 luksi (krāsu, F1,8, 30IRE) 0,0004 luksi (F1,8, melnbalts,30IRE) 0 luksi (IR) |
| Signal to noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR (120 dB) / SSA |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Attēls Stabilizācija | Elektroniskā (EIS) |
| Refresher | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 4 |
| Resolution | 8M(3840×2160) / 6M(3072×2048) / 5M(3072×1728)(2592×1944) / 4M(2688×1520) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3 M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576/704 × 480) / VGA (640 × 480) / CIF (352 × 288/352 × 240) |
| Main stream | 3840 × 2160 (1–25/30 kadri/s) |
| Second stream | 704 × 576 (1-25 fps) 704 × 480 (1-30 fps) |
| Third stream | |
| Ceturtā Straume | 1280×720 (1–10 kadri/s) |
| Bit rate | H264: 32 Kbps–16384 Kbps H265: 12 Kbps–13568 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI kodēšana |
| Day/night | |
| Illuminator type | |
| Illuminator | 40 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 2 |
| Alarm output | 1 |
| Memory | |
| Memory card slot | microSD 512 GB |
| Support | Tīmekļa pakalpojums,CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Power source type | 12 V V / 24 VAC / PoE(802.3af) / ePoE |
| Energy consumption | maks. 12,2 W |
| Body color | White |
| IP protection class | IP67 |
| IK10 | Yes |
| Operating conditions | -30 °C~+60 °C max. 95 % relative humidity |
| Dimensions | Ø159,1 × 118,1 mm |
| Weight | 0.9 kg |
| Artificial Intelligence – Built-in Intelligent Functions | Built-in intelligent image recognition and analysis algorithms |
| Artificial Intelligence - Perimeter Protection | Ielaušanās zonā, līnijas šķērsošana, ātra pārvietošanās, klaiņošana, pūļa noteikšana, stāvvietu noteikšana |
| Artificial Intelligence - Object Recognition | Personas/transportlīdzekļa atpazīšana zonas ielaušanās, līnijas šķērsošanas un ātras pārvietošanās gadījumā samazina viltus trauksmes signālus. |
| Artificial Intelligence - Intelligent Object Detection | Pazaudētu/atstātu priekšmetu noteikšana |
| Artificial Intelligence - Face Detection | |
| Artificial Intelligence - Human Census | |
| Artificial Intelligence - Metadata | Personal attributes (gender, clothing, color, bag, headgear, umbrella), facial attributes (gender, age, facial expression, glasses, mask, facial hair), vehicle attributes (type, color, logo, seatbelts, smoking, phone) |
| Artificial Intelligence - Heat Map | Objektu kustības reģistrēšana laika gaitā,Lidojuma laika satiksmes blīvuma statistika, kas grafiski attēlota sarkanā/zilā krāsā |
| Ai – SMD | SMD 3.0 |
