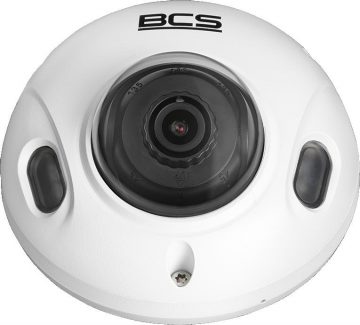

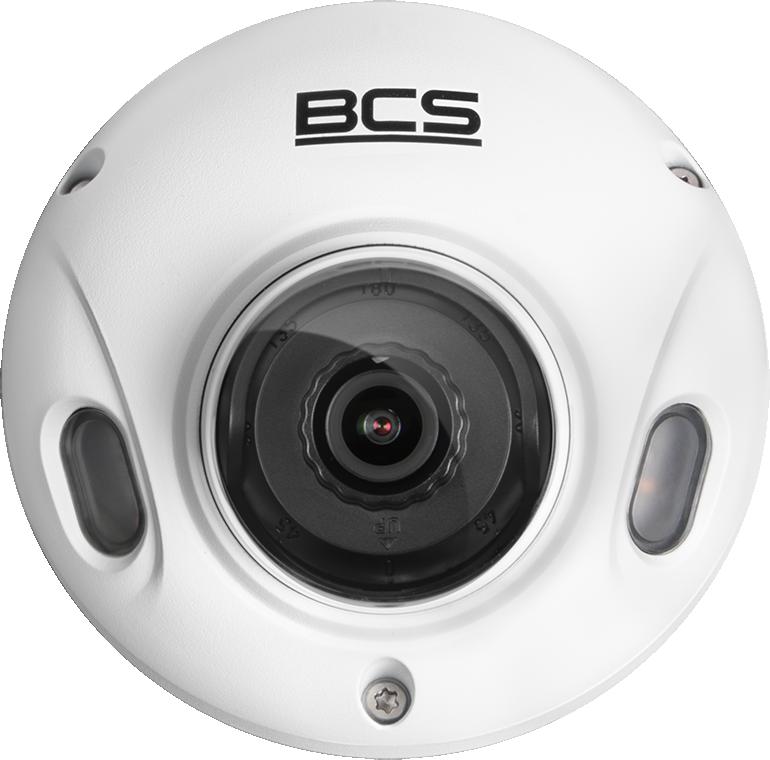

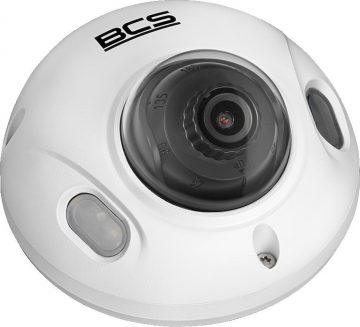

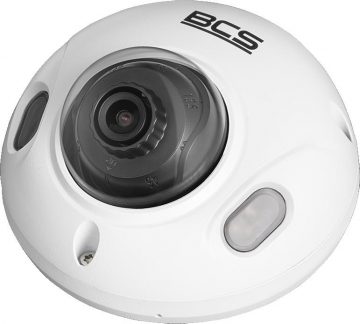

BCS LINE BCS-L-DMIP25FSR3-Ai1 kamera
Key features:
- 5Mpx dome IP camera
- 1/2,7 collu PS sensors CMOS
- SkyLight technology
- 2.8mm fixed lens
- WDR120dB
- IR 30 m
- Alarm 1/1, Audio 1/1, Microphone
- IP67, IK10 housing
- Built-in smart features
Technical specifications
| Device name | BCS-L-DMIP25FSR3-Ai1 |
| Product line | BCS LINE |
| Type Camera | Dome-shaped |
| Resolution | 5 Mpx |
| Sensors | |
| Scanning system | Progressive scan |
| Pixels | 2960(H)×1688(V) |
| RAM | 512MB |
| ROM | 128MB |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 111° Vertikāls: 58° Dziļums: 132° |
| DORI | Noteikt 64 m/ Novērot 25 m/ Atpazīt 13 m/ Identificēt 6 m |
| Camera sensitivity | 0,005 luksi (krāsu, F1.6, 30IRE) 0,0005 luksi (melnbalts, F1.6,30IRE) 0 luksi (IR) |
| Signal-to-noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Pastiprinājuma vadība | (AGC) Automātiski / manuāli |
| Noise reduction | 3D DNA |
| Fog prevention | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 5M(2960×1668)(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Mainstream | 2960×1668 (1~20 kadri/s) 2880×1620 (1~20 kadri/s) 2688×1520 (1~25 kadri/s) |
| Second stream | 704×576 (1~25 kadri/s) 704×480 (1~30 kadri/s) |
| Third stream | 1920×1080 (1~25/30 kadri/s) |
| Bit rate | |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai encoding |
| Day/Night | ICR mechanical IR filter |
| Illuminator type | IR LEDs |
| Illuminator | 30 m |
| Microphone | Yes |
| 1 | |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Support | Tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS,android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Power source type | 12V DC / PoE (802.3af) |
| Energy consumption | maks. 7,2 W |
| Body color | White |
| IP protection class | IP67 |
| IK10 | Yes |
| Operating conditions | -40 °C~+60 °C max. 95 % relative humidity |
| Dimensions | Ø111 × 65 mm |
| Weight | 0,42 kg |
| Mākslīgais intelekts — iebūvētas intelektiskās funkcijas | Iebūvēta intelektiskā attēlu atpazīšana un analīze algoritmi |
| Artificial Intelligence - Perimeter Protection | Ieeja zonā, šķērsojot līniju |
| Artificial Intelligence - Object Recognition | Personas/transportlīdzekļa atpazīšana, ja ielaušanās zonā, šķērsojot līniju, samazina viltus trauksmes signālu skaitu. |
| Artificial Intelligence — SMD |
