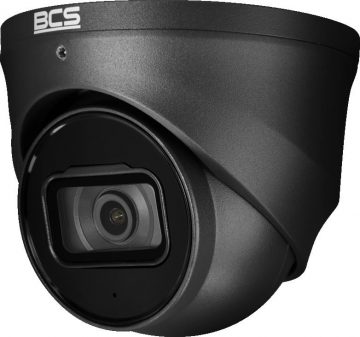

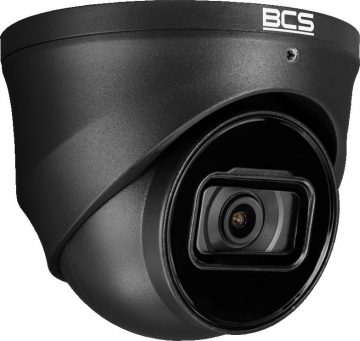

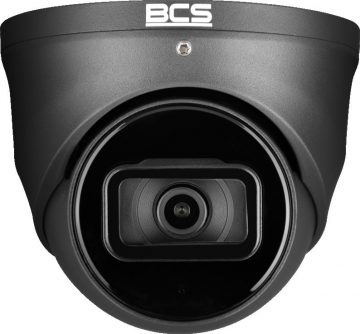

IP camera BCS LINE BCS-L-EIP25FSR5-Ai2-G
Key features:
- 5Mpx dome IP camera
- Sensor 1/2.7″ PS CMOS
- SkyLight technology
- AcuPick Technology
- 2.8mm fixed lens
- WDR120dB
- IS 50 m
- Alarm 1/1, Audio 1/1, Microphone
- IP67 housing
- Built-in intelligent functions
BCS Manager mobile app
BCS Manager is a free app version for operating IP CCTV systems on Android and iOS mobile phones. It allows you to view BCS NVR/XVR devices.
BCS Manager works both in the local Wi-Fi network and in the GSM network. It allows you to connect to devices available on the Internet using a fixed IP address or the P2P BCS cloud service (P2P BCS cloud requires appropriate preparation of the devices).
Additional accessories:
Technical specifications
| Device name | BCS-L-EIP25FSR5-Ai2-G |
| Product line | BCS LINE |
| Camera type | Dome-shaped |
| Resolution | 5 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 2960(H)×1688(V) |
| RAM | 1GB |
| ROM | 4GB |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Air | Fixed |
| Digital zoom | 16 × |
| Angle | E: 111° W: 58° D: 132° |
| DORI | Determine 64 m / Observe 25 m / Recognize 13 m / Identify 6 m |
| Camera sensitivity | 0.0009 lux (color, F1.6, 30IRE) 0.0005 lux (monochrome, F1.6, 30IRE) 0 lux (IR) |
| S/N ratio | |
| White balance | |
| WDR | |
| Compensation | BLC/HLC/WDR (120dB) |
| Shutter | Auto/Manual 1/3~1/100000 s |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Fog prevention | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Quantity of streams | 4 |
| Resolution | 5M(2960×1668)(2880×1620) / 4M (2688×1520) (2560×1440) / 3M (2048×1536) (2304×1296) / 2M (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Main stream | 2960×1668 (1-25/30 fps) |
| Second stream | 704×576/704×480 (1-25/30 fps) |
| Third stream | |
| Additional flow fourth | 1280×720(1~25/30fps) |
| Bit rate | H264: 32Kbps~16384Kbps H265: 12Kbps~11776Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Artificial Intelligence Coding |
| Day/night | ICR mechanical IR filter |
| Illuminator type | IR LEDs |
| Illuminator | 50 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |

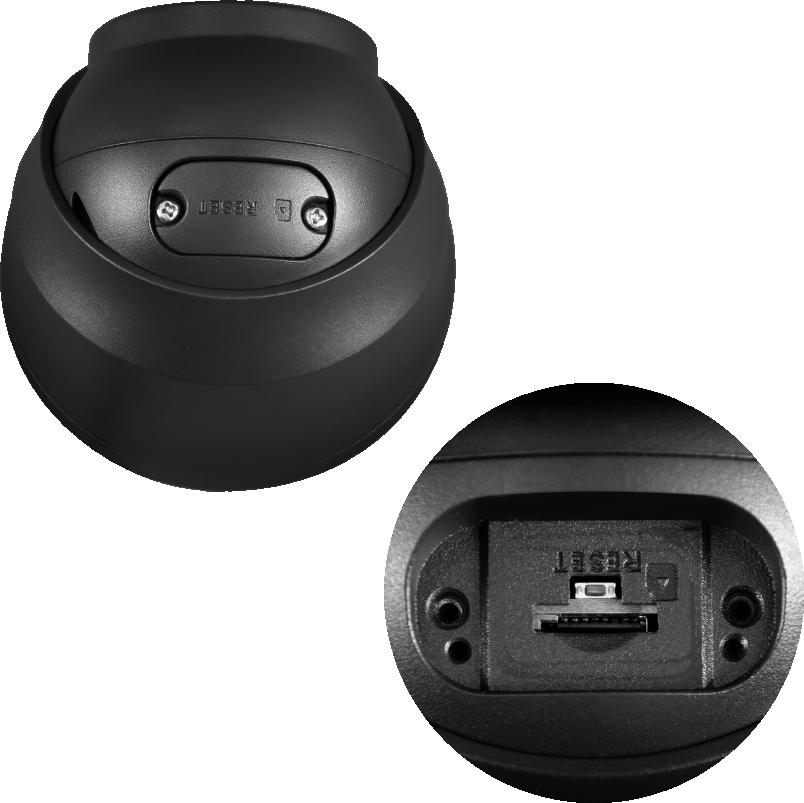

| Memory card slot | microSD 512 GB |
| Support | Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | |
| Power source type | 12 V V / 24 VAC / PoE(802.3af) / ePoE |
| Energy consumption | max. 8.3 W |
| Body color | Black |
| IP protection class | IP67 |
| Operating conditions | -40 °C~+60 °C max. 95 % relative humidity |
| Dimensions | Ø106 × 94 mm |
| Weight | 0.5 kg |
| Artificial Intelligence – Built-in Intelligent Functions | Built-in intelligent image recognition and analysis algorithms |
| Artificial Intelligence - Perimeter Protection | Intrusion, line crossing, fast movement, loitering, crowd detection, parking detection |
| Artificial Intelligence - Object Recognition | Person/vehicle recognition in case of zone intrusion, line crossing and rapid movement reduces false alarm activation. |
| Artificial Intelligence - Intelligent Object Detection | Intelligent detection of lost/abandoned objects |
| Artificial Intelligence - Face Detection | |
| Artificial Intelligence - Human Census | Counting people in the event of line crossing/intrusion into the area, counting and presence of entrances and exits, monitoring and managing the queue of people, generating and exporting reports over time periods. |
| Artificial Intelligence - Metadata | Personal attributes (gender, clothing, color, bag, headgear, umbrella), facial attributes (gender, age, facial expression, glasses, mask, facial hair), vehicle attributes (type, color, logo, seatbelts, smoking, phone) |
| Artificial Intelligence - Heat Map | Movement of objects over time, statistics of the time density of movement, graphically displayed in red/blue color tones |
| Artificial Intelligence — SMD | SMD 3.0 |
