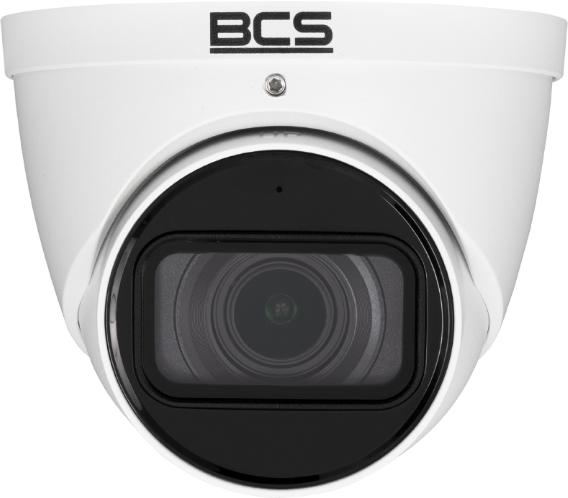

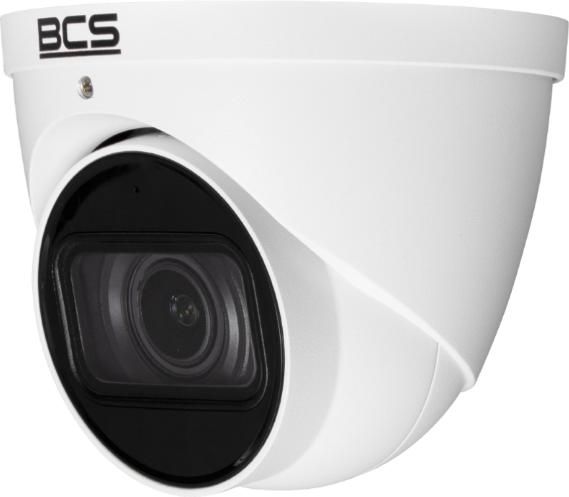

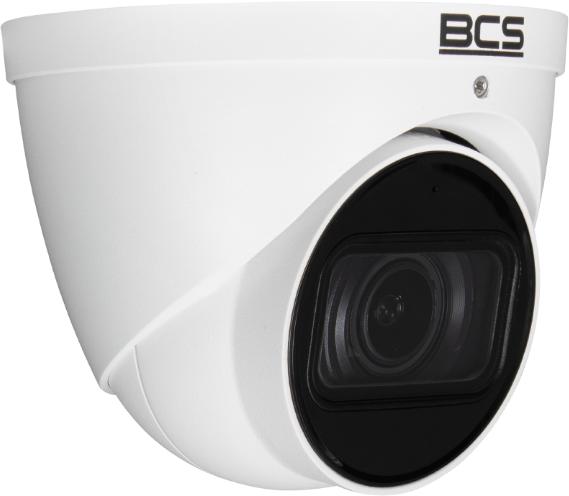

BCS LINE BCS-L-EIP44VWR5 kamera
Modelis: BCS-L-EIP44VWR5
Technical specifications
| Ierīce Nosaukums | BCS-L-EIP44VWR5 |
| Product line | BCS LINE |
| Camera type | Dome-shaped |
| Resolution | 4 Mpx |
| Sensors | 1/3” CMOS |
| Scanning system | Progressive scan |
| Pixels | 2688(H)×1520(V) |
| RAM | |
| ROM | |
| Lens | Motorized zoom |
| Focal length | 2.8-12mm |
| Opening | F1,7 |
| Focus | Automatic / manual |
| Shutter | Automatic |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Viewing angle | H: 98°–31° / V: 55°–18° / D: 116°~36° |
| DORI | Atklāšana 66~200 m / Novērošana 26~80 m / Atpazīšana 13~40 m / Identifikācija 7~20 m |
| Camera sensitivity | 0,03 luksi (krāsu, F1,7),0 luksi (IR) |
| Signal to noise ratio | 56 dB |
| White balance | (AWB) Automātisks / Manuāls |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Automātiski / Manuāls 1/3~1/100000 s |
| Gain control | (AGC) Automātiski / Manuāls |
| Noise reduction | 3D DNA |
| ROI | Region Interests |
| Image rotation | Spoguļattēls, apgriešana 0°/90°(koridora režīms)/180°/270° |
| Number of streams | 2 |
| Resolutions | 4M(2688×1520/2560×1440), 3M(2304×1296), 1080p(1920×1080), 1,3M(1280×960), 720p(1280×720), D1(704×576/704×480), VGA(640×480), CIF(352×288/352×240) |
| Galvenā Straume | 2688×1520(1~20 kadri/s), 2560×1440(1~25/30 kadri/s) |
| Second stream | 704×576(1~25 kadri/s), 704×480(1~30 kadri/s) |
| Bit rate | H.264: 32 Kbps~6144 Kbps / H.265: 12 Kbps~6144 Kbps |
| Video compression | |
| Day/Night | |
| Illuminator type | IR LEDs |
| IR range | 50 m |
| Memory | FTP, SFTP, NAS |

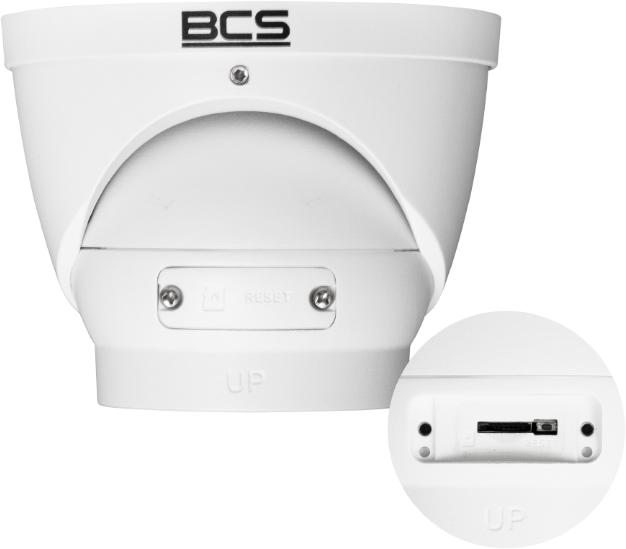

| Memory card slot | microSD 256 GB |
| Support | Tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/Mac), mobilā lietotne (iOS, Android) |
| Motion detection | 4 |
| Maskas, privātums | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| Security | Video šifrēšana, programmaparatūras šifrēšana, konfigurācijas šifrēšana, Digest, WSSE, konta bloķēšana, drošības žurnāli, IP/MAC filtrēšana, X.509 sertifikātu pārvaldība,syslog, HTTPS, 802.1x, uzticama sāknēšana/izpilde/jaunināšana |
| Power source | 12 V līdzstrāva / PoE (802.3af) |
| Energy consumption | maks. 6,9 W |
| Body color | White |
| IP protection class | IP67 |
| Operating conditions | -40 °C~+60 °C, maks. 95 % relatīvais mitrums |
| Dimensions | Ø122 × 108,3 mm |
| Weight | 0.5 kg |
