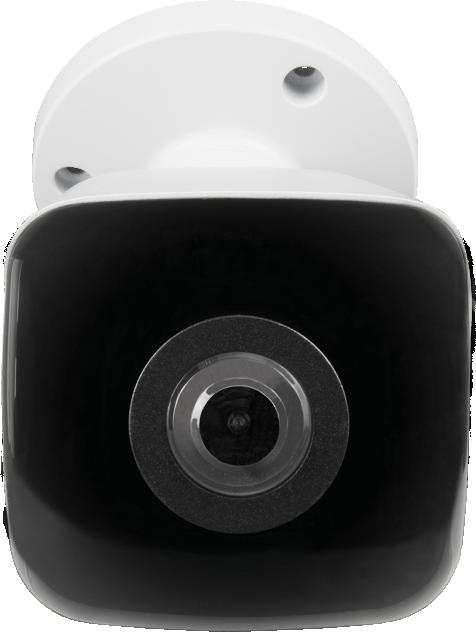

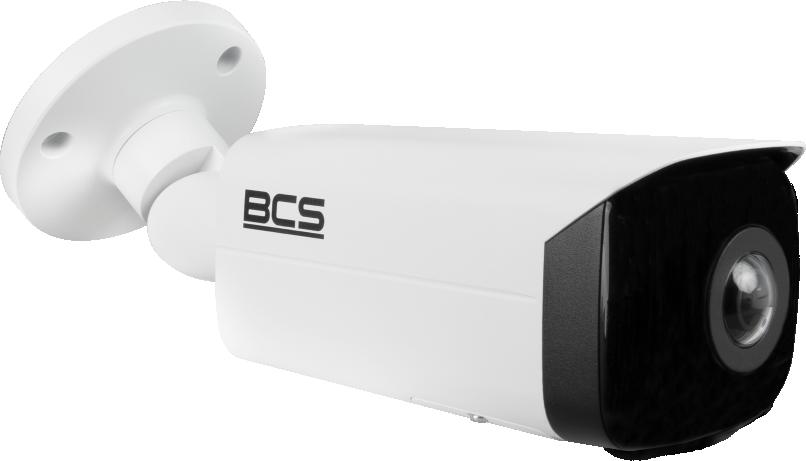

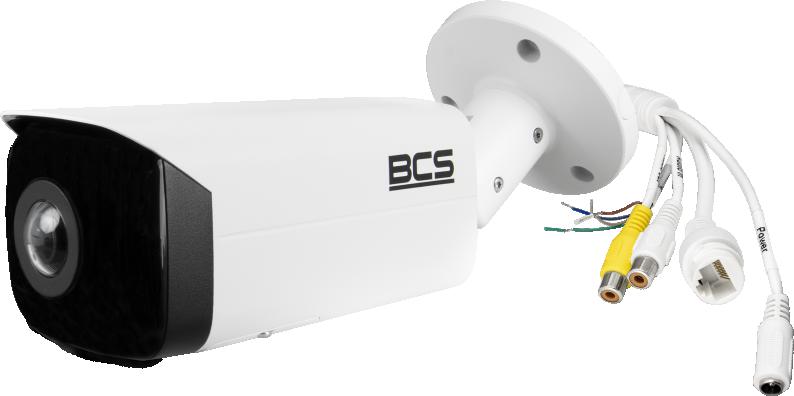

BCS LINE kamera BCS-L-PTIP1x4FWR2-Ai1
Modelis: BCS-L-PTIP1x4FWR2-Ai1
Key features:
- 4Mpx panorāmas IP Kamera
- 1/2,7 collu PS CMOS sensors
- 2,1 mm fiksēts objektīvs
- WDR120dB
- IR 20 m
- Alarm 1/1, Audio 1/1, Microphone
- IP67 housing
- Built-in intelligent functions
Technical specifications
| Device name | BCS-L-PTIP1x4FWR2-Ai1 |
| Product line | BCS LINE |
| Type Camera | Panoramas |
| Resolution | |
| Sensors | 1/2.7 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 2880(H)×1620(V) |
| RAM | 512MB |
| ROM | 128MB |
| Lens | Fixed |
| Focal length | 2,1 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| Closure | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 180° V: 78° D: 180° / LDC: H: 170° V: 75° D: 175° |
| DORI | Noteikt 52 m / Novērot 21 m / Atpazīt 10 m / Identificēt 5 m |
| Jutība kameras | 0,01 lukss (krāsu, F2,0, 30 IRE) 0,001 lukss (F2,0, melnbalts,30IRE) 0 luksi (IR) |
| Signal to noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR (120 dB) / SSA |
| Shutter speed | Automātiski / manuāls 1/3~1/100000 s |
| Pastiprinājuma vadība | (AGC) Automātiski / manuāls |
| Noise reduction | 3D DNA |
| Fog prevention | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 5M(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2304×1296)(2048×1536) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA (640 × 480) / CIF (352 × 288/352 × 240) |
| Main stream | 2880 × 1620 (1–20 kadri/s) / 2688 × 1520 (1–25/30 kadri/s) |
| Second stream | 704 × 576 (1-25 fps) 704 × 480 (1-30 fps) |
| Third stream | 1920 × 1080 (1-25/30 fps) |
| Bit rate | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/Night | ICR mehāniskais IR griešanas filtrs |
| Illuminator type | IR LEDs |
| Illuminator | 20 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Support | Tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS,android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Tips Barošanas avots | 12 V DC / PoE |
| Energy consumption | maks. 6,5 W |
| Body color | White |
| IP protection class | IP67 |
| Operating conditions | -40 °C~+60 °C max. 95 % relative humidity |
| Dimensions | 249 × 90 × 90 mm |
| Weight | |
| Ai - built-in intelligence | Built-in intelligent image recognition and analysis algorithms |
| AI - Perimeter Protection | Ieeja zonā, šķērsošana līnija |
| Mākslīgais intelekts — objektu atpazīšana | Personas/transportlīdzekļa atpazīšana, ja tiek ielauta teritorija vai šķērsota līnija, samazina viltus trauksmes signālu aktivizēšanu. |
| Mākslīgais intelekts — SMD | SMD 3.0 |
Crossing the line
