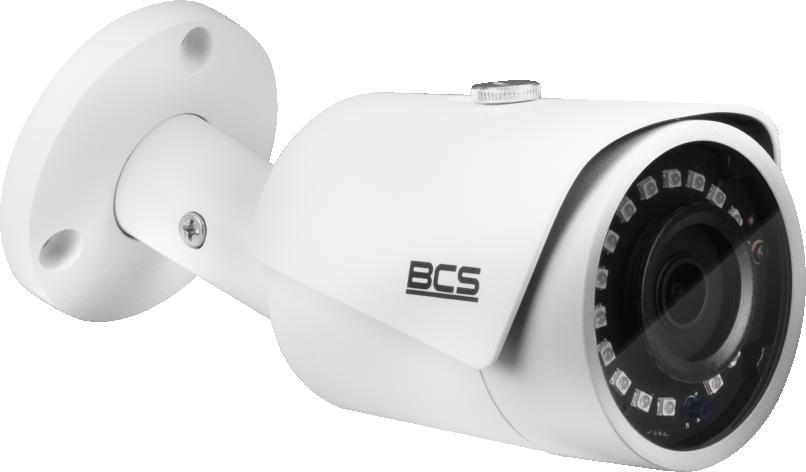

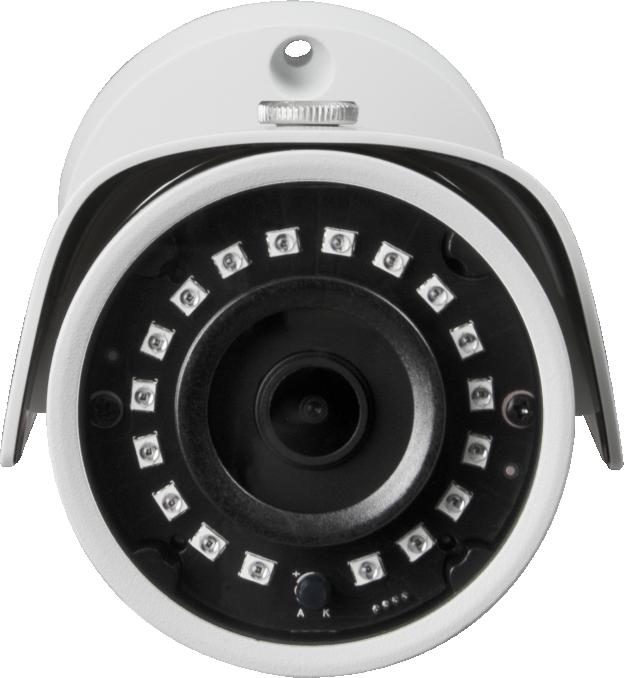

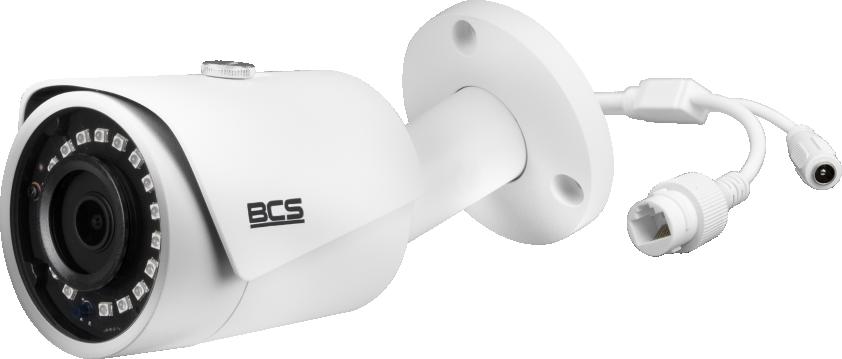

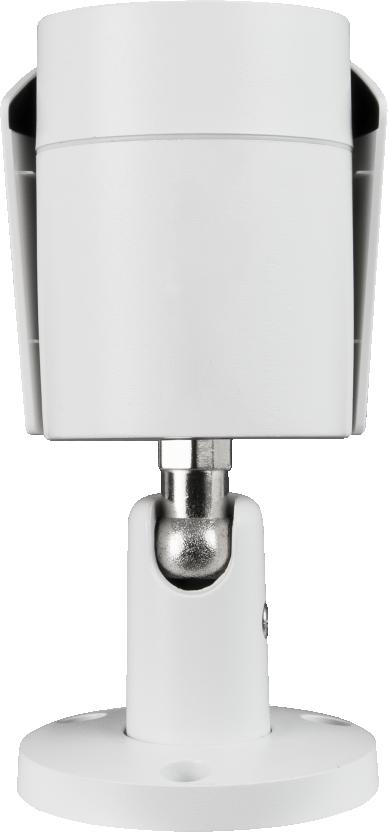

BCS LINE BCS-L-TIP14FR3 kamera
Modelis: BCS-L-TIP14FR3
Key features:
- 4Mpx IP lodveida kamera
- 1/3″ PS CMOS sensors
- 2,8 mm Fiksēts objektīvs
- 30 m IR
- IP67 housing
Technical specifications
| Device name | BCS-L-TIP14FR3 | ||
| Product line | BCS LINE | ||
| Camera type | Spuldze | ||
| Resolution | 4 Mpx | ||
| Sensors | |||
| Sistēmas skenēšanas ātrums | Progresīvs Skenēšana | ||
| Pixels | 2560(H)×1440(V) | ||
| RAM | 128MB | ||
| ROM | 128MB | ||
| Lens | Fixed | ||
| Focal length | 2.8mm | ||
| Aperture | F2.0 | ||
| Focus | Fixed | ||
| Shutter | Fixed | ||
| Tālummaiņa digitāls | 16× | ||
| Viewing angle | A: 93° Vertikāls: 53° Dziļums: 111° | ||
| DORI | Atklāt 50 m / Novērot 22 m / Atpazīt 11 m / Identificēt 5 m | ||
| Camera sensitivity | 0,03 luksi (krāsu, F2.0) 0 luksi (IR) | ||
| White balance | (AWB) Automātisks / Manuāls | ||
| WDR | 120dB | ||
| Backlight compensation | BLC/HLC/WDR (120dB) | ||
| Shutter speed | Automātiski / Manuāls 1/3~1/100000 s | ||
| Gain control | (AGC) Automātiski / Manuāls | ||
| Noise reduction | 3D DNA | ||
| Attēla apgriešana | Mirror, rotation 0°/90°/180°/270° | ||
| Number of streams | 2 | ||
| Resolutions | 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) | ||
| Mainstream | 2688×1520(1~20 kadri/s) 2560×1440(1~25/30 kadri/s) | ||
| Secondary stream | 704×576(1~25 kadri/s) 704×480(1~30 kadri/s) | ||
| Bit rate | H.264: 32 Kbps~6144 Kbps H.265: 12 Kbps~6144 Kbps | ||
| Video compression | |||
| Day/night | |||
| Illuminator type | |||
| Illuminator | 30 m | ||
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) | ||
| Motion detection | 4 | ||
| Privacy masks | 4 | ||
| Network | RJ-45 10/100Mbps | ||
| Compatibility | |||
| Protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, RTMP, Multicast, HTTPS, SFTP, 802.1x, ICMP, IGMP | ||
| Power source type | 12 V DC / PoE (802.3af) | ||
| Energy consumption | maks. 6 W | ||
| Body color | White | ||
| IP necaurlaidības klase | |||
| Operating conditions | -40 °C~+60 °C maks. 95 % RH | ||
| Dimensions | 164,6 × 70 × 70 mm | ||
| Weight | 0.4 kg
