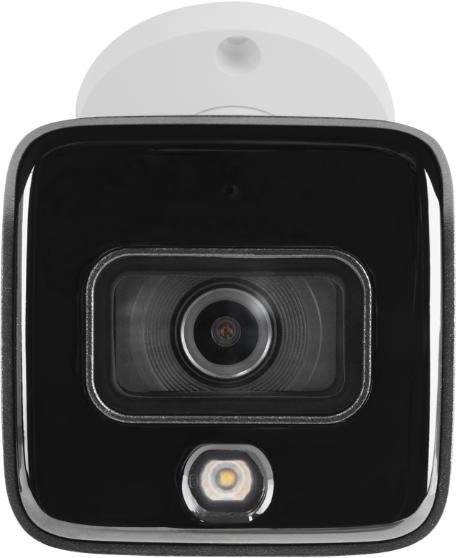

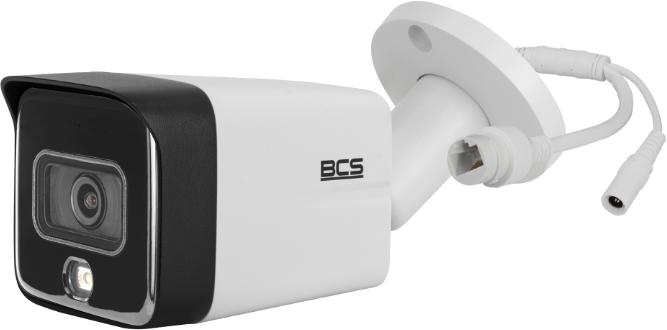

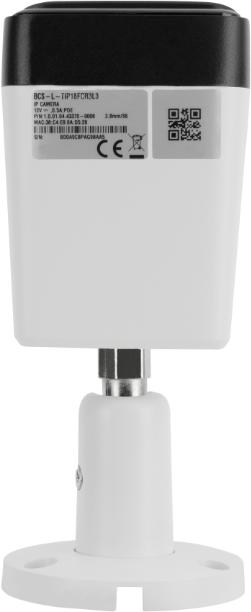

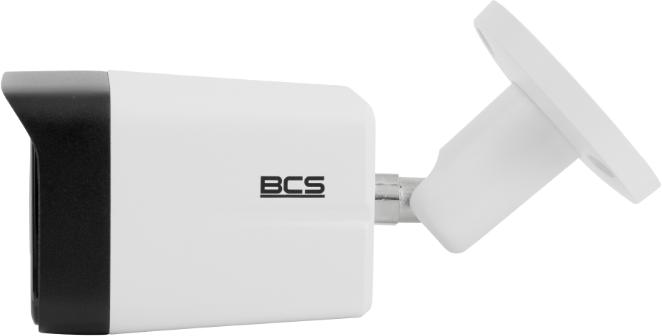

BCS LINE BCS-L-TIP18FCR3L3 kamera
Modelis: BCS-L-TIP18FCR3L3
Specifikācija Tehniskās specifikācijas
| Ierīce Nosaukums | BCS-L-TIP18FCR3L3 |
| Product line | BCS LINE |
| Camera type | Camera sensor |
| Resolution | 8 Mpx |
| Sensors | 1/2.7” CMOS |
| Scanning system | Progressive scan |
| Pixels | 3840(H)×2160(V) |
| RAM | |
| ROM | |
| Lens | Fixed |
| Focal length | 2.8mm |
| Opening | F1.6 |
| Focus | Fixed |
| Closure | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 110° / V: 58° / D: 132° |
| DORI | Detect 85 m / Novērot 34 m / Atpazīt 17 m / Identificēt 8 m |
| Camera sensitivity | 0,008 luksi (krāsu, F1,6, 30IRE) / 0,0008 luksi (melnbalts, F1,6,30IRE) / 0 luksi (IR) |
| Signal to noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Pastiprinājuma vadība | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| ROI | Reģions Interese |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolution | 8M(3840×2160) / 6M(3072×2048) / 5M(3072×1728)(2880×1620) / 4M(2688×1520) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Main stream | 3840×2160 (20 kadri/s), 2688×1520 (25/30 kadri/s) |
| Second stream | 704×576 (25 kadri/s), 704×480 (30 kadri/s) |
| Bit rate | |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/Night | ICR mehāniskais IR griešanas filtrs |
| Illuminator type | IR LED + white light |
| IR range | 30 m |
| White light range | 30 m |
| Naktskrāsa | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP |
| Support | Tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/Mac), mobilā lietotne (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, daudzadresācija,ICMP, IGMP, P2P |
| Security | Video šifrēšana, konfigurācijas šifrēšana, īssavilkums, WSSE, konta bloķēšana, drošības žurnāli, X.509 sertifikācijas ģenerēšana un importēšana, HTTPS, uzticama sāknēšana, uzticama izpilde, uzticama jaunināšana |
| Power source type | 12 V līdzstrāva / PoE (802.3af) |
| Energy consumption | maks. 5,8 W |
| Body color | White |
| IP protection class | |
| Operating conditions | -40 °C~+60 °C, maks. 95 % RH |
| Dimensions | 173,3 × 70,0 × 70,0 mm |
| Weight | 0.44 kg |
| Hull | Metal |
