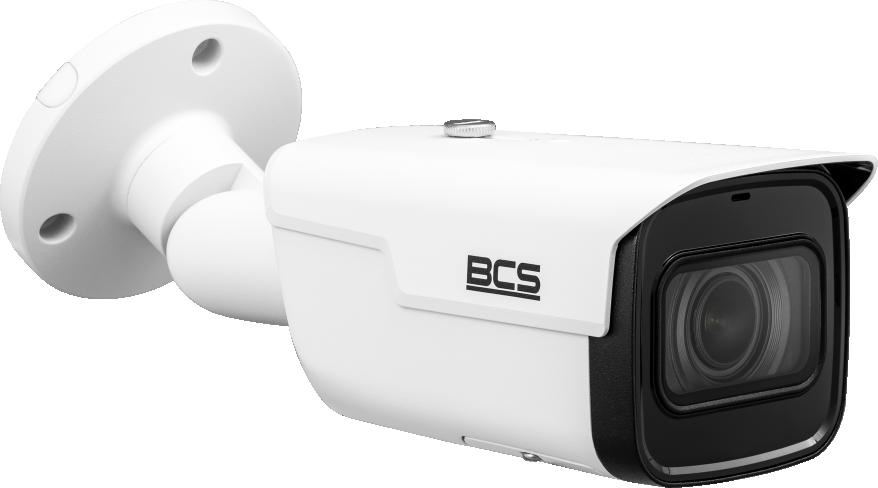

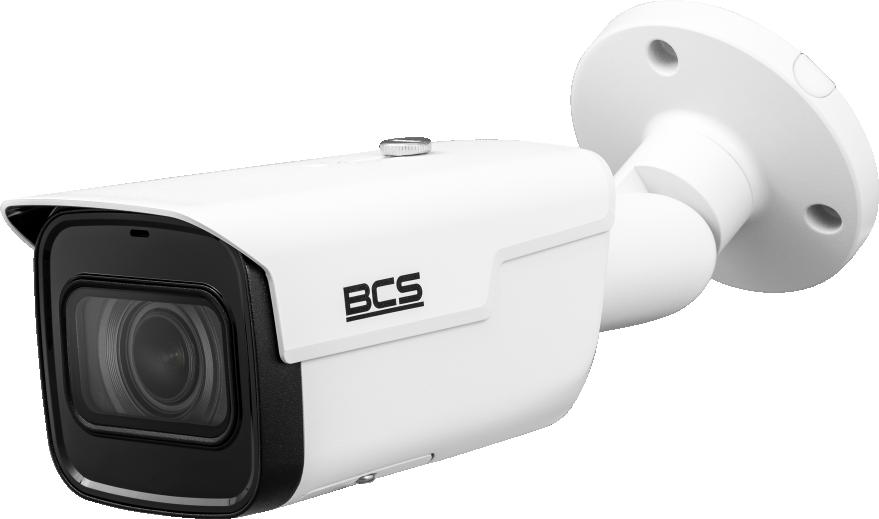

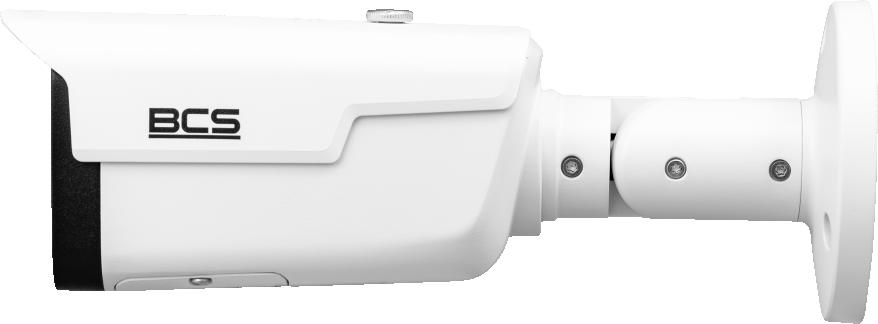

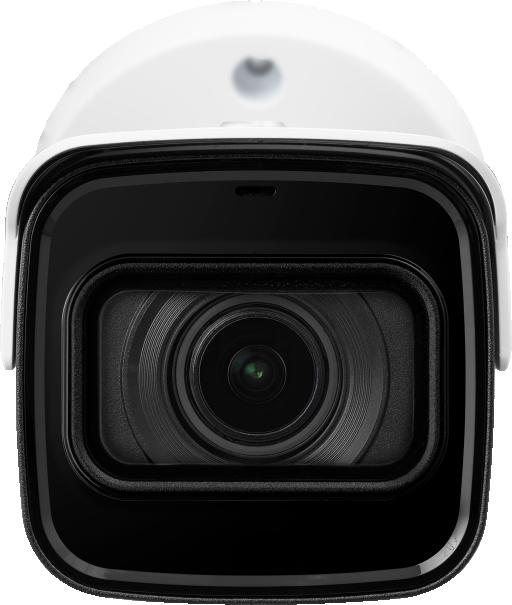

BCS LINE kamera BCS-L-TIP42VSR6-Ai1
Modelis: BCS-L-TIP42VSR6-Ai1
Key features:
2Mpx IP lodveida kamera no BCS Line. 1/2,8 collu CMOS sensors ar 2,7–13,5 mm motorizētu tālummaiņas objektīvu.
Technical specifications
| Device name | BCS-L-TIP42VSR6-Ai1 |
| Product line | BCS LINE |
| Camera type | Camera sensor |
| Resolution | 2 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| RAM | 128MB |
| ROM | 128MB |
| Lens | mototālā tālummaiņa |
| Focal length | 2.7-13.5mm |
| Opening | F1,5 |
| Focus | Automatic/manual |
| Shutter | Automatic |
| Tālummaiņa Optiskā | 4× |
| Digital zoom | 16× |
| Viewing angle | A: 108°~30° Vertikālā: 56°~17° Dziļums: 131°~35° |
| DORI | Detekt 44~145 m / Novērot 18~58 m / Atpazīt 9~29 m / Identificēt 4~14 m |
| Camera sensitivity | 0,002 luksi (krāsu, F1,6, 30IRE) 0,0002 luksi (melnbalts, F1,6,30IRE) 0 luksi (IR) |
| Signal to noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Pastiprinājuma vadība | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Apvēršana Attēls | Mirror image, rotation 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolutions | 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Mainstream | 1920×1080(1~25/30 kadri/s) |
| Papildu straume sekunde | 704×576/704×480(1~25/30 kadri/s) |
| Bit rate | H.264: 32 Kbps~6144 Kbps H.265: 12 Kbps~6144 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mehāniskais IR griešanas filtrs |
| Illuminator type | IR LEDs |
| Illuminator | 60 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Support | Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP,IGMP |
| Power source type | 12 V V / PoE(802.3af) |
| Energy consumption | maks. 9,9 W |
| Body color | White |
| IP protection class | IP67 |
| Operating conditions | -30 °C–+60 °C maks. 95 % relatīvais mitrums |
| Dimensions | 90,4 × 244,1 mm |
| Weight | 0,86 kg |
| Mākslīgais intelekts — iebūvētas intelektiskās funkcijas | Iebūvēts intelektiskais attēlu atpazīšanas un analīzes algoritmi |
| Artificial Intelligence - Perimeter Protection | Ieeja zonā, šķērsojot līniju |
| Artificial Intelligence - Object Recognition | Personas/transportlīdzekļa atpazīšana, ja tiek ielauta zona, šķērsojot līniju, samazina viltus trauksmes signālu skaitu. |
| Artificial Intelligence — SMD | SMD Plus |
