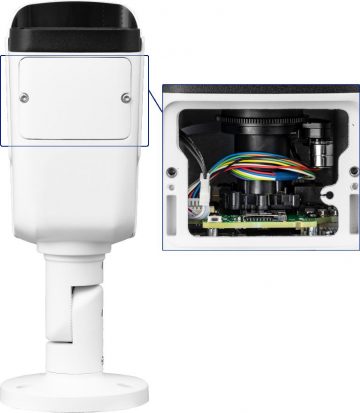

BCS LINE BCS-L-TIP58VSR6-Ai1(2) kamera
Key features:
- 8Mpx IP lodveida kamera
- 1/1,8 collu PS sensors CMOS
- SkyLight technology
- 2,7–12 mm motorizēta Objektīvs
- WDR120dB
- IR 60m
- Alarm 1/1, Audio 1/1, Microphone
- IP67 housing
- Built-in smart features
Technical specifications
| Device name | BCS-L-TIP58VSR6-Ai1(2) |
| Product line | BCS LINE |
| Type Camera | Pipe |
| Resolution | |
| Sensors | 1/1.8 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 1GB |
| ROM | 128MB |
| Lens | mototālummaiņa |
| Focal length | 2,7–12 mm |
| Opening | F1.6 |
| Focus | Automātiski / manuāls |
| Aizvara diafragma | Automatic |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Viewing angle | A: 113°~47° Vertikāls: 60°~26° D:133°~53° |
| DORI | Noteikšana 83~190 m / Novērošana 33~76 m / Atpazīšana 17~38 m / Identificēšana 8~19 m |
| Camera sensitivity | 0,003 luksi (krāsains, F1,6, 30IRE) 0,0005 luksi (F1,6, melnbalts, 30IRE) 0 luksi (IR) |
| S/N ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Kompensācija Fona apgaismojuma korekcija | BLC / HLC / WDR (120 dB) / SSA |
| Shutter | Auto/Manual 1/3~1/100000 s |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Image stabilization | Elektroniska (EIS) |
| Fog prevention | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Quantity Streams | 3 |
| Resolutions | 8M(3840×2160) / 6M(3072×2048) / 5M(3072×1728)(2592×1944) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Galvenā Straume | 3840×2160(1~25/30 kadri/s) |
| Second stream | 704×576(1~25 kadri/s) 704×480(1~30 kadri/s) |
| Third stream | 1920×1080(1~25/30 kadri/s) |
| Bit rate | H.264: 3 kbps~16384 kbps H.265: 3 kbps~16384 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Kodēšana |
| Day / Night | ICR mehāniskais IR griešanas filtrs |
| Illuminator type | IR LEDs |
| Illuminator | 60 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Power source type | 12VDC / PoE(802.3af) |
| Energy consumption | maks. 10,5 W |
| Color Body | White |
| IP aizsardzība Klase | IP67 |
| Operating conditions | -30°C~+60°C max. 95% relative humidity |
| Dimensions | 244,1 × 79 × 75,9 mm |
| Weight | 0,8 kg |
| Ai - built-in intelligence | Built-in intelligent image recognition and analysis algorithms |
| AI - Perimeter Protection | Entering the zone, crossing the line |
| AI - Object Recognition | |
| Ai — SMD | SMD 4.0 |
BCS Manager mobile app
BCS Manager is a free app version for operating IP CCTV systems on Android and iOS mobile phones. It allows you to view BCS NVR/XVR devices.
BCS Manager darbojas gan lokālajā Wi-Fi tīklā, gan GSM tīklā.Tas ļauj izveidot savienojumu ar ierīcēm, kas ir pieejamas internetā, izmantojot fiksētu IP adresi vai P2P BCS mākoņpakalpojumu (P2P BCS mākonim ir nepieciešama atbilstoša ierīces sagatavošana).
BCS MANAGER - a program for operating BCS CCTV devices.
BCS Manager is a professional management system designed for comprehensive BCS video surveillance management. It provides convenient live viewing, playback of recordings, device configuration, as well as alarm and user management from a computer. The program supports multiple locations simultaneously, offering features such as e-maps, recording schedules, and full integration with recorders and IP cameras. It is a reliable tool for professionals who need a centralized platform to effectively manage their video surveillance system.
BCS MANAGER software
It was created to support devices from several product lines with a single application. Today it is an advanced program that can be used by both individual users and large monitoring centers. The application is characterized by ease of use and intuitive operation, as well as the implementation of many functions that expand the operator's daily work.
Technical specifications
| Device name | BCS-L-TIP58VSR6-Ai1(2) |
| Product line | BCS LINE |
| Camera type | Pipe |
| Resolution | 8 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| RAM | |
| ROM | 128MB |
| Lens | mototālummaiņa |
| Focal length | 2.7-12mm |
| Aperture | F1.6 |
| Focus | Automatic/manual |
| Shutter | Automatic |
| Optiska tālummaiņa | 4× |
| Digital zoom | 16× |
| Viewing angle | A: 113°~47° Vertikāls: 60°~26° Dziļums: 133°~53° |
| DORI | Noteikšana 83~190 m / Novērošana 33~76 m / Atpazīšana 17~38 m / Identifikācija 8~19 m |
| Camera sensitivity | 0,003 luksi (krāsu, F1,6, 30IRE) 0,0005 luksi (F1,6, melnbalts, 30IRE) 0 luksi (IR) |
| S/N Adaptācija | 56dB |
| Balanss Baltā balanss | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR (120dB) / SSA |
| Shutter speed | Automātiska / manuāla 1/3~1/100000s |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Image stabilization | Elektroniska (EIS) |
| Fog prevention | Electronic |
| Attēla apgriešana | Mirror, Rotation 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 8M(3840×2160) / 6M(3072×2048) / 5M(3072×1728)(2592×1944) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF (352 × 288/352 × 240) |
| Main stream | 3840 × 2160 (1–25/30 kadri/s) |
| Second stream | 704 × 576 (1-25 fps) 704 × 480 (1-30 fps) |
| Third stream | 1920 × 1080 (1-25/30 fps) |
| Bit rate | |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI kodēšana |
| Day/Night | ICR mehāniskais IR griešanas filtrs |
| Illuminator type | IR LEDs |
| Illuminator | 60 m |
| Microphone | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Compressing audio | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Signalizācija Ieeja | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Power source type | 12VDC / PoE(802.3af) |
| Energy consumption | maks. 10.5 W |
| Body color | White |
| IP protection class | |
| Operating conditions | -30°C~+60°C max. 95% relative humidity |
| Dimensions | 244,1 × 79 × 75,9 mm |
| Weight | 0,8 kg |
| Ai - built-in intelligence | Built-in intelligent image recognition and analysis algorithms |
| AI - Perimeter Protection | Entering the zone, crossing the line |
| Ai — objekta atpazīšana atpazīšana | Personas/transportlīdzekļa atpazīšana ielaušanās gadījumā zonā vai līnijas šķērsošanas gadījumā samazina viltus trauksmes aktivizēšanu. |
| Artificial Intelligence — SMD | SMD 4.0 |
| Automation features | 300 iepriekš iestatīti iestatījumi, 8 maršruti (32 iepriekš iestatīti katrā), 5 ceļi, 5 skenējumi |
| Artificial Intelligence – Built-in Intelligent Functions | Built-in intelligent image recognition and analysis algorithms |
| Artificial Intelligence - Perimeter Protection | Zonas ielaušanās, līnijas šķērsošana, ātra pārvietošanās, klaiņošana, pūļa noteikšana, stāvvietu noteikšana |
| Artificial Intelligence - Object Recognition | Personas/transportlīdzekļa atpazīšana ielaušanās, līnijas šķērsošanas un ātras kustības noteikšanai samazina viltus trauksmes signālu aktivizēšanu. |
| Mākslīgais intelekts — seja Atklāšana | Sejas noteikšana un izsekošana, sejas uztveršana, sejas atribūtu un izteiksmju atpazīšana |
| Mākslīgais intelekts – SMD | SMD |
| Included accessories | Wall mount |
5 trases, 5 skenējumi
