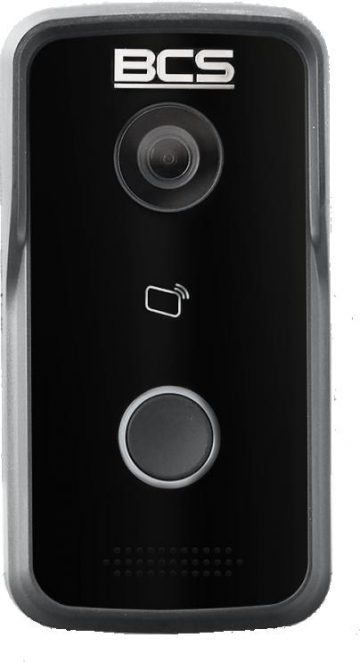

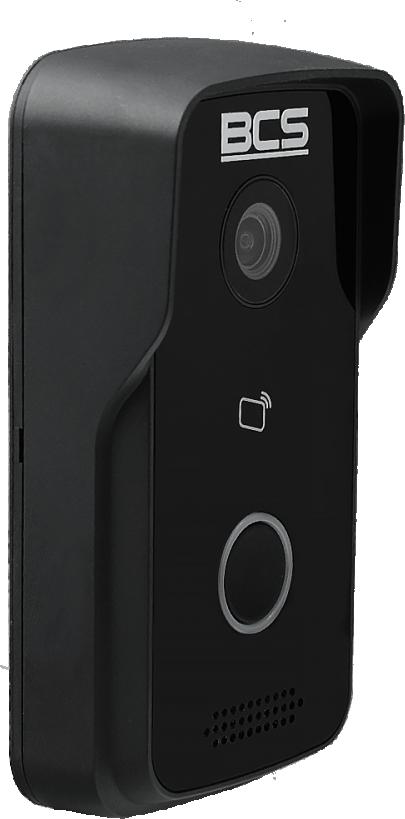

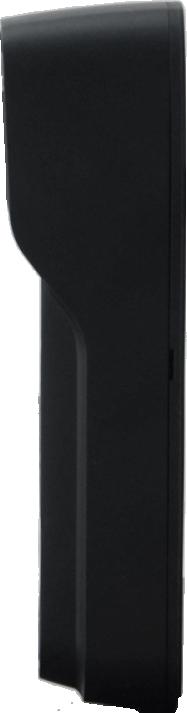

BCS Line BCS-PAN1320B-S Gateway Station
Key features
- One call button with LED lighting
- HD CMOS sensor 1/2.8″
- Camera viewing angle: 1.5 mm: 107°/60° (H/V)
- Built-in Mifare contactless reader 13.56 MHz
- Surface mounting, built-in canopy
- Management via web service
- Video recording on BCS DVR: Private protocol, Onvif or RTSP (depending on DVR series)
- Material: PC + acrylic, black body
- Water resistance: IP65 (after additional sealing, see: installation instructions)
- Relief output NO/NC/COM
- Independent gate or wicket control with various contactless cards/key fobs
- ./li>
- RS485 output for connecting an additional relay module (BCS-MODKD-III)
- Ethernet port 10/100 Mbps auto-adaptive
- Charging: 12V DC 1A or PoE 802.3 at/af/passive (in case of PoE power supply, additional power supply for the electric door opener is required)
- Free BCS Line mobile app for Android and iOS
- To use the mobile app, you need to install a video monitor indoors.
Technical specification
| Name of the trip | BCS-PAN1320B-S | .Product line | BCS LINE |
| Accessory type | There is a device type | Inner panel | |
| Number of call buttons | Number of call buttons | 1 | |
| System type | IP | ||
| Alert reader | Yes, Mifare 13.56 MHz | ||
| Keyboard | No | ||
| .Number of door opening codes | Not applicable | Fingerprint reader | |
| Display | No | ||
| .Information LEDs | No | ||
| Camera sensor | 1/2.8” CMOS | ||
| Camera resolution | 720p | ||
| Camera video compression | H.264, H.265 | Onvif support | Is | .Camera viewing angle horizontal | 107° |
| Panel lens | 2.2 mm | ||
| Lens adjustment | .No (no left/right adjustment) | ||
| Camera lighting | |||
| Ethernet socket type | Adapter included | ./td> | |
| Panel power supply type | 12V DC / PoE (802.3at/af/passive) | ||
| Network connection | LAN | Relay output | Network connection | NO/NC/COM |
| RS485 output | Yes (for connecting the BCS-MODKD2 module) | ||
| Power supply output 12V | 12VDC 200mA (only for relay module) | ||
| Wygand exit | |||
| Panel color | Black | Panel dimensions (mm) | 135.1 × 70.6 × 34.6 | Panel weight (g) | 326 | .Installation method | Surface mounting | Mobile application support | .Yes (video monitor installation required) |
| Construction material | PC + acrylic | ./td> | |
| Operating conditions (temperature) | -30°C ~ +60°C | ||
| IP65 | |||
| Vandal resistance class | |||
| Vandal resistance class.td>IK04 | |||
| Maximum power consumption | 5W | ||
| .Number of rooms served | 1 |
