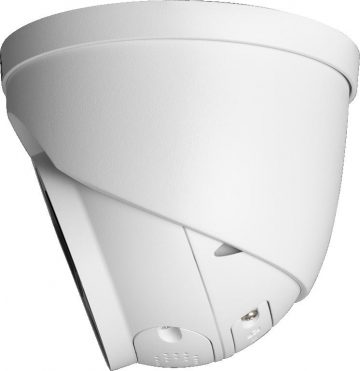

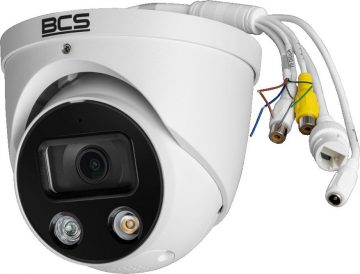

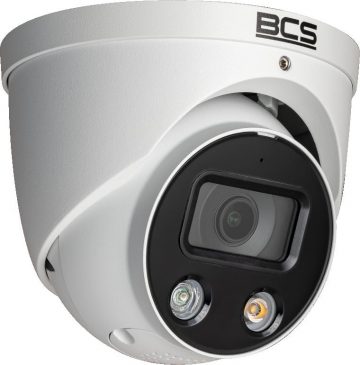

BCS LINE IP camera BCS-L-EIP55FCR3L3-Ai1(3)
.
Main features
- 5Mpx IP dome camera
- Processor 1/2.7″ PS CMOS
- NightColor technology
- ADC technology
- Fixed lens 2.8 mm
- WDR120dB
- IR 30 m, WhiteLight 30 m
- .Alarm 1/1, audio 1/1, microphone, speaker
- Installation IP67
- Built-in intelligent functions
Technical specification
| Name of the trip | BCS-L-EIP55FCR3L3-Ai1(3) | Product line | BCS LINE |
| Camera type | Camera type | ||
| .Resolution | 5 Mpx | ||
| Processor | 1/2.7” CMOS | ||
| Scanning system | Progressive scan | ||
| Progressive scan./tr> | |||
| Pixels | 2960(H)×1688(V) | ||
| RAM | Memory | 256MB | |
| ROM | 1GB | ||
| Lens | Fixed | Focal length | 2.8 mm |
| Aperture | F1.0 | ||
| Focus | Fixed | ||
| Iris | Fixed | Fixed | Digital zoom | 16× |
| Viewing angle | H: 97°, W: 70°, D: 128° | ||
| DORI | Detect 66 m / Observe 26 m / Recognize 13 m / Identify 7 m | Camera sensitivity | 0.003Lux (color, F1.0, 30IRE), 0.0003Lux (F1.0, B/W, 30IRE), 0Lux (IR) |
| S/N ratio | 56dB | ||
| White balance | White balance/td> | (AWB) Automatic / Manual | |
| WDR | 120dB | ||
| Background compensation | Compensation/td> | BLC / HLC / WDR (120 dB) / SSA | |
| Switch | Auto/Manual 1/3~1/100000s | ||
| Gain control | (AGC) Automatic/Manual | ||
| Noise reduction | 3D DNA | ||
| LDC | Lens distortion correction | ||
| ROI | Area of interest | ||
| Defogging | Electronic | ||
| Exceptional rotation | |||
| Exceptional rotation | Scissors, cutting 0°/90°/180°/270° | ||
| Number of streams | 3 | ||
| Number of streams | 3 | ||
| Resultstr> | Results | 5M (2960×1668, 2880×1620) / 4M (2688×1520, 2560×1440) / 3M (2048×1536, 2304×1296) / 2M (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576, 704×480) / VGA (640×480) / CIF (352×288, 352×240) | |
| Main streams | 2960×1668 (1~20fps), 2880×1620 (1~20fps), 2688×1520 (1~30fps) | ||
| Open stream | 704×576 / 704×480 (1~25/30 frames per second) | ||
| 1920×1080 (1~25/30 frames per second) | |||
| Bitrate | H.264: 3kbps~16384kbps, H.265: 3kbps~16384kbps | ||
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai encoding | ||
| Day/night | ICR mechanical infrared filter | Day/night/etc> | Illuminator type | IR LED + white light | Porthole/td> |
| Infrared emitter | 30 m | ||
| NightColor | Is | Microphone | Is |
| Speaker | Is | ||
| Active Repellent Function ADC | Optical/audible signal | ||
| Audio input | 1 | ||
| .Audio output | 1 | ||
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM | ||
| Alarm input | 1 | ||
| Alarm output | Warning output/td> | 1 | |
| Storage | FTP, SFTP, NAS | ||
| microSD 256GB | |||
| Service | .Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) | ||
| Motion detection | 4 | ||
| Privacy masks | 4 | ||
| Network | .RJ-45 10/100 Mbps | ||
| Compatibility | ONVIF (S/G/T) | ||
| Protocols | Complex | Complexes/td> | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P< | Security | HTTPS, SSL, RTSP/TLS, A/V encryption, IEEE802.1X, Login authentication, CA cert, Firewall, IP/MAC filter, Account lockout, Anti-DoS attack, SYN/ICMP flood attack protection, Security alert, Trusted launch/execution, Secure Shell, Config file encryption, Session security |
| Power Type | 12VDC / PoE (802.3af) | ||
| Floor consumption | max. 8.8 W | ||
| Color of the layer | white | ||
| Interior protection class | IP67 | Iep67 | Round/td> | Working conditions | -40°C~+60°C, maximum 95% relative humidity | Dimensions | Ø122×110.9 mm |
| Weight | 0.75 kg | ||
| Ai – Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms | Ai – Built-in intelligent functions | Ai – Perimeter Protection | Impact in the zone, crossing the line |
| Ai – Object Recognition | Person/vehicle recognition to prevent intrusion, line crossing, and reduce false alarms | Development/td> | |
| Ai – SMD – Intelligent Motion Detection | SMD 4.0 |
