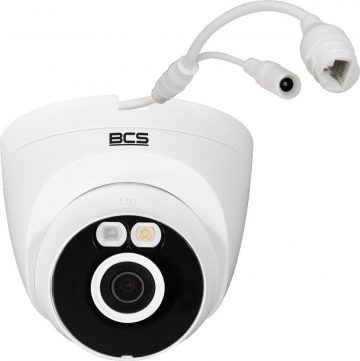

BCS LINE BCS-L-EHOME01 kamera
Main functions
- 4 Mpx external WiFi camera
- Microphone/speaker
- Artificial intelligence functions with human recognition function
- Alarm notifications
- Colourful image around the clock using LED
- Dual LED and IR illuminator (30 m)
- IP67 housing
BCS Manager mobile app
BCS Manager is a free app version for operating IP industrial television systems on mobile phones with Android and iOS. It allows you to view BCS NVR/XVR devices.
BCS Manager works both in the local Wi-Fi network and in the GSM network. It allows you to connect to devices that are available on the Internet using a fixed IP address or the P2P BCS cloud service (P2P BCS cloud requires appropriate device preparation).
Technical specifications
| Device name | BCS-L-EHOME01 |
| Product line | BCS LINE |
| Camera type | HOME |
| Resolution | 4 Mpx |
| Sensors | |
| Pixels | 2560(H)×1440(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Opening | F1.6 |
| Focus | Fixed |
| Shutter | Fixed |
| Viewing angle | A: 98° W: 55° D: 115° |
| White Balance | Automatic |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Image rotation | Rotate 180° |
| Number of streams | 2 |
| Resolutions | 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / 640×480 |
| Mainstream | 2560×1440@125/30 fps, 1920×1080@125/30 fps, 1280×960@125/30 fps, 1280×720@125/30 fps |
| Secondary stream | 640×480@1~25/30fps |
| Bit rate | H.264: 324096 kbps, H.265: 124096 kbps |
| Video compression | H.264B / H.264 / H.264H / H.265 |
| Day / Night | ICR mechanical IR filter |
| Illuminator type | |
| Illuminator | 30 m |
| Microphone | Yes |
| Loudspeaker | Yes |
| ADC active deterrence function | Optical and audio alarm |
| Audio compression | PCM / G.711a / G.711Mu / G.726 |

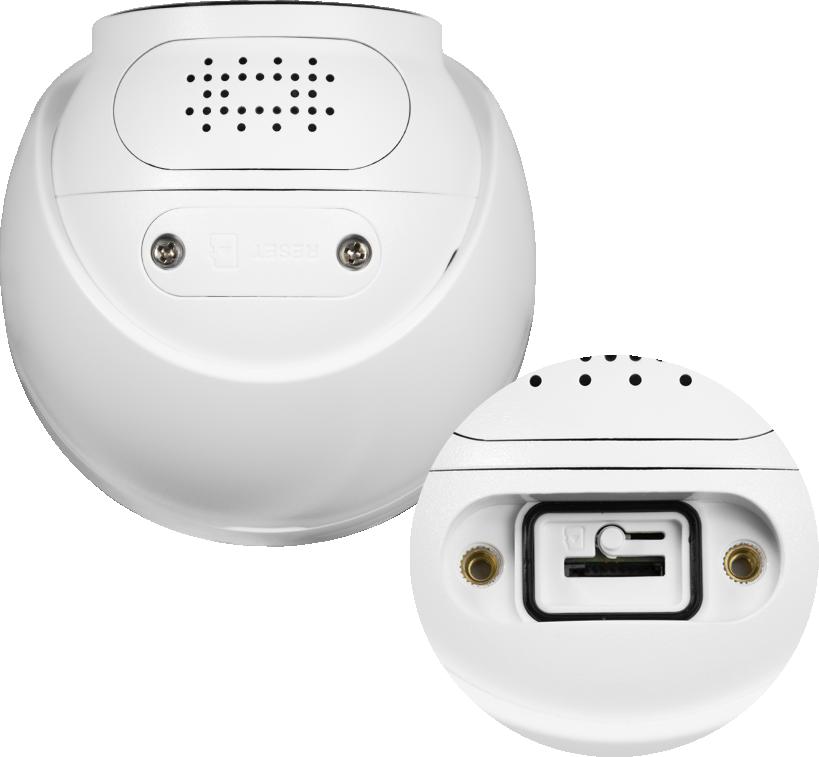

| Memory card slot | microSD 256 GB |
| Support | Mobile app (iOS, Android) |
| Motion detection | Yes |
| Network | RJ-45 10/100Mbps |
| Wi-Fi | |
| Power source type | 12 V DC |
| Energy consumption | maks. 7,1 W |
| Color Body | White |
| IP protection class | IP67 |
| Operating conditions | -40°C~+60°C max. 95% relative humidity |
| Dimensions | Ø109,9×102,2 mm |
| Weight | 0.35 kg |
| Artificial Intelligence – Built-in Intelligent Functions | Human presence detection reduces false alarms |
| Accessories included | Power source |
