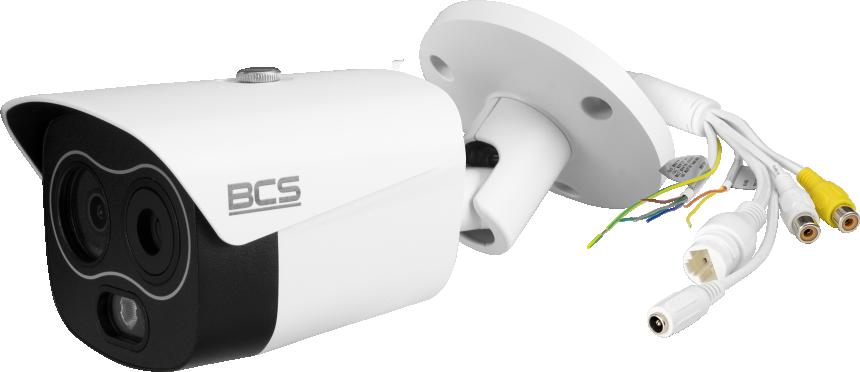

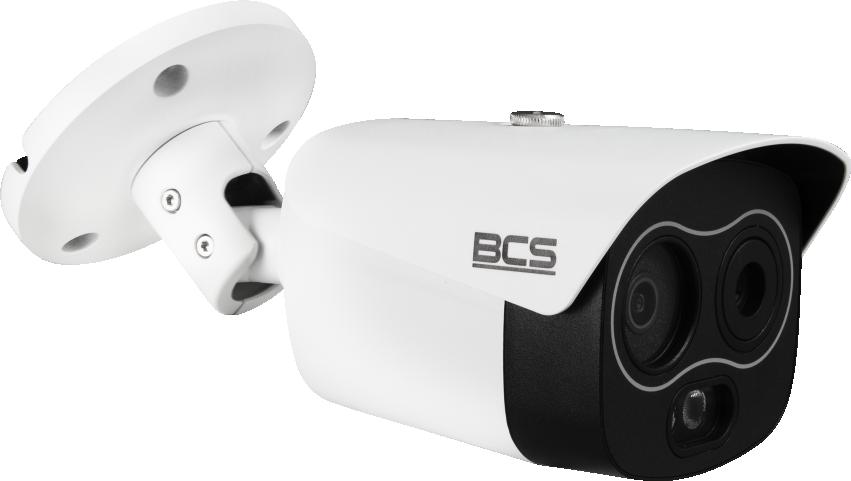

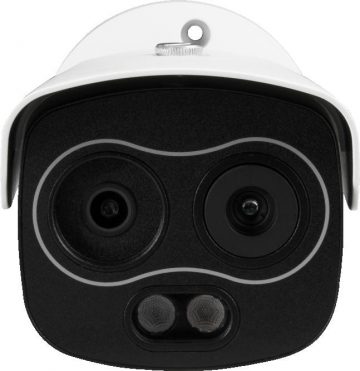

BCS LINE kamera BCS-L-TIP242FR3-TH-Ai1(0403)
Modelis: BCS-L-TIP242FR3-TH-Ai1(0403)
Atslēga Funkcijas:

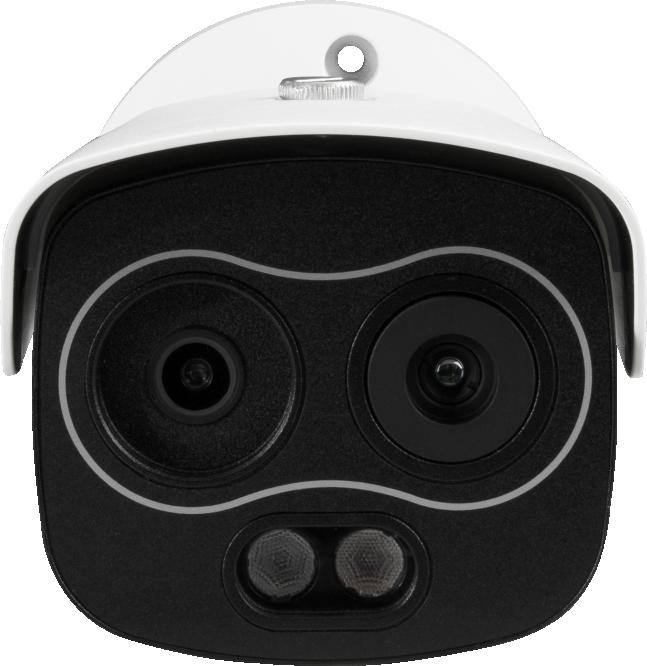

Divu sensoru IP lodveida kamera, termiskā 256×192 / vizuālā 4Mpx ar 3,5 mm termiskajām un 4 mm vizuālajām lēcām.
Technical specifications
| Device name | BCS-L-TIP242FR3-TH-Ai1(0403) |
| Product line | BCS LINE |
| Camera type | Termovīzija |
| Resolution | 4 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 2336(H)×1752(V) |
| Lens | Fixed |
| Focal length | 4mm |
| Opening | F1.6 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 71,2° V: 52° D: 92,6° |
| Camera sensitivity | 0,05 luksi 0.005 luksu (melnbalts) 0 luksu (infrasarkanais) |
| Signal to noise ratio | 55 dB |
| White balance | (AWB) Automātisks / Manuāls |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter speed | Automātiski / Manuāls 1–1/30000 s |
| Pastiprinājuma vadība | (AGC) Automātiski / Manuāls |
| Noise reduction | |
| 2D/3D DNR | |
| Attēla apgriešana | Apgriešana 90° / 180° / 270° |
| Number of streams | 2 |
| Resolutions | 4M(2336×1752) / 2M(1920×1080) / 720P(1280×720) /D1(704×576) / CIF(252×288) |
| Mainstream | 2336×1752(25/30 kadri/s) 1920×1080(25/30 kadri/s) 1280×720(25/30 kadri/s) 704×576(25/30 kadri/s) |
| Sekunde Straume | 1280 × 720 (25/30 k/s) 704 × 576 (25/30 k/s) 352 × 288 (25/30 k/s) |
| Video compression | H.265 / H.264M / H.264H / H.264B / MJPEG |
| Day/Night | ICR |
| Illuminator type | IS |
| Illuminator | 30 m |
| 1 | |
| Audio output | 1 |
| Audio Kompresija | G.711a / G.711mu / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256 GB |
| Additional interfaces | RS485 |
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF |
| Protocols | HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Power supply type | 12 V līdzstrāva / PoE (802.3af) |
| Energy consumption | maks. 14 W |
| Body color | White |
| IP protection class | IP67 |
| Operating conditions | -30°C~+50°C maks. 95% relatīvais mitrums |
| Dimensions | 205,5 × 90,4 × 90,1 mm |
| Weight | 0.9 kg |
| Termokameras pārveidotājs | Fokusa attāluma detektora matricas mikrobolometra sensors ar aktīvu absorbējošu materiālu vanādija oksīda veidā Vox |
| Termokamera Izšķirtspēja | 256(H)×192(V) |
| Termokameras galvenā plūsma | 1280×960(25/30 kadri/s) 1024×768(25/30 kadri/s) 640×480(25/30 kadri/s) 256×192(25/30 kadri/s) |
| Termokameras otrā plūsma | 640×480(25/30 kadri/s) 256×192(25/30 kadri/s) |
| Termokameras objektīvs | 3,5 mm |
| Termokameras apertūra | |
| Termokameras skats Leņķis | A: 50,6° V 37,8° |
| DORI termokamera | Persona (transportlīdzeklis) Noteikšana 146(389) m / Atpazīšana 38(97) m / Identificēšana 19(49) m |
| Mērīšanas režīms | 12. punkts / 12. līnija / 12. zona |
| Ugunsgrēka atklāšana un trauksme | Yes |
| Saplūšanas funkcija | Yes |
| Izmērs pikseļi | 12 µm |
| Termiskā jutība | 50 mK |
| Spektrālais Reakcijas laiks | 8–14 µm |
| Artificial Intelligence – Built-in Intelligent Functions | Yes |
| Artificial Intelligence - Perimeter Protection | Yes |
| Artificial Intelligence - Object Recognition | Yes |
