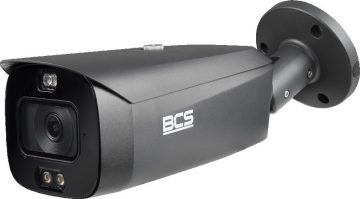

BCS LINE kamera BCS-L-TIP55FCR3L3-Ai1-G(2)
Modelis: BCS-L-TIP55FCR3L3-Ai1-G(2)
Key features:
- 5 Mpx IP lodveida kamera
- 1/2,7 collu PS CMOS sensors
- NightColor technology
- ADC technology
- 2.8mm fixed lens
- WDR120 dB
- IR 30 m, balta gaisma 30 m
- Signalizācija 1/1, audio 1/1, mikrofons, skaļrunis
- IP67 housing
- Built-in smart features
Technical specifications
| Name Devices | BCS-L-TIP55FCR3L3-Ai1-G(2) |
| Product line | BCS LINE |
| Kamera tips | Kameras elements |
| Resolution | 5 Mpx |
| Sensors | 1/2.7 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 2960(H)×1688(V) |
| RAM | 512MB |
| ROM | 128MB |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| Focus | Fixed |
| Closure | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 97° Vertikāls: 70° Dziļums: 128° |
| DORI | Noteikt 66 m/ Novērot 26 m/ Atpazīt 13 m/ Identificēt 7 m |
| Camera sensitivity | 0,003 luksi (krāsu, F1.0, 30IRE) 0,0003 luksi (F1.0, melnbalts,30IRE) 0 luksi (IR) |
| Signal-to-noise ratio | 56 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Auto/Manual 1/3~1/100000 s |
| Pastiprinājuma vadība | (AGC) Automātiski / manuāli |
| Noise reduction | 3D DNA |
| Fog prevention | Electronic |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 5M(2960×1668)(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1,3M(1280×960) / 720P(1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Mainstream | 2960×1668 (1~20 kadri/s) 2880×1620 (1~20 kadri/s) 2688×1520 (1~30 kadri/s) |
| Second stream | 704×576/704×480 (1~25/30 kadri/s) |
| Third stream | 1920×1080 (1~25/30 kadri/s) |
| Bit rate | H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / AI kodēšana |
| Day/night | ICR mehāniskais IR griezuma filtrs |
| Illuminator type | IR LED + balta Gaisma |
| Illuminator | 30 m |
| Night color | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Active deterrence function | Vizuāls un audio trauksmes signāls |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Ieeja trauksme | 1 |
| Alarm output | 1 |

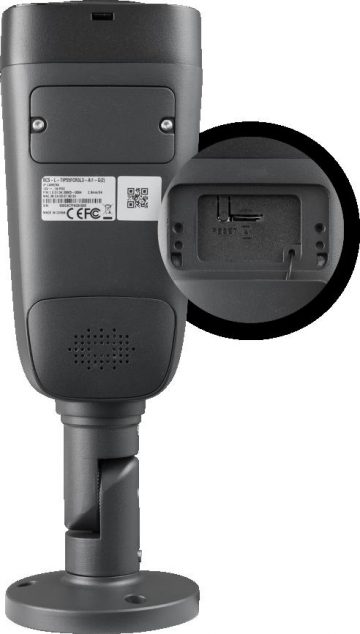

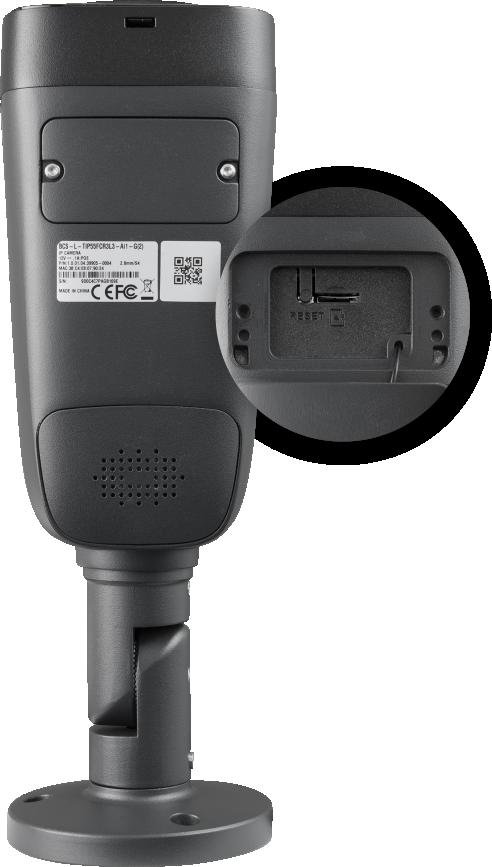

| Memory card slot | microSD 256 GB |
| Service | Tīmekļa pakalpojums,CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | |
| Power source type | 12V V / PoE (802.3af) |
| Energy consumption | maks. 8,2 W |
| Body color | Graphite |
| IP protection class | IP67 |
| Operating conditions | -40 °C–+60 °C maks. 95 % relatīvais mitrums |
| Dimensions | 288,4 × 94,4 × 84,7 mm |
| Weight | 1kg |
| Ai — iebūvētas funkcijas inteliģents | Built-in intelligent image recognition and analysis algorithms |
| Artificial Intelligence - Perimeter Protection | Ieeja zonā, šķērsojot līniju |
| Artificial Intelligence - Object Recognition | Personas/transportlīdzekļa atpazīšana, ja ielaušanās zonā, šķērsojot līniju, samazina viltus trauksmes signālu skaitu. |
| Artificial Intelligence — SMD | SMD 4.0 |
