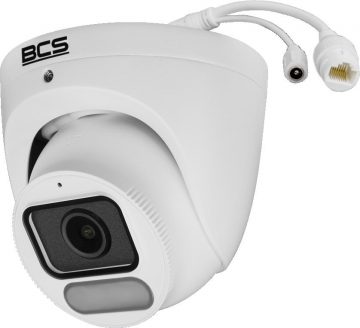

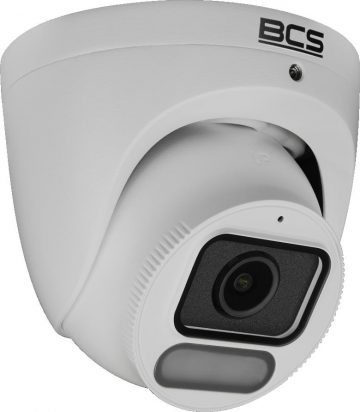

BCS POINT BCS-P-EIP26FCL3-Ai1 camera
Main functions
- 6MP dome IP camera
- 1/1.8″ PS CMOS sensor
- NightColor technology
- NDAA compliance
- 2.8mm fixed Lens
- WDR120dB
- Microphone
- White light 30m
- IP67 housing
- Built-in smart features
BCS Manager mobile app
BCS Manager is a free app version for operating IP CCTV systems on mobile phones with Android and iOS systems. It allows you to view BCS NVR/XVR devices.
BCS Manager works both in the local Wi-Fi network and in the GSM network. It allows you to connect to devices that are displayed on the Internet using a fixed IP address or the P2P BCS cloud service (P2P BCS cloud requires appropriate device preparation).
BCS POINT – NDAA Class Reliability and Security
BCS POINT series devices comply with NDAA requirements, which confirms their high manufacturing standards and compliance with international security standards. It is an ideal choice for applications in government agencies, critical infrastructure and anywhere where complete control over system security is important.
Additional accessories:
Technical specifications
| Device name | BCS-P-EIP26FCL3-Ai1 |
| Product line | BCS POINT |
| NDAA | |
| Camera Type | Dome-shaped |
| Resolution | 6 Mpx |
| Sensors | 1/1.8 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 3072(H)×2048(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 110.4°, W: 60.5°, D: 115.2° |
| DORI | Determine 43 m / Observe 17 m / Recognize 9 m / Identify 4 m |
| Camera sensitivity | 0.0003 lux (F1.0, AGC) |
| Signal-to-noise ratio | 52 dB |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter speed | Automatic / Manual 1~1/100000 s |
| Gain Control (AGC) | Automatic / manual |
| Noise reduction | 2D/3D DNR |
| ROI | Region of interest |
| Fog prevention | Digital |
| Image rotation | Mirror, rotation 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolution | From 6M (3072×2048) to CIF (352×288) |
| Mainstream | 3072×2048@25fps, 2688×1520@25fps, 2560×1440@25fps, 2304×1296@30fps, 1920×1080@30fps |
| Second stream | 1280×720@30fps, 720×576@30fps, 640×360@30fps, 704×288@30fps, 352×288@30fps |
| Bit rate | |
| Video Compression | H.265 / H.265+ / H.264 / MJPEG |
| Type illuminator | White light |
| Illuminator | 30 m |
| NightColor | NightColor 2.0 |
| Microphone | Yes |
| G.711A / G.711U | |
| Memory | NAS (NFS) |
| Memory card slot | microSD up to 512 GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP,DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, etc. |
| Security | Enhanced security: HTTPS, strong passwords, TLS 1.2, login actions |
| Power source type | 12VDC / PoE (802.3af) |
| Energy consumption | max. 2.8 W |
| Body color | White |
| IP protection class | IP67 |
| Surge protection | 4 kV |
| Working conditions | -30 °C–+60 °C, max. 95% relative humidity |
| Dimensions | Ø118 × 106 mm |
| Weight | 0.48 kg |
| Ai - built-in intelligence | Built-in image recognition and analysis algorithms |
| AI - Perimeter Protection | Entry into the territory, crossing the line |
| AI - Object Recognition |
