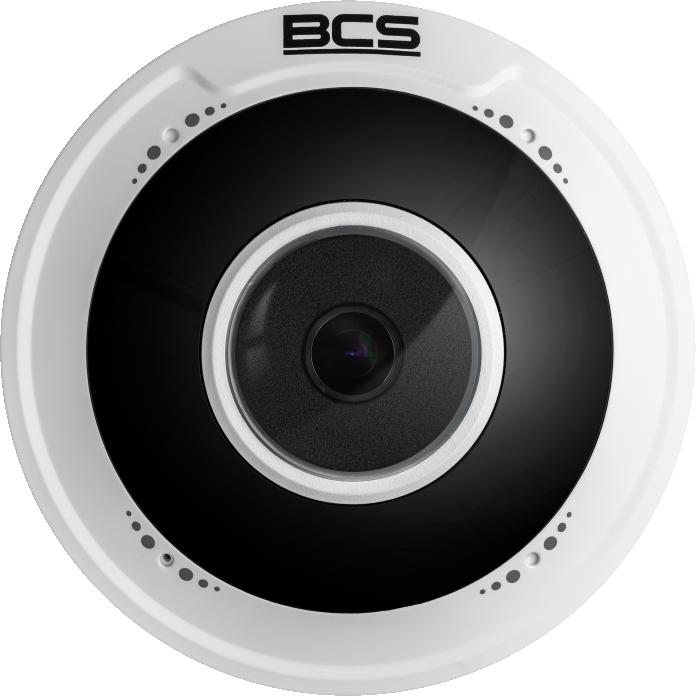

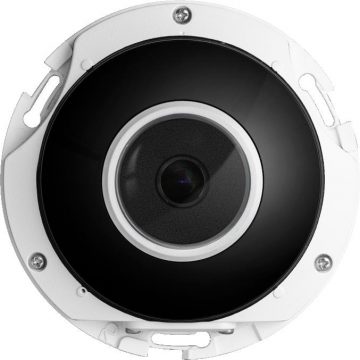

BCS POINT BCS-P-FIP25FWR1 camera
Main functions
- 5Mpx IP camera
- 1/2.8″ PS CMOS sensor
- NDAA compliant
- 1.4mm fisheye lens
- WDR120dB
- IS 10 m
- Microphone
- IP66, IK10 housing
Technical specification
| Device name |
BCS-P-FIP25FWR1 |
| Product line |
BCS POINT |
| NDAA |
National Defense Authorization Law |
| Type Cameras |
Fisheye |
| Resolution |
5 Mpx
| Sensors |
1/2.8” CMOS
| Scanning system |
Progressive scan |
| Pixels |
2880(H)×1620(V) |
| Lens |
Fisheye |
| Focal length |
1.4mm |
| Aperture |
F2.0 |
| Focus |
Fixed |
| Air |
Fixed |
| Digital zoom |
16× |
| Viewing angle |
H: 360° |
| DORI |
Detect 31 m / Observe 13 m / Recognize 6 m / Identify 3 m |
| Camera sensitivity |
0.01 lux (F2.0, AGC) 0 lux (F1.4, B/W, IR) |
| Signal to noise ratio |
55dB |
| White balance |
(AWB) Automatic / Manual |
| WDR |
120dB |
| Backlight compensation |
BLC/HLC/WDR (120dB) |
| Shutter speed |
Automatic / manual 1~1/100000s |
| Gain control |
(AGC) Automatic/Manual |
| Noise reduction |
2D/3D DNR |
| Rotation
| Mirror, 180° rotation |
| Number of streams |
3 |
| Resolutions |
5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Mainstream |
2880×1620@30 fps 2560×1440@30 fps 2304×1296@30 fps 1920×1080@30 fps 1280×720@30 fps |
| Second stream |
1920×1080@30 fps 1280×720@30 fps 640×360@30 fps
| Third stream |
720×576@30 fps 640×360@30 fps 704×288@30 fps 352×288@30 fps
| Bit rate |
128Kbps~6144kbps
| Video compression |
H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night |
ICR |
| Illuminator type |
IR LEDs |
| Illuminator |
10 m |
| Microphone |
Yes |
| Audio compression |
G.711 |
| Card slot memory |
microSD 256 GB |
| Support |
web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection |
4 |
| Mask privacy |
4 |
| Network |
RJ-45 10/100Mbps |
| Compatibility |
ONVIF(S/G/T) |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Power source type |
12V DC / PoE(802.3af) |
| Energy consumption |
max. 8.5 W |
| Body color |
White |
| IP protection class |
IP66 |
| IK10 |
Yes |
| Operating conditions |
-30 °C~+60 °C max. 95 % relative humidity |
| Dimensions |
Ø125mm × 43.7mm |
| Weight |
0.36 kg |
