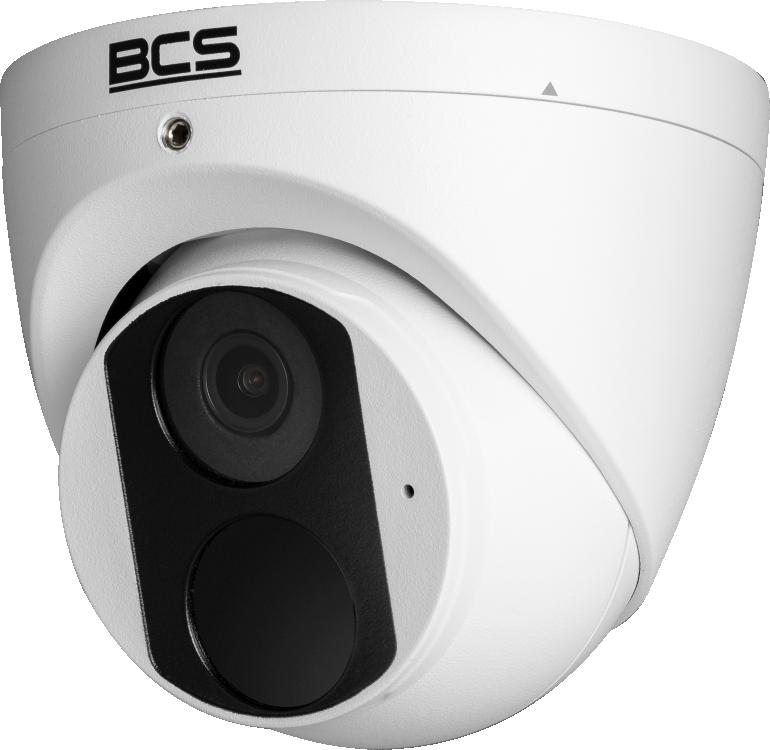

BCS POINT BCS-P-EIP14FSR3(2) camera
Main functions
- 4Mpx IP dome camera
- 1/3″ PS CMOS sensor
- SkyLight technology
- NDAA compliance
- 2.8mm fixed Lens
- WDR120dB
- IR 30m
- Microphone
- IP67 housing
BCS Cloud mobile app
App for device management BCS cloud service. Provides remote access, recording preview, playback and alarm information.
BCS Cloud – convenient operation from Android devices
The BCS Cloud device management app is an intuitive tool that allows you to remotely manage your surveillance system from your smartphone or tablet. Thanks to Android compatibility, users can access live video, browse archived recordings and receive notifications about alarm events at any time. This convenient solution increases security and allows you to fully control the system regardless of your location.
BCS POINT – NDAA Class Reliability and Security
BCS POINT series devices comply with NDAA requirements, which confirms their high manufacturing standards and compliance with international security standards. It is an excellent choice for applications in government agencies, critical infrastructure and anywhere where complete system security control is important.
Technical specifications
| Device name | BCS-P-EIP14FSR3(2) |
| Product line | BCS POINT |
| NDAA | National Defense Authorization Law |
| BCS Cloud Recording | Yes |
| Type Camera | Dome |
| Resolution | 4 Mpx |
| Sensors | 1/3” CMOS |
| Scanning system | Progressive scan |
| Pixels | 2688(H)×1520(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital Zoom | 16× |
| Viewing angle | H:97° vertical: 52.2° depth: 107.5° |
| DORI | Detect 63 m / Observe 25 m / Recognize 13 m / Identify 6 m |
| Camera sensitivity | 0.003 lux (F1.6, AGC), 0 lux (B&W, IR) |
| Signal-to-noise ratio | 52 dB |
| White balance | Automatic / Manual (AWB) |
| WDR | 120dB |
| Backlight compensation | BLC/HLC/WDR (120dB) |
| Shutter | Automatic / Manual 1~1/100000 s |
| Gain control | Automatic / Manual (AGC) |
| Noise reduction | 2D/3D DNR |
| RoI (Region of Interest) | Yes |
| Fog prevention | Digital |
| Image rotation | Mirror, rotation 0°/90°/180°/270° (corridor mode) |
| Quantity Streams | 2 |
| Resolutions | 4M (2688×1520 / 2560×1440), 3M, 2M, 720P, D1, 640×360, 2CIF, CIF |
| Mainstream | 2688×1520@25fps, 2560×1440@25fps, 2304×1296@30fps, 1920×1080@30fps |
| Second stream | 1280×720@30fps, 720×576@30fps, 640×360@30fps, 704×288@30fps, 352×288@30fps |
| Bit rate | 128Kbps~6144Kbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/Night | ICR |
| Illuminator type | |
| IR range | |
| Microphone | Yes |
| Audio compression | |
| Memory | |
| Memory card slot | microSD up to 512 GB |
| Support | Web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS,Android) |
| Motion detection | 4 zones |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP |
| Security | Password protection, strong password, HTTPS encryption, activity logs, digest and TLS authorization, WSSE |
| Power source type | 12V V / PoE (802.3af) |
| Energy consumption | max. 4.4 W |
| Body color | White |
| IP protection class | IP67 |
| Surge protection | 4 kV |
| Operating conditions | -30 °C–+60 °C, max. 95% relative humidity |
| Dimensions | Ø109 × 95 mm |
| Weight | 0.35 kg |
| Hull | Metal |
