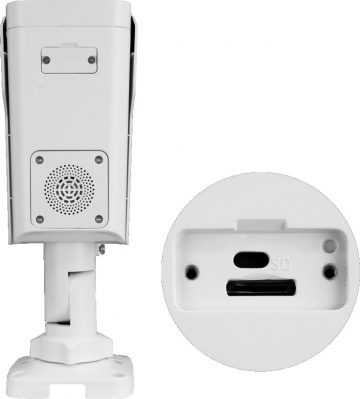

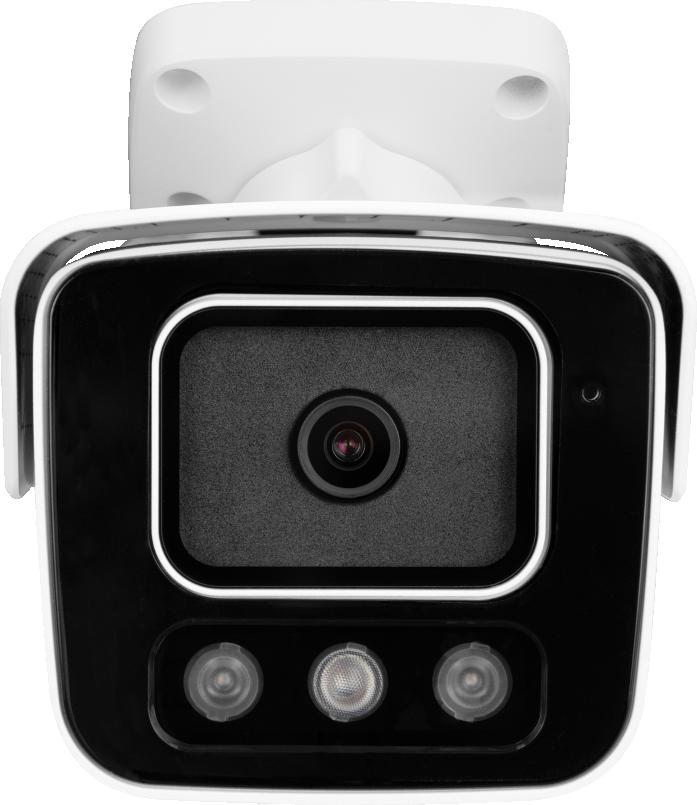

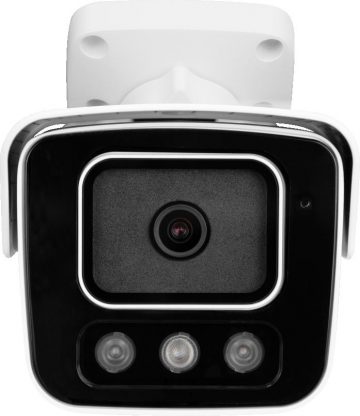

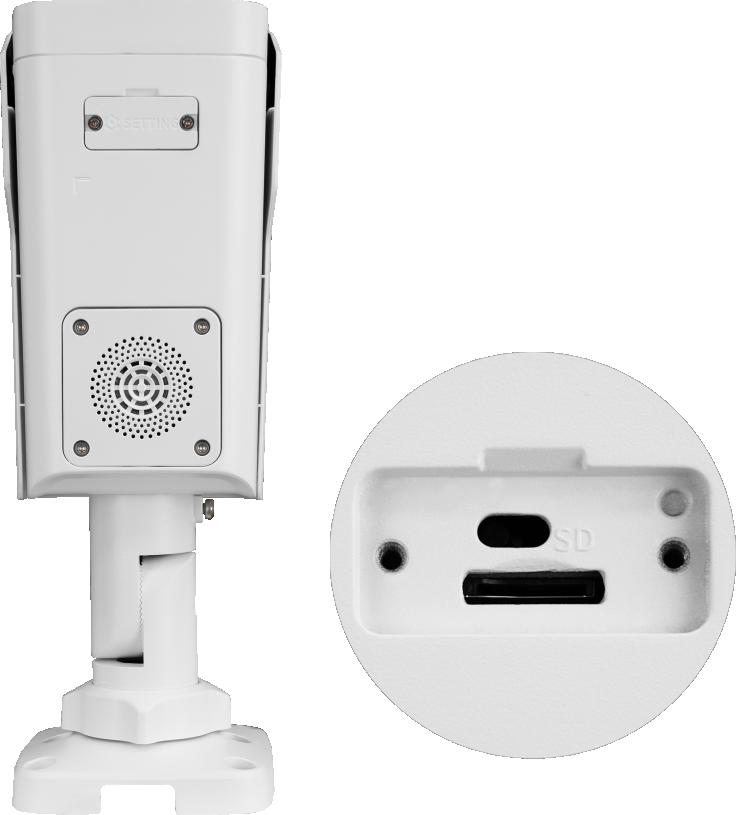

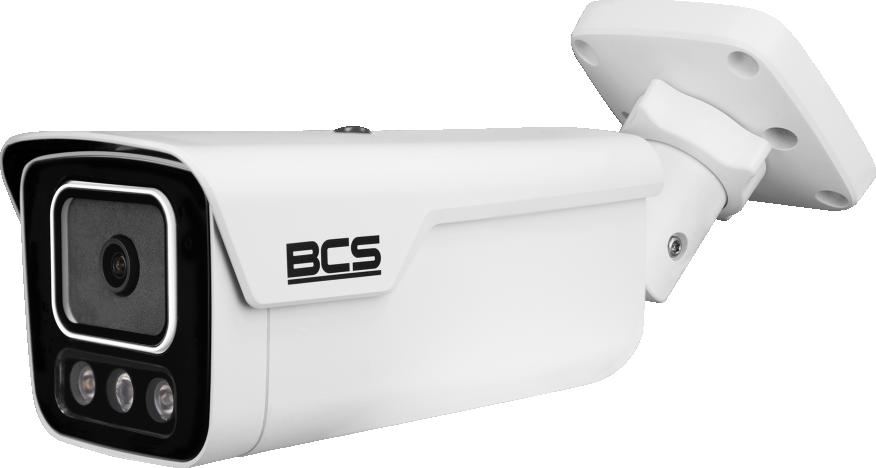

BCS POINT kamera BCS-P-TIP28FSR4L4-Ai2(2)
Description:
- 5Mpx IP lampu kamera
- 1/2.7″ PS pārveidotājs CMOS
- SkyLight technology
- NightColor technology
- ADC technology
- NDAA Atbilstošs
- 2.8mm fixed lens
- WDR130dB
- IR 40 m, balta gaisma 40 m
- Audio 1/1, trauksme 1/1
- Microphone, speaker
- IP67 housing
- Built-in smart features
BCS POINT – NDAA Class Reliability and Security
BCS POINT series devices comply with NDAA likuma prasībām, kas apliecina to augsto izgatavošanas standartu un atbilstību starptautiskajiem drošības standartiem. Tā ir ideāla izvēle lietošanai valsts iestādēs, kritiskajā infrastruktūrā un visur, kur ir svarīga pilnīga sistēmas drošības kontrole.
Technical specifications:
| Device name | BCS-P-TIP28FSR4L4-Ai2(2) |
| Product line | BCS POINT |
| NDAA | National Defense Authorization Law |
| Camera type | Camera sensor |
| Resolution | |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Opening | F1.0 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 106,5° V: 57,9° D: 132° |
| DORI | Noteikt 87 m / Novērot 35 m / Atpazīt 17 m / Identificēt 9 m |
| Camera sensitivity | 0,001 lukss (F1.0, AGC), 0 lukss (melnbalts, IR) |
| Signal-to-noise ratio | 56 dB |
| White balance | Automātiski / manuāli (AWB) |
| WDR | 130 dB |
| Backlight compensation | BLC/HLC/WDR |
| Shutter speed | Automātiski / manuāli 1~1/100000 s |
| Gain control | Automātiska/manuāla (AGC) |
| Noise reduction | 2D/3D DNR |
| ROI | Region of interest |
| Fog prevention | Digital |
| Image rotation | Mirror, Rotation 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 8M / 5M / 4M / 2M / 720P / D1 / 640×360 / 2CIF / CIF |
| Mainstream | Līdz 3840×2160@30fps |
| Secondary stream | Līdz 1920×1080@30fps |
| Third stream | Līdz 720 × 576@30 kadri/s |
| Bit rate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/Night | ICR |
| Illuminator type | |
| IR diapazons / balta gaisma | 40 m / 40 m |
| Night color | Yes |
| Mikrofons / Skaļrunis | Jā / Jā |
| ADC funkcija | |
| Audio input/output | 45658 |
| Audio compression | G.711A / G.711U |
| Signalizācijas ieeja/izeja | 45658 |
| Memory | NAS (NFS) |
| Memory card slot | microSD up to 512 GB |
| Support | Tīmekļa pakalpojums, CMS BCS pārvaldnieks, mobilā lietotne |
| Kustības noteikšana/maskas Privātums | 45751 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, TCP/IP, HTTP(S), RTSP, SNMP utt. |
| Security | Paroles, HTTPS, TLS 1.2 utt. |
| Feeding | 12V DC / PoE (802.3af) |
| Energy consumption | max. 10 W |
| Body color | White |
| Hardness class | IP67 |
| Pārspriegums aizsardzība | 4kV |
| Operating conditions | -30°C~+60°C, maks. 95% relatīvais mitrums |
| Izmēri / Svars | 269 × 96 × 82 mm / 0.97 kg |
| Mākslīgais intelekts — funkcijas | Intelligent image analysis |
| Artificial Intelligence - Perimeter Protection | Ielaušanās / līnijas šķērsošana |
| Artificial Intelligence - Object Recognition | Personas / transportlīdzekļa — viltus trauksmes samazināšana |
| Artificial Intelligence - Human Census | Līnijas šķērsošana, ieejas / izejas |
