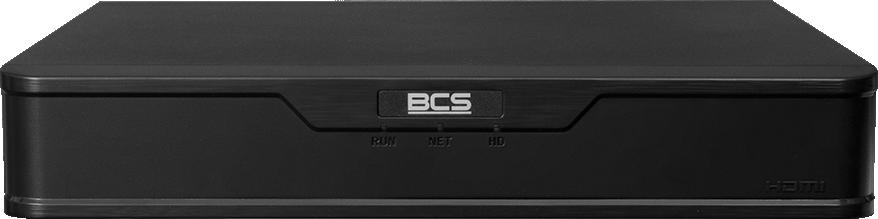

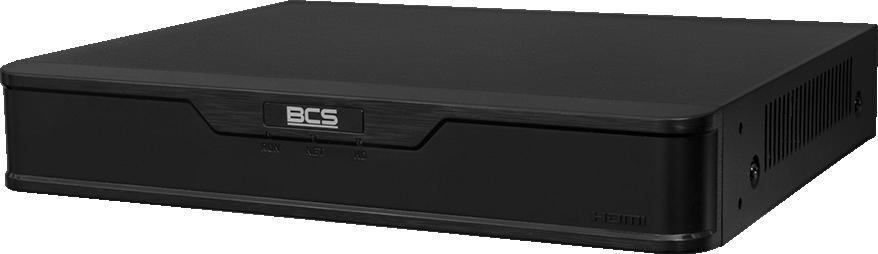

BCS POINT reģistrators BCS-P-NVR1601-4K(3)

* The appearance of the product may differ from what is shown in the picture

BCS POINT reģistrators BCS-P-NVR1601-4K(3)

Name: BCS POINT reģistrators BCS-P-NVR1601-4K(3)
SKU: 49262
Availability: OutOfStock

Preces kods: 49262

EAN: 5904890708372

Piegādes laiks: 8-10 Septembrī

Estimated Delivery Dates

125,43 €

Availability: 0

Apraksts
Additional information

BCS POINT DVR BCS-P-NVR1601-4K(3)

Key features

.li>16 kanālu IP DVR
NDAA compliant
Supports 1 hard drive

Patbalsta 8Mpx IP kameras
Audio 1/1
HDMI4K/VGA output

BCS Manager mobile app

BCS Manager is a free IP CCTV application for Android and iOS mobile phones. It allows you to view BCS brand NVR/XVR devices.

BCS Manager works in both local Wifi and GSM networks. Allows you to connect to devices exposed to the Internet using a fixed IP address or using the BCS P2P cloud service (the BCS P2P cloud service requires appropriate device preparation).

Technical specification

.td>VGA izeja.td>VGA displeja izšķirtspēja.tr>

.td>Audio izeja

Product name	.BCS-P-NVR1601-4K(3)
Product line	BCS POINT
NDAA	National Defense Authorization Act
System	IP
Pentaplex function	.td>Tiešā apskate, ierakstīšana, atskaņošana, arhivēšana, attālā piekļuve
Pentaplex funkcija.Kanāli	16
Disk support	1 disks, maks. ietilpība 8 TB
Max. recording resolution
Input bandwidth
Input bandwidth
	80 Mbps
Output bandwidth	64 Mbps
Displejera veiktspēja
Displejs/td>	4×8M(30 kadri sekundē) / 6×5M(30 kadri sekundē) / 8×4M(30 kadri sekundē) / 9×4M(25 kadri sekundē) / 10×3M(30 kadri sekundē) / 16×2M(30 kadri sekundē)
Izskaņošanas izšķirtspēja	8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF
Video compression	H.265+ / H.265 / H.264+ / H.264
HDMI 4K izeja	HDMI 4K
VGA
HDMI display resolution
HDMI display resolution
3840×2160, 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768
1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768	1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768	/td>
Izejas sadalījums	1/4/6/6/8/9/16
Playback	1/4/9/16
Archiving	Izskaņošana uz ārējiem datu nesējiem (USB Flash, USB HDD)
.Lietotāju atbalsts	128
Savienotnes	1×USB2.0, 1×USB3.0
Audio input	1
1
Audio compression	G.711A / G.711U
Remote control	Lokālais, tīmekļa pakalpojums, CMS BCS pārvaldnieks (Windows/Linux/MAC), mobilā lietotne (iOS, Android)
Network	RJ-45 10/100Mbps
Network
Compatibility	ONVIF(S/G/T), support for third-party cameras
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Elektropadeve	12 V līdzstrāvas spriegums
Power consumption (without discs)	maks. 6 W
Working conditions	-10°C ~ +55°C, maks. 90 % relatīvā mitruma	/td>
Set	1U
Dimensions (W×D×H)	260 × 222 × 47 mm
Weight (without discs)	0.98 kg

Additional information

Svars	1,0000 kg
