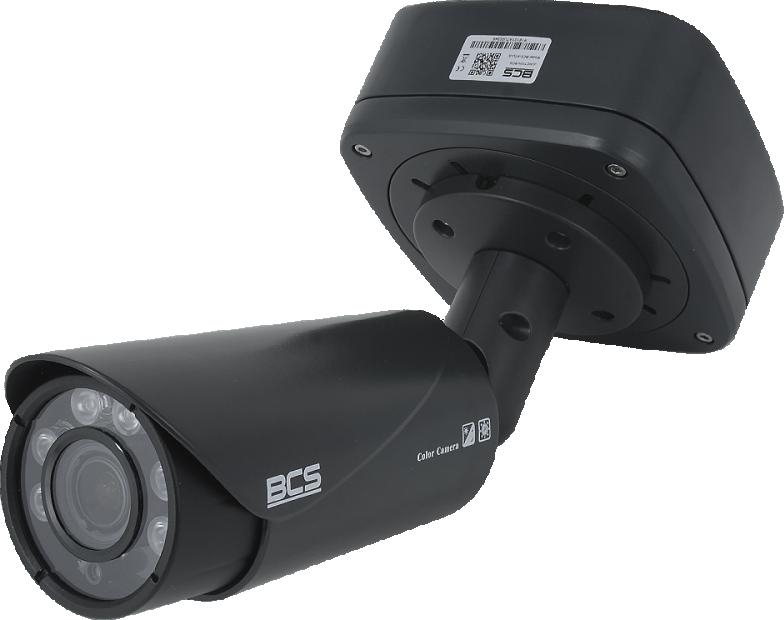

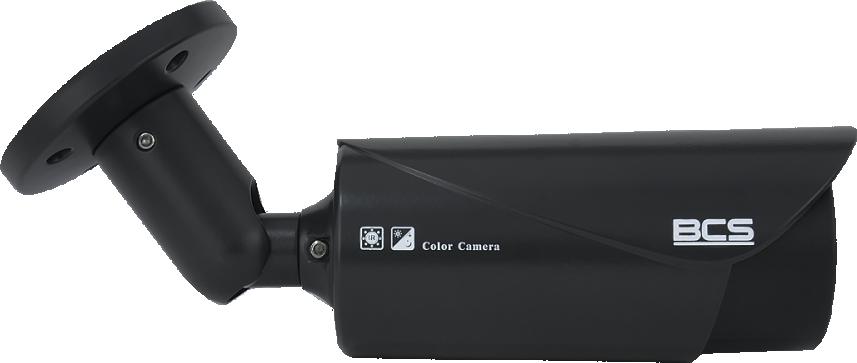

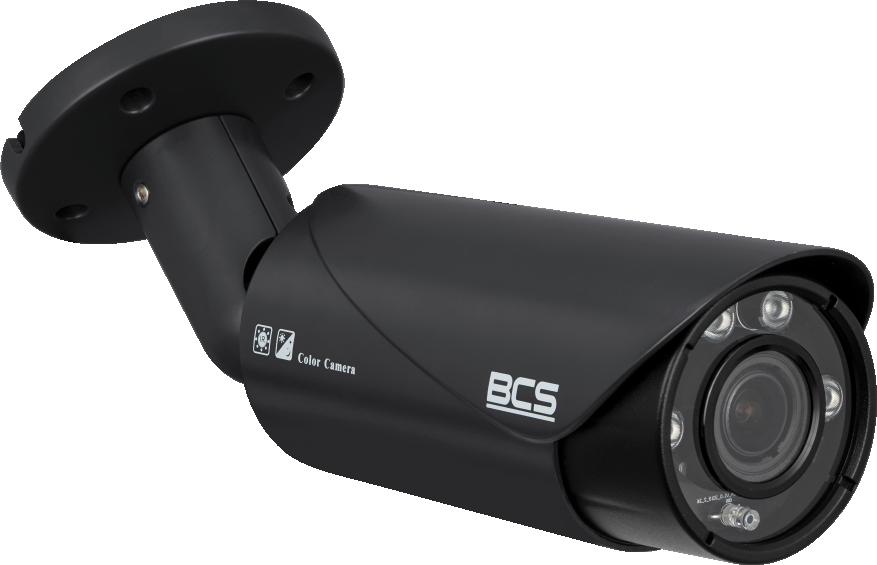

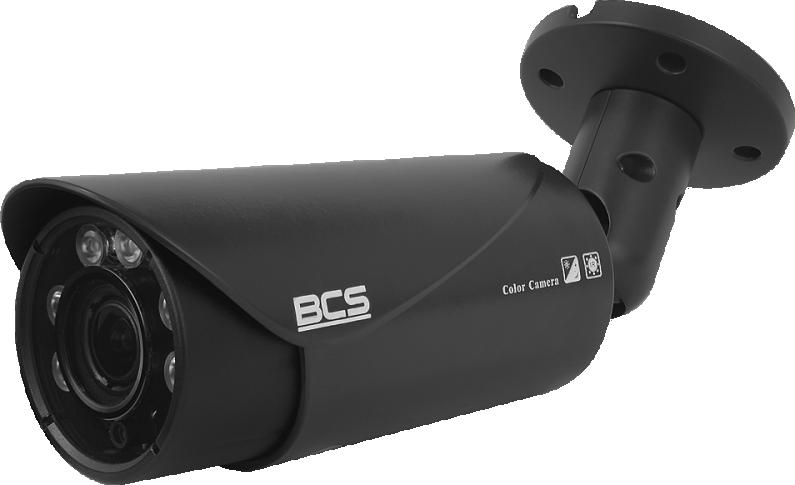

BCS UNIVERSAL kamera BCS-TA45VR5-G
Modelis: BCS-TA45VR5-G
Main functions
4 sistēmu lodveida kamera 5Mpx 1/2,5 collu sensors ar 3,3~12 mm varifokālu objektīvu objektīvs.
Technical specifications
| Device name | BCS-TA45VR5-G |
| Product line | BCS UNIVERSAL |
| Camera type | Tube |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOGAIS CVBS |
| Resolution | 5 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 2704(H)×1950(V) |
| Lens | Varifokāls |
| Focal length | 3,3–12 mm |
| Opening | F1.2 |
| Focus | Manual |
| Shutter | Automatic |
| Optical zoom | 3× |
| Viewing angle | H: 38°–120° |
| Kamera Jutība | 0,05 luksi (F1,2, AGC) 0 luksi (melnbalts,IR) |
| White balance | (AWB) Automatic / Manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Aizvara laiks | Automatic / manual |
| Gain control | (AGC) Automatic/Manual |
| Noise reduction | 3D DNA |
| Resolution | AHD/TVI 5M(2704×1950)@20fps AHD/TVI/CVI 4M(2560×1440)@25/30fps 2M(1920×1080)@25/30 kadri/s |
| Day/Night | ICR mechanical IR filter |
| Illuminator type | IR LEDs |
| Illuminator | 50 m |
| Operation | Support for settings in the camera OSD menu using the BCS-XVR recorder |
| Power source type | 12 V DC |
| Energy consumption | maks. 8 W |
| Color Body | Graphite |
| IP aizsardzība klase | IP66 |
| Operating conditions | – 20°~+60° max. 95% relative humidity |
| Dimensions | Ø274×78 mm |
| Weight | 0,75 kg |
