BCS-V-EIP24FCL3-AI2 BCS VIEW IP kameras kamera 4Mpx

* The appearance of the product may differ from what is shown in the picture

BCS-V-EIP24FCL3-AI2 BCS VIEW IP kameras kamera 4Mpx

Name: BCS-V-EIP24FCL3-AI2 BCS VIEW IP kameras kamera 4Mpx
SKU: 38151
Availability: OutOfStock

Preces kods: 38151

Piegādes laiks: 5-8 Septembrī

Estimated Delivery Dates

207,53 €

Availability: 0

Apraksts
Additional information

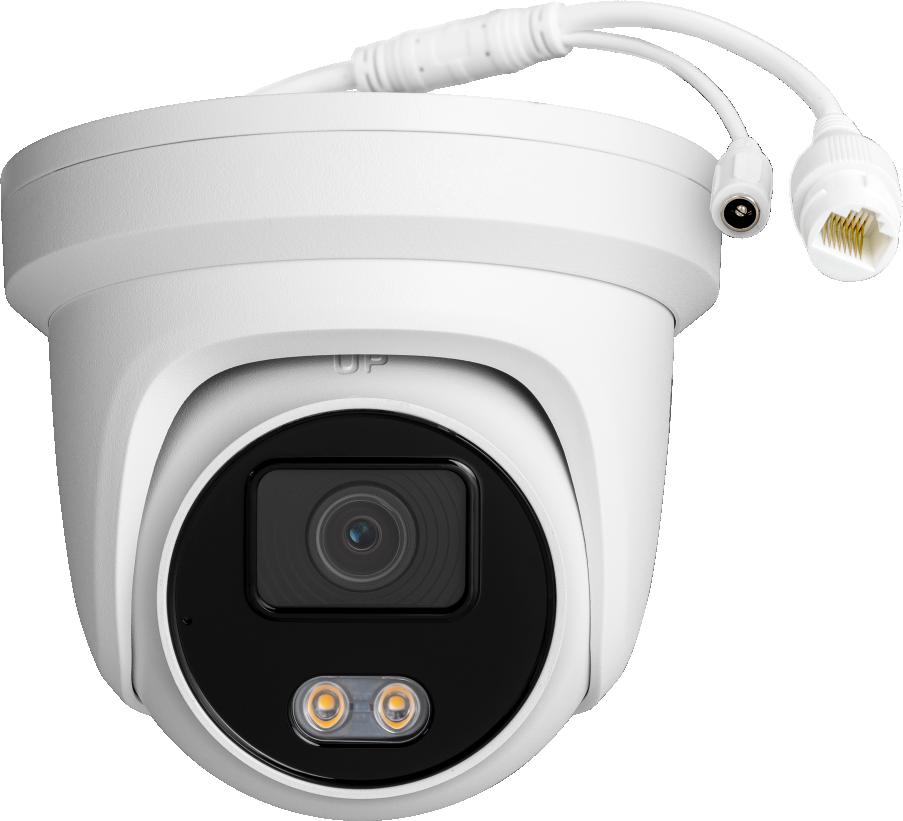

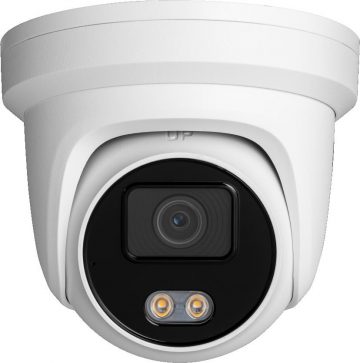

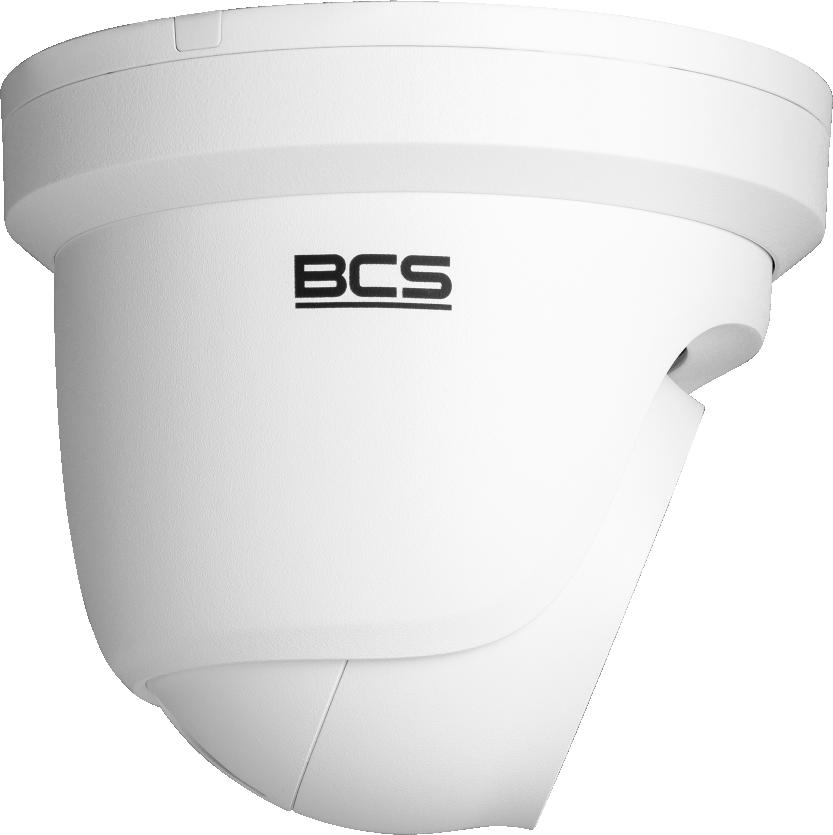

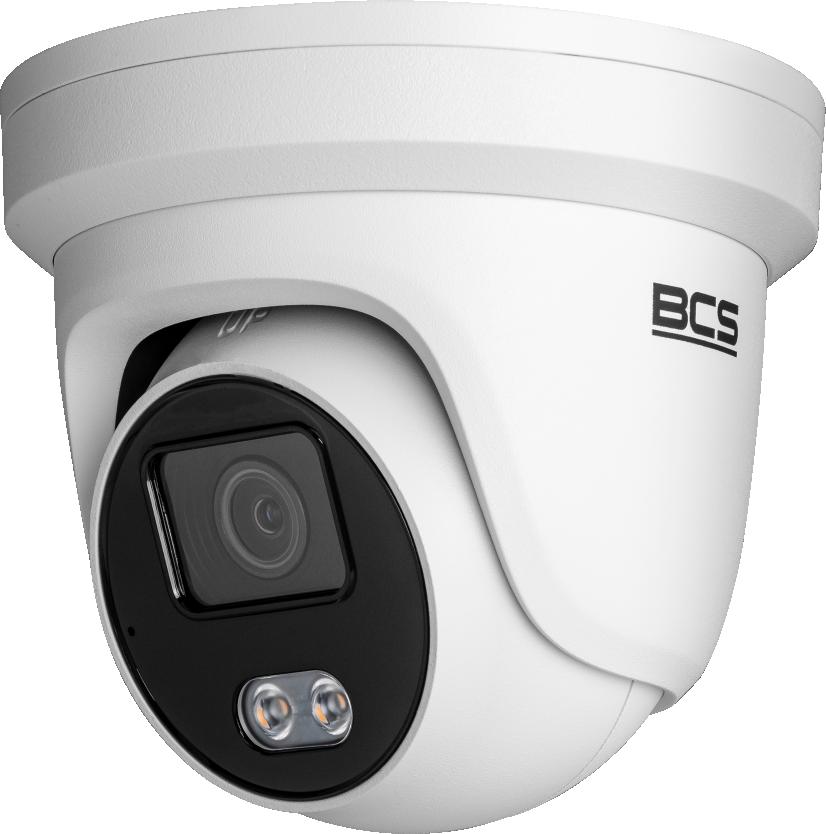

BCS-V-EIP24FCL3-AI2 BCS VIEW IP Dome kamera 4Mpx

.Galvenās funkcijas

4Mpx IP dome kamera
Processor 1/1.8″ PS CMOS
NightColor technology
AcuSense technology
ADC technology
Fixed lens 2.8 mm
WDR 130 dB
WhiteLight 30 m
Microphone
Housing IP67
Built-in smart features
Functions to be performed

BCS Manager mobile application

BCS Manager is a free version of the BCS Manager application for IP CCTV systems, designed for Android and iOS mobile phones. It allows you to view BCS brand NVR/XVR devices.

BCS Manager works in both local Wifi and GSM networks. Allows you to connect to devices exposed on the Internet using a fixed IP address or BCS P2P cloud service (BCS P2P cloud service requires appropriate device preparation).

Technical specification

Stream secondThird stream .td>Aktīvā atbaidīšanas funkcija.

<td

Product name	BCS-V-EIP24FCL3-Ai2
Product line	BCS VIEW
Camera type
Camera type
Kompols
Resolution	4 Mpx
Jutītājs	1/1.8” CMOS
Scanning system	Progressive scan
Pixels	2688(H)×1520(V)
Lens	Permanent
Focal length	2.8 mm
Aperture	F 1.0
Focus	Fixed
Iris	Fixed	Fixed
Digital zoom	16×
Viewing angle	H: 112° V: 61° D: 134°
DORI	Detektore 58 m / Oberve 23 m / Atpazīt 11 m / Identificēt 2 m	Atpazīt 2 m
Camera sensitivity	0.0005Lux(F1.0, AGC)
S/N ratio	52 dB
Baltas krāsas balanss	(AWB) Automatic / Manual
Automātisks / manuāls/td>
WDR	130dB
Background compensation	BLC / HLC / WDR(130dB)
Shutter release	automātiskā / manuālā 1/3~1/100000s
Gain control	(AGC) Automātiskā / manuālā
.
Noise reduction	3D DNA
Image rotation	Scissors
Number of streams	3
Results
Results
4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360)		Tr./td>
Main stream	2688×1520@30fps 1920×1080@30fps 1280×720@30fps
Divas straumes	640×480@30fps 640×360@30fps
640×480@30fps 640×360@30fps
1920×1080@10fps 1280×720@10fps 640×480@10fps 640×360@10fps	1920×1080@10fps/td>
Bitrate	32Kbps~8Mbps
Video compression	H.265 / H.265+ / H.264+ / MJPEG
Day/night	ICR
Illuminator type
Apgaismotāja veids/td>	Balta gaisma
Porthole	30 m
.NightColor	Is
Microphone	Is
Optiskā signalizācija
Audio compression	G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC

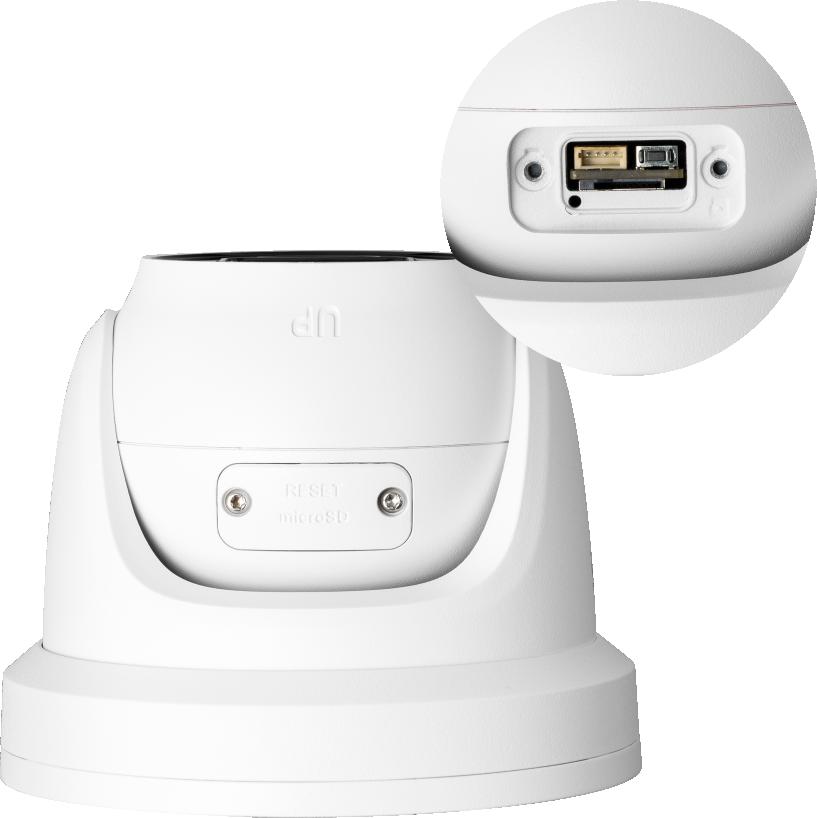

Memory card slot	microSD up to 256 GB
Service
Service
Pakalpojums.td>Web Service, CMS BCS Manager (Windows/Linux/MAC), mobilā lietotne (iOS, android)
Justības noteikšana	Is
Privacy masks	4
Network	RJ-45 10/100Mbps
Compatibility
Compatibility
ONVIF(S/G/T)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Uzlādes veids	12V DC / PoE (802.3af)
Floor consumption	maks. 7.6 W
Color of the layer	white
IP category	IP67	Uzņēmuma jauda	Ip/td>
Operating conditions	-30°C~+60°C, maks. 95 % relatīvā mitruma
Dimensions	Ø138.3×125,2 mm
Weight	0.75 kg
Ai – built-in intelligent functions	.Built-in intelligent image recognition and analysis algorithms
Ai – Perimeter Protection		.Perimeter intrusion, line crossing
Ai – Object Recognition	Recognition of persons/vehicles in case of perimeter intrusion, line crossing reduces the triggering of false alarms.
Ai – face detection	Face detection and tracking, face photo
