Technical Specification:
| Standard: | TCP/IP |
| Sensors: | 1/3” Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | 2688 x 1520 – 4 Mpx , 1920 x 1080 – 1080p , 1280x720 – 720p |
| Lens: | 2.8 … 12 mm F1.4 – Motozoom |
| Viewing angle: | 108 ° … 30 ° (ražotāja dati) 98 ° … 44 ° (mūsu pārbaudes) |
| Infrared illumination detection area: | 40 m |
| RS-485 interface: | - |

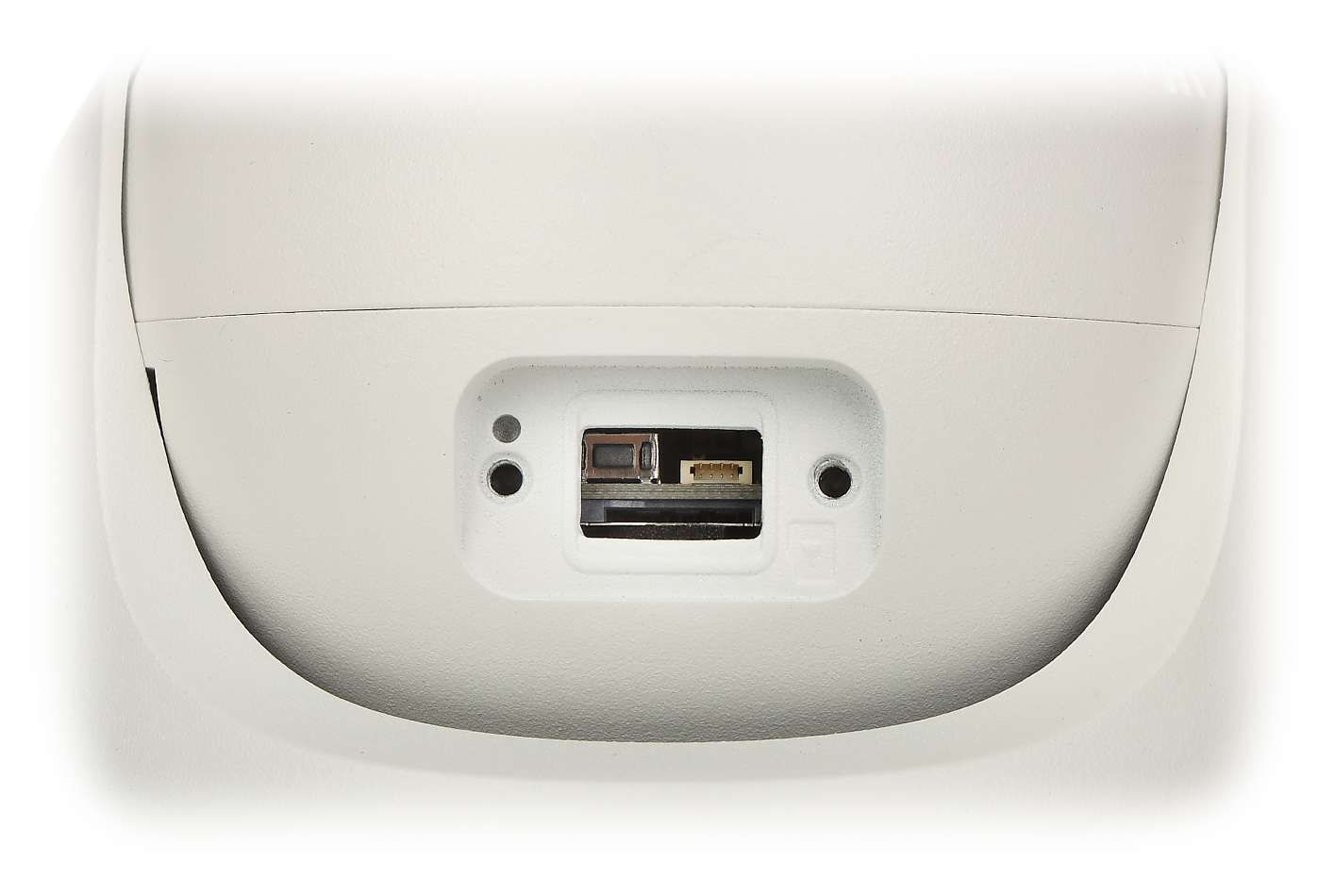

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Main stream transmission speed: | 25 frames per second @ 4 Mpx |

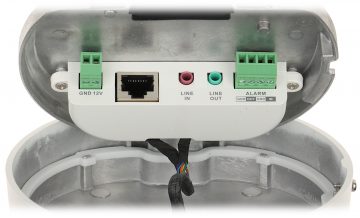

| Alarm inputs/outputs: | 1 / 1 |
| Audio: | External microphone input Audio output Two-way audio streaming support |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP , ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6 , Bonjour, UDP, SSL / TLS, P2P |
| WEB Server: | Built-in |
| Maximum number of online users: | 6 |
| ONVIF: | - |
| Mobile phone access: | Port: 8000 or cloud access Android: Free BCS View app iOS (iPhone): Free BCS View app |
| Default username/admin password: | admin / – |
| Default IP address: | 192.168.1.64 |
| Browser access ports: | 80 |
| Access ports using PC application: | Port: 8000 or access via cloud |
| Access ports using the mobile application: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | Main stream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ Substream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/ |
| Selected features: | WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija ROI – izvēlēto attēla fragmentu kvalitātes uzlabošana ICR – infrasarkano staru mehāniskais filtrs BLC/HLC – fona / spēcīgas gaismas kompensācija Dienas/nakts režīms (color/b&w/auto) Automātisks baltā balanss AutoFocus AGC – Automātiska attēla pastiprinājuma regulēšana AES – Automātisks elektriskais slēdzis Mirror – spoguļattēls Konfigurējamas privātuma zonas Kustības atklāšana Sharpness – Attēla kontūru asums Inteliģenta attēla analīze : ielaušanās , līnijas šķēršošana , ieejas laukumā / izejas no laukuma noteikšana, ainas maiņa , veido detekcija , objektu noteikšana (cilvēks, automašīna) Taustiņš RESET |
| Source of energy supply: | PoE (802.3af) , 12 V DC / 920 mA |
| Power consumption: | ≤ 12.5 W @ PoE (802.3af) ≤ 11 W @ 12 V DC |

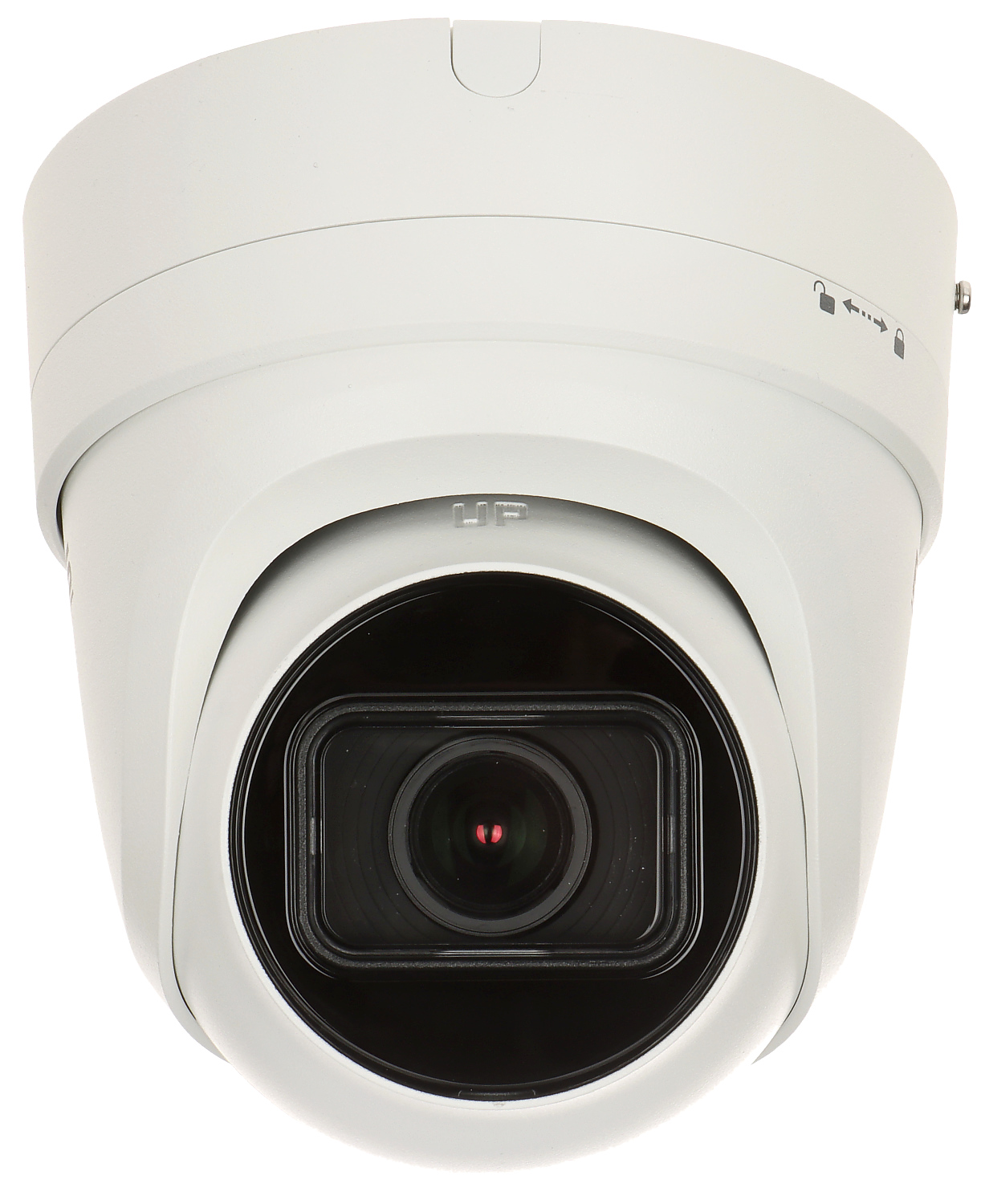

| Housing: | Dome – Metal |
| Colour: | White |
| Protection class: | IP66 |
| Anti-vandalism: | IK10 |
| Operating temperature: | -30°C … 60°C |
| Weight: | 1.14 kg |

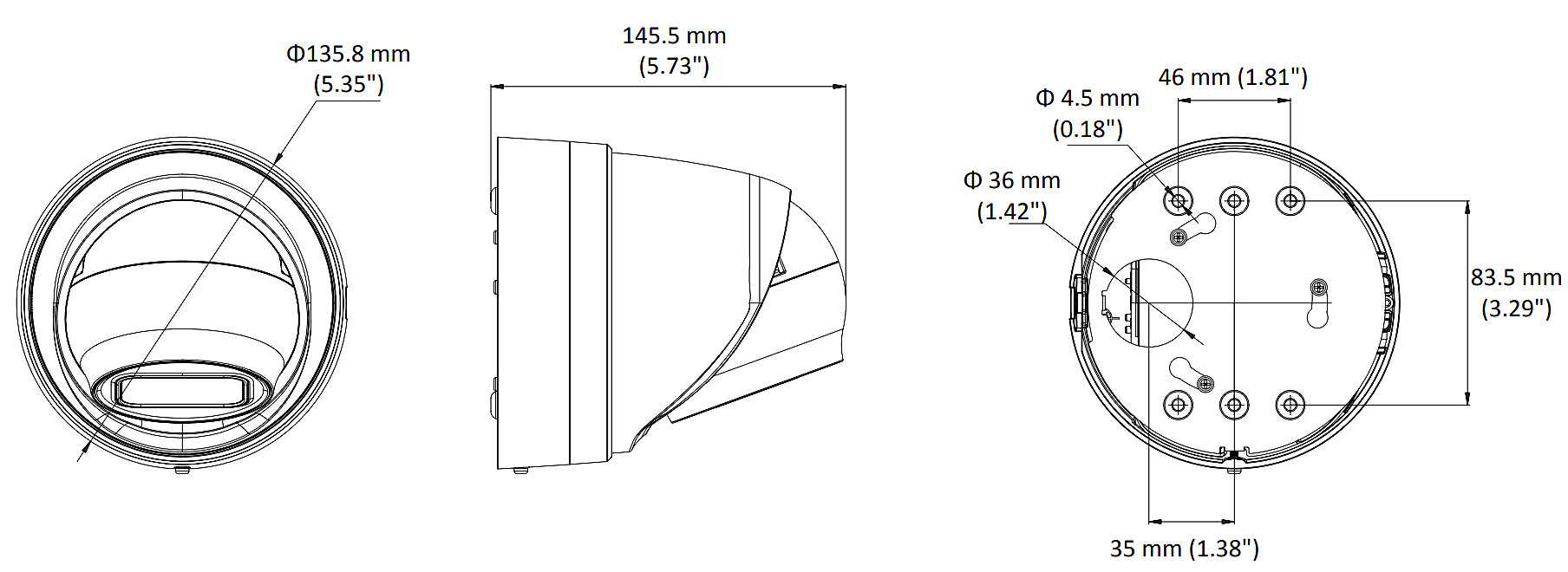

| Size: | Ø 136 x 146 mm |
| Language selection: | English, Polish, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand: | BCS View |
| Warranty: | 3 years |
