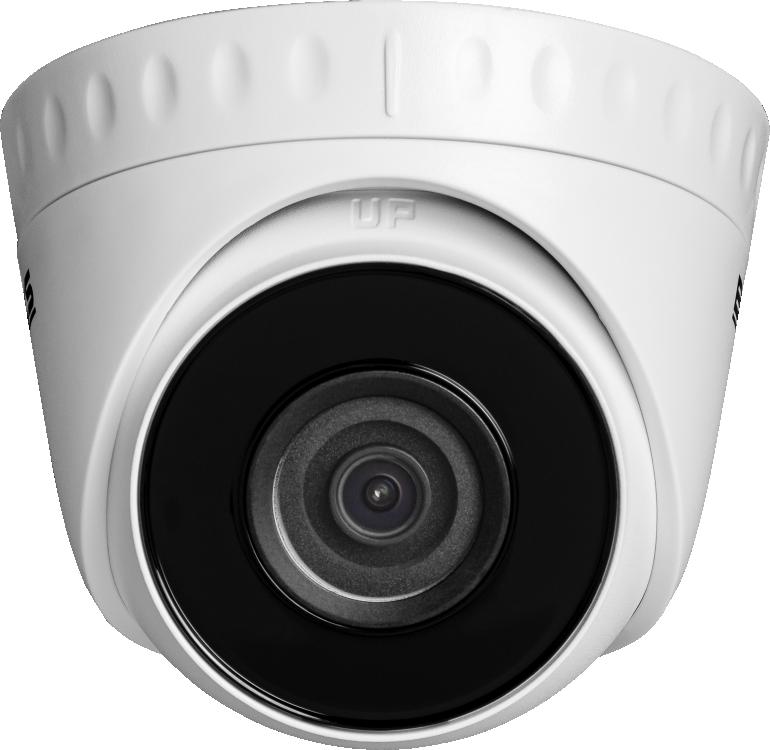

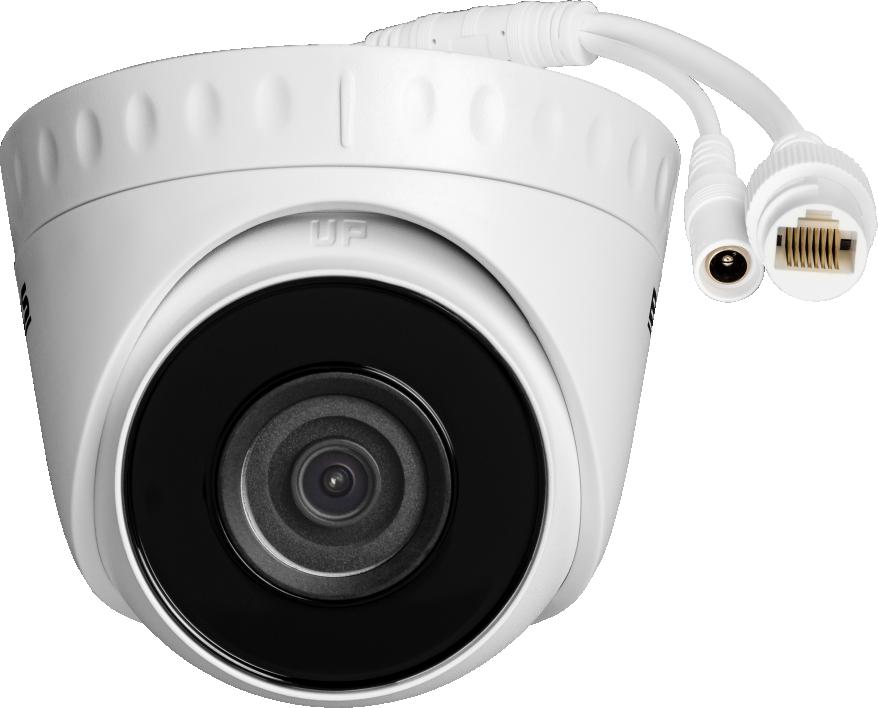

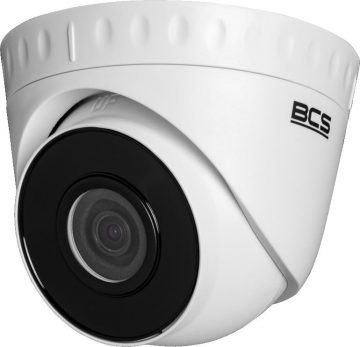

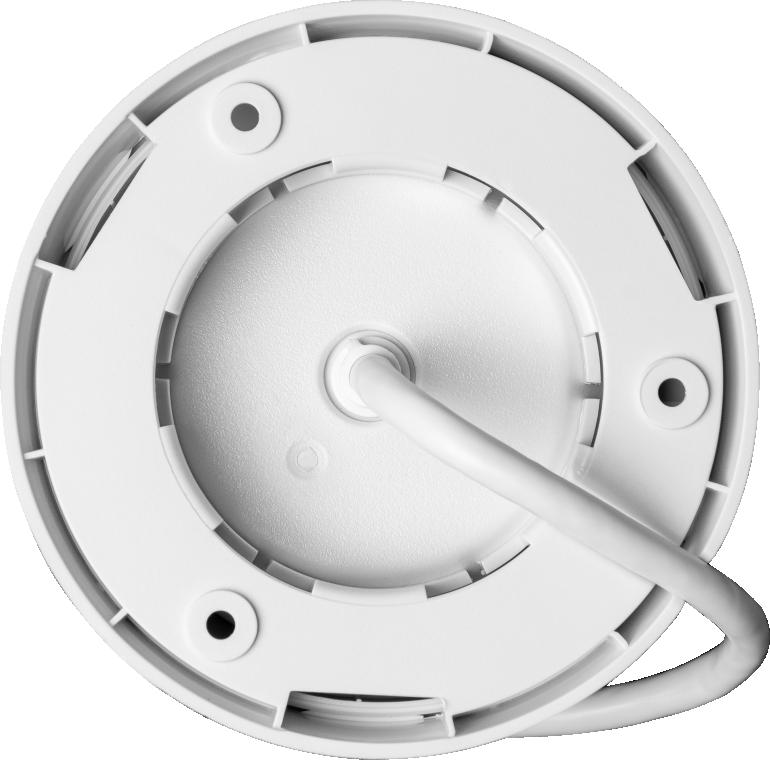

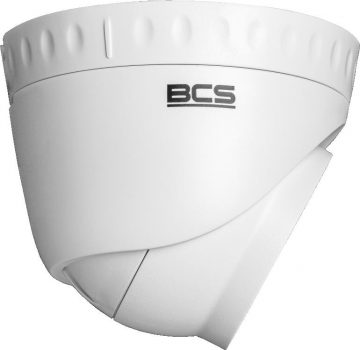

BCS VIEW BCS-V-EIP14FWR3 kamera
Main functions
- 4Mpx kupolveida IP kamera
- 1/3″ PS CMOS sensors
- Fiksēts objektīvs 2,8 mm
- WDR 120 dB
- IR 30 m
- IP67 Mājoklis
BCS Manager mobile app
BCS Manager is a free app version for operating IP CCTV systems on Android and iOS mobile phones. It allows you to view BCS NVR/XVR devices.
BCS Manager darbojas gan lokālajā Wi-Fi tīklā, gan GSM tīklā. Tas ļauj izveidot savienojumu ar ierīcēm, kas pieejamas internetā, izmantojot statisku IP adresi vai BCS P2P mākoņpakalpojumu (BCS P2P mākonim ir nepieciešama atbilstoša ierīces sagatavošana).
Technical specifications
| Device name | BCS-V-EIP14FWR3 |
| Product line | BCS VIEW |
| Camera type | Dome-shaped |
| Resolution | 4 Mpx |
| Sensors | |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Lens | Fixed |
| Focal length | 2.8mm |
| Opening | F 2,0 |
| Focus | Fixed |
| Shutter | Fixed |
| Digital zoom | 16× |
| Viewing angle | A: 98° V: 53,1° D: 114,7° |
| Camera sensitivity | 0,01 lukss (F2,0, AGC) 0 lukss (melnbalts, IR) |
| White balance | (AWB) Automatic / Manual |
| WDR | 120dB |
| Backlight compensation | BLC / WDR (120 dB) |
| Shutter speed | Automātiski / manuāls 1/3–1/100000 s |
| Pastiprinājuma vadība | (AGC) Automātiski / manuāls |
| Noise reduction | 3D DNA |
| Attēla apgriešana | Mirror image |
| Number of streams | 2 |
| Resolutions | 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) |
| Mainstream | 2560×1440@20fps 2304×1296@30fps 1920×1080@30fps 1280×720@30 kadri/s |
| Straumēšanas otrais ieraksts | 1280×720@30 kadri/s 640×480@30 kadri/s 640×360@30 kadri/s |
| Bit rate | 32 Kbps~8 Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR |
| Illuminator type | IS |
| Illuminator | 30 m |
| Support | web service, CMS BCS Manager (Windows/Linux/MAC), mobile app (iOS, Android) |
| Motion detection | Yes |
| Privacy masks | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x |
| Power source type | 12V DC / PoE (802.3af) |
| Energy consumption | maks. 5 W |
| Body color | White |
| Aizsardzības klase IP | IP67 |
| Darbības režīms apstākļi | -30°C~+60°C max. 95% relative humidity |
| Dimensions | Ø110 × 85,3 mm |
| Weight | 0,32 kg |
3 mm
