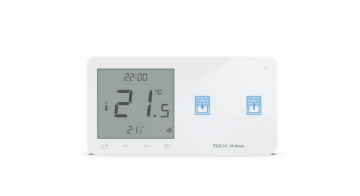

Wireless room thermostat with roller blind switch in white color WZR-02P Tech Controllers
Stylish thermostat and thermostat (in the right housing)
Purpose:
It's possible! Change traditional wall switches and connect them to a temperature controller by choosing the WZR-02 to control not only lighting, but also any device, as well as additionally get an overview and influence on the temperature in the room. All this is connected and managed in one Sinum smart home system. The double-touch switch, equipped with 2 relays and 2 sensor fields, allows you to control the roller blinds connected to the switch directly from the installation site. After connecting and programming the switch in the EH-01 control unit, it is possible to remotely control, add scenes and actions using the switch. The switch has a built-in LED that indicates the status of the device (on/off). The color and brightness of the backlight can be changed in the Sinum application. Communication with the EH-01 control panel is wireless. Expand your system with an intelligent wireless temperature controller! The controller is equipped with a large backlit display with touch buttons. In addition, it has an air humidity sensor and allows you to control the floor temperature thanks to the possibility of connecting a wired NTC floor sensor (not included). The controller sends the current temperature to the EH-01 control unit, which compares the set temperature with the current temperature and then controls the operation of the heating device, radiator or thermostatic heads to turn the heating on or off. Is it too cold or too hot? Thanks to the heating/cooling mode, you can always get the ideal temperature at any time of the year!
After connecting the controller and programming it in the EH-01 control unit, it is possible to remotely control the temperature, set schedules, perform actions and scenes depending on the room temperature. See how simple it is, and finally feel the comfort in your home!
Key features:
- room temperature measurement and control
- air humidity measurement
- the ability to regulate the temperature using the floor and less communications are not included in the package
- large LCD display with temporary backlight
- heating/cooling mode
- touch keys
- roller blinds up/down control
- 2 relays to control the raising and lowering directions of roller blinds
- ability to change the backlight color and display level
automatic options
changes00 adjusting the backlight brightness to the room lighting conditions
Technical specifications:
- Height 84.7 mm
- Width 164 mm
- Depth 37.2 mm AC power
- 0 bar Operating temperature 5° – 50° °C
- Number of relay outputs 2
- Max. relay load 0.5 A
- LCD display type
- Instantaneous display backlight YES
- Touch buttons YES
- Built-in air temperature sensor YES
- Built-in humidity sensor YES
- Hysteresis range 0.2 – 8 °C Additional options a ><ccli> Temperature .li Control by floor temperature (if NTC floor sensor is used)
