Technical Specification:
| Support: | DAHUA wireless alarm systems |
| Application: | Internal |
| Infrared detector: | Double, Low noise level |
| Sensor type: | Passive infrared (PIR) |
| Frequency range: | 868.0 … 868.6 MHz |
| Radio communication range (in open area): | max. 1600 m |

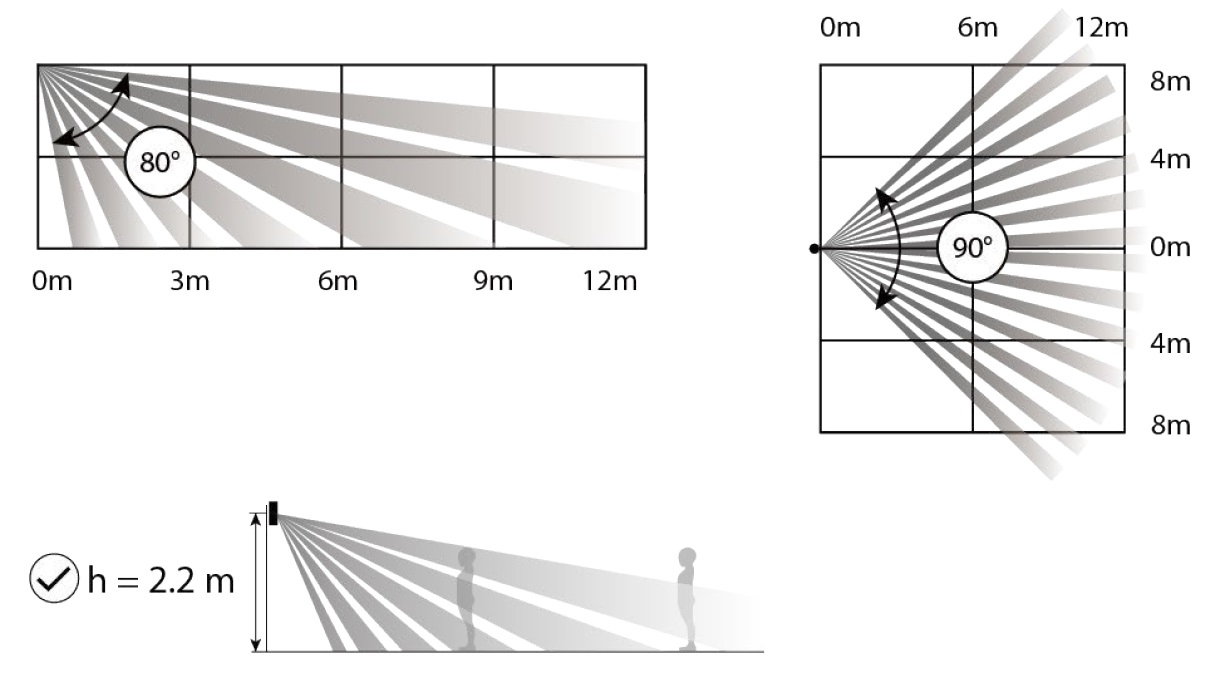

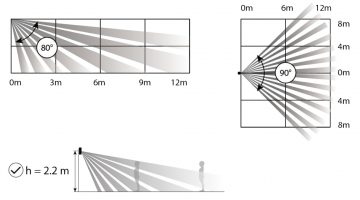

| Recommended mounting height: | 2.2 m |
| Reception area / reception angle: | 12m / 90° |
| Sensitivity setting: | max. 3 levels |
| Resistant to animals: | ≤ 18kg |
| Digital temperature compensation: | - |
| Alarm output: | Wireless communication |
| Target movement speed: | 0.3 … 3 m/s |
| Selected characteristics: | Anti-tampering Low battery level Anti-jamming with frequency hopping for stable transmission AES128 data encryption Signal strength and quality measurements Test mode Temperature measurements in the range: -15°C … +65°C Remote software update LED indicator ON/OFF button |
| Environmental class: | II |
| Protection class (Grade): | Grade 2 |
| Compliance with standards: | EN50131-1:2006+A2:2017+A3:2020, EN 50131-2-2:2017, EN 50131-6:2017, EN 50131-5-3:2017 |
| Housing: | Plastic (PC + ABS) |
| Colour: | White |

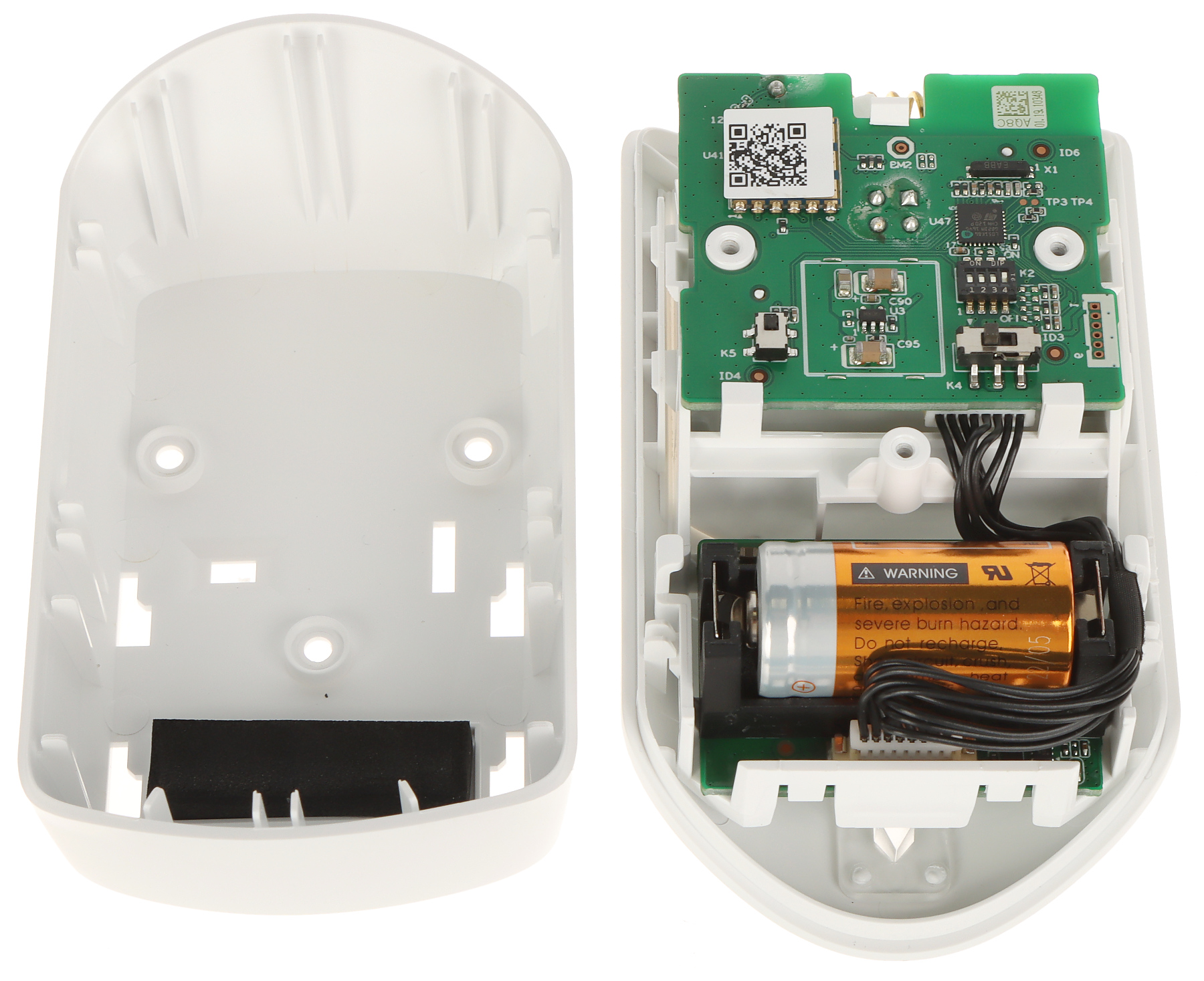

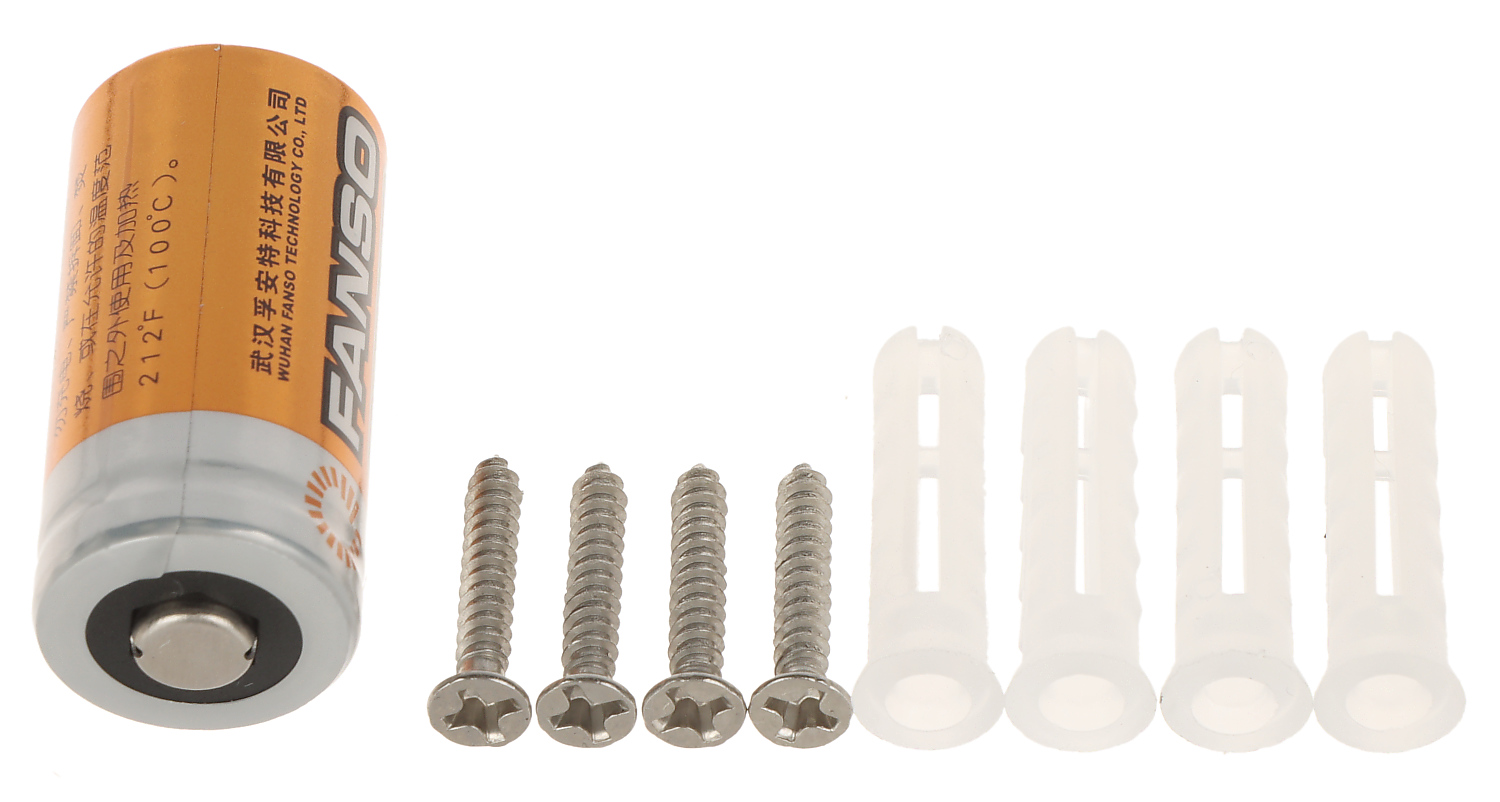

| Battery: | 1 x CR123A 3V (included) |
| Battery operating time: | ~ 4 years |
| Current consumption: | max. 120 mA |
| Operating temperature: | -10°C … 55°C |
| Weight: | 0.106 kg |

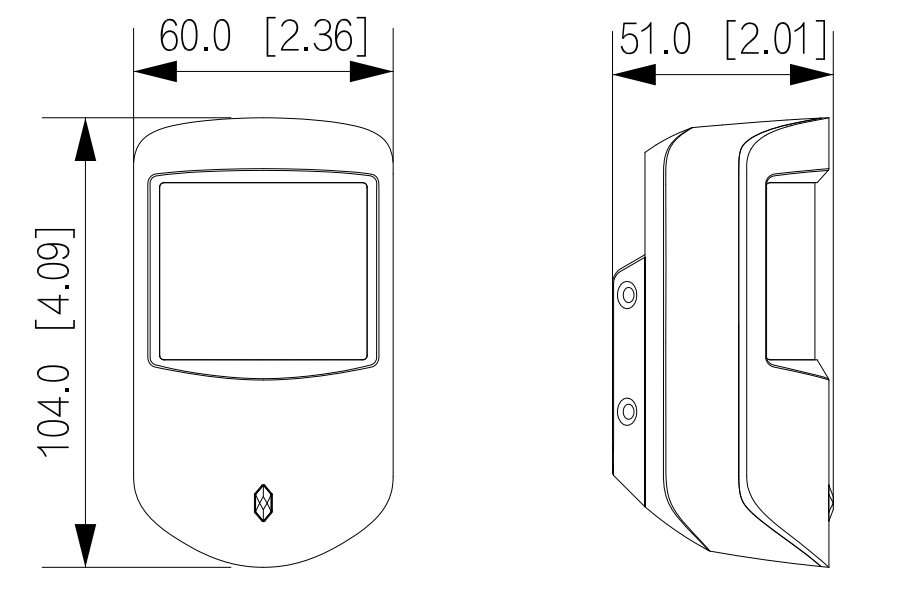

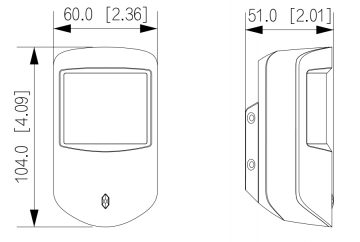

| Size: | 60 x 104 x 51 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
