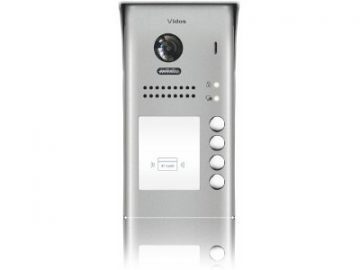

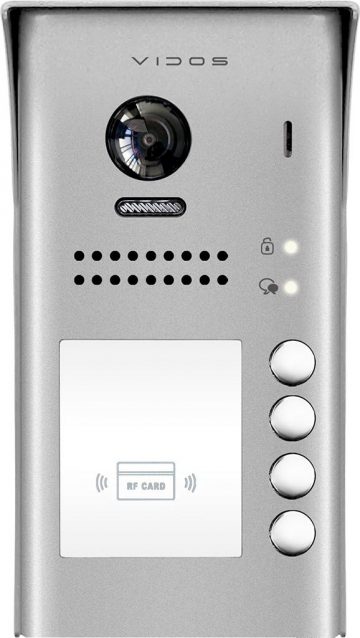

Four-family door station VIDOS DUO S1104A

Four Families Gate Station
VIDOS DUO S1104A

Goal

Four-subscriber gate station with a built-in proximity reader, which allows you to open the entrance using a card or key fobs. The panel is distinguished by a durable and aesthetically made aluminum alloy case, which has an integrated illuminated proximity reader (backlight color - white). The maximum number of programmed tags is 320, and users are added and removed using special MASTER key fobs that come with the door station. LED night backlighting allows for convenient use of the device in conditions of poor visibility.

Product description

VIDOS DUO SYSTEM Non-polarized, two-wire connection and cooperation with functional modules is a reliable and very convenient installation solution that works well in almost all conditions. The devices are characterized by excellent build quality and functions that were previously reserved for high-end products. The stylish design combines all the advantages of the DUO system into one whole, creating a top-quality product.

An undoubted advantage of the S11xx series models is the wide-angle lens, which allows observation in a 105° wide range with an additional zoom function.

The panel has the ability to control two relays with a B5 module. The maximum number of supported internal devices is 4.

Function

• Vandal-resistant aluminum alloy housing. Surface mounting.
• 600 TVL camera, 105° lens viewing angle
• Built-in RFID proximity reader in UNIQUE 125 kHz standard.
• MASTER key fobs included for programming RFID users
• Illuminated information sign. Adjustable backlight brightness.
• 1 relay output (second relay via B5 module).
• Output for connecting a motion detection sensor (PIR).
• Image zoom function.
• LED night light – (white light).
• Call start and screw opening indicator using function buttons.
• Number of internal devices supported - 4
• IP54 protection class.
• Surface mounting.
• Dimensions: 176 x 90 x 27 mm.
