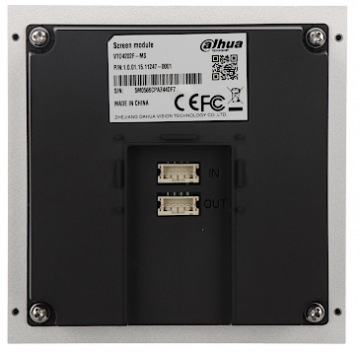

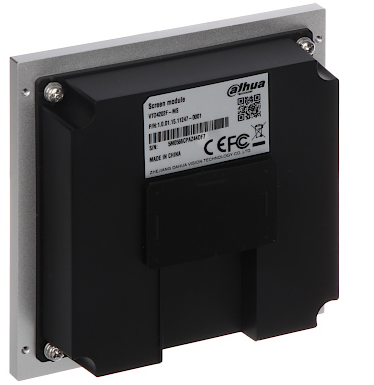

DAHUA VTO4202F-MS DISPLAY MODULE
Key features:
- sensor: 1/2.8″ 2MP HD color CMOS
- Lens: 1.95 mm - fisheye (angle of view approx. 160°/82°)
- communication interface:
- 1x Ethernet 10/100Mbps (IP)
- terminal connector, clamp – EOC (2-wire wire), function LED, NR:
- >
- built-in relay (NO / COM / NC)
- interface: 1x RS485, 1x alarm output, 1x exit button,
- 1x status indication, 1x 4-pin (for power modules)
- assembly:
- For 2 modules: box (VTM1 27>2 frame) (VTM1:1) (VTM128) + frame (VTM126)
- Compatible: TCP/IP, SIP 2.0, 2-wire (2-core), P2P
- Cooperation with CCTV and SSWiN systems
- Option to leave automatic resolution:
- 25/30 fps 1920 x 1080 (2 Mpx) - additional stream
- 25/30 frames per second for 1280 x 720 pixels (720p)
- Video bitrate: 1 Kb/s ~ 256 Kb/s (2 MP Computer) and
- Sss Management.
- Web browsers: IE (Web Service 2.0)
- mobile devices with systems: iOS, Android (DMSS)
- tightness class (IP65), resistance class (IK07)*
- power supply: DC 12V, DC 24V 2-Wre (with VTNS1006.f.8V) )
- warranty: 36 months
<>
video or text message speed capture.
>
Express, DSS PRO

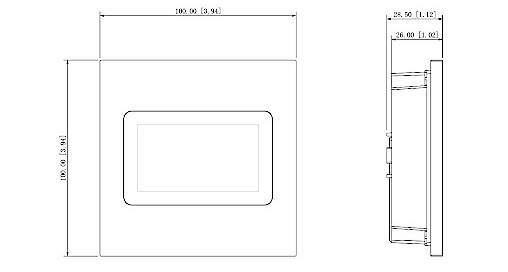

Dimensions
class=”col-sm-12″>
Technical specifications
| Compatibility: | VTO4202F-P |
| Density class: | IP65 – after additional sealing of the housing connection to the mounting surface, e.g. with silicone |
| Vandal-resistant: | IK07 |
| Weight: | 0.22 kg |
| Dimensions: | 100 x 100 x 28.5 mm |
| Manufacturer / Producer / Brand: | 3 years |

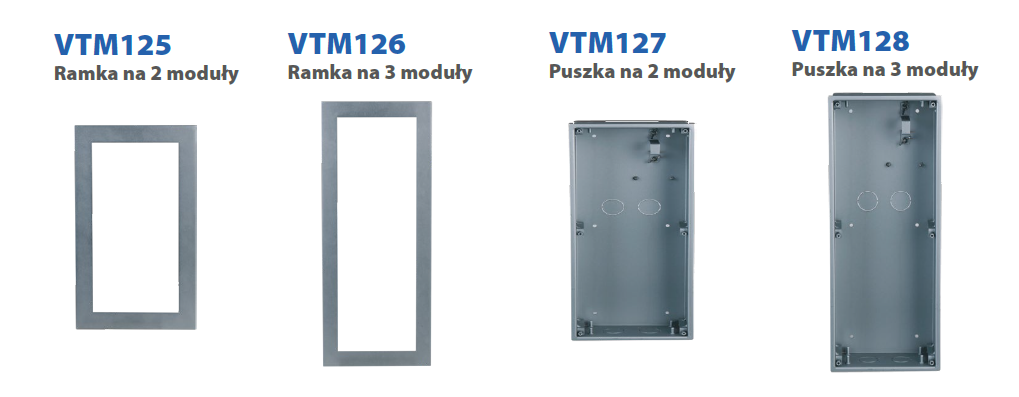

Additional elements
9/modu_czytnika_zblieniowego_mifare_dahua_vto4202fms_eb704bb1b9781.png” alt=”Additional elements” loading=”lazy” />
