Technical Specification:
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Matrix size: | 5 Mpx |
| Sensors: | 1/2.8” CMOS |
| Resolution: | 2592 x 1944 – 5 Mpx, 2560 x 1440 – 3.7 Mpx |
| Infrared illumination detection area: | 10 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 1.4 mm – Fish Eye, F2.0 |
| Viewing angle: | 180° |
| Compatible with IR illuminator: | ICR – Infrared mechanical filter |
| Signal to noise ratio (S/N): | > 65 dB |
| Audio: | Built-in microphone |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Selected features: | 2D-DNR / 3D-DNR – Digital Noise Reduction WDR – 120 dB – Wide Dynamic Range BLC – Configurable Backlight Compensation HLC – High Light Compensation (Spotlight) AGC – Automatic Gain Control Automatic White Balance |
| OSD screen menu: | OSD menu available via video recorders |
| Source of energy supply: | 12V DC / 610mA |
| Power consumption: | ≤ 7.3W |

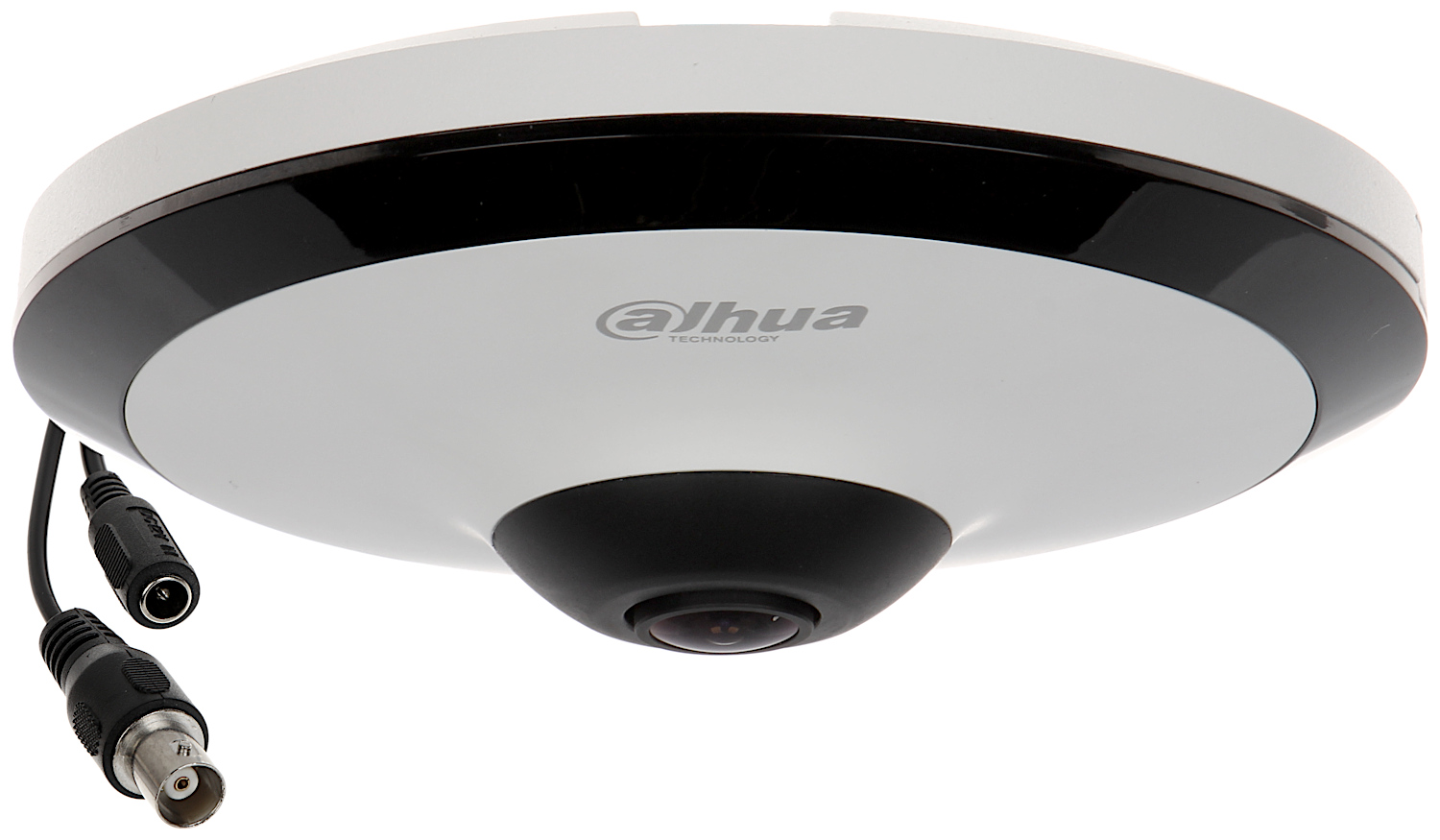

| Housing: | Dome, Plastic |
| Protection class: | - |
| Anti-vandalism: | - |
| Colour: | White |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.26 kg |

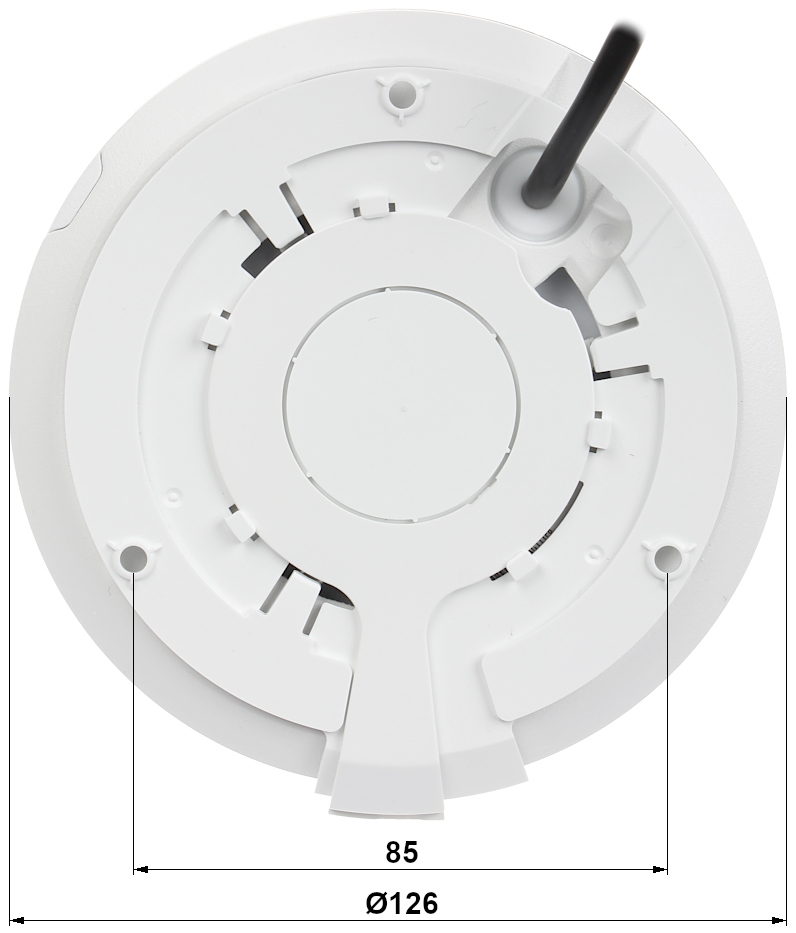

| Size: | Ø 126 x 44 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
