Technical Specification:
| Standard: | AHD / HD-CVI / HD-TVI / PAL |
| Sensors: | 1/2.7” CMOS |
| Matrix size: | 2.0 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 720 – 720p 960 x 576 – 960H , PAL |
| Infrared illumination detection area: | 30 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8mm, F2.0 |
| Viewing angle: | 116 ° (manufacturer's data) 110 ° (our tests) |
| Compatible with IR illuminator: | ICR – Infrared mechanical filter |
| Signal to noise ratio (S/N): | > 65 dB |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Selected features: | ICR – Infrared mechanical filter AGC – Automatic gain control DNR – Digital noise reduction D-WDR – Wide dynamic range BLC – Configurable backlight compensation HLC – High light compensation (spot) Mirror – mirror image Automatic white balance Privacy zone |
| OSD screen menu: | OSD menu available via video recorders |
| Source of energy supply: | 12V DC / 230mA |
| Power consumption: | ≤ 3.2W |
| Housing: | Dome, Metal |
| Colour: | White |
| Protection class: | IP67 |
| Anti-vandalism: | IK10 |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.31 kg |

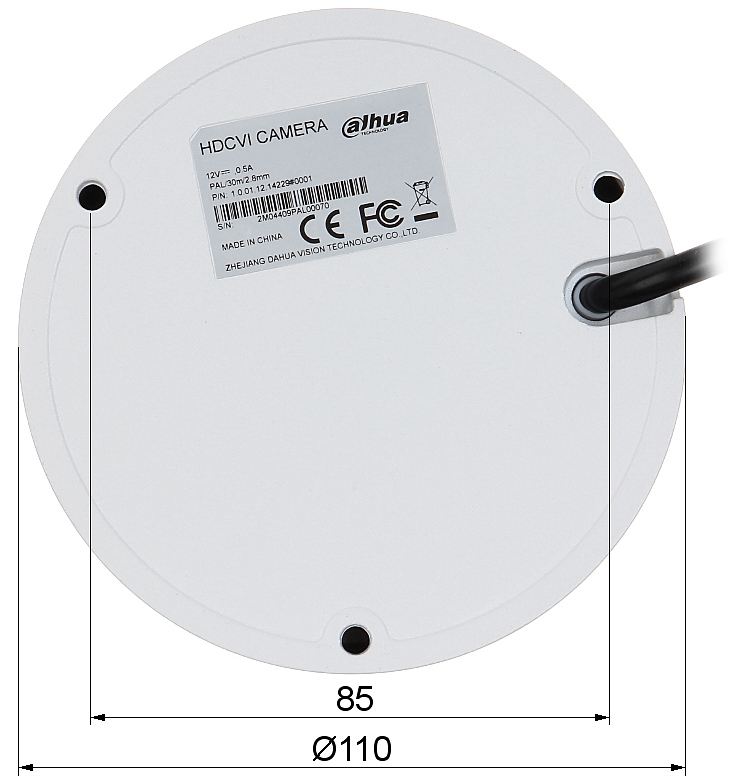

| Size: | Ø 110 x 81 mm |
| Language selection: | Polish, English, Chinese, French, Spanish, Japanese, Korean, German, Portuguese, Russian, Italian |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
