Technical Specification:
| Standard: | HD-CVI, HD-TVI, AHD, CVBS |
| Sensors: | 1/2.8” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p , 960 x 576 – 960H , PAL |
| Infrared illumination detection area: | 60 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8 mm |
| Viewing angle: | 107 ° (manufacturer's data) 101 ° (our tests) |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Audio: | Built-in microphone, Audio playback via coaxial cable – HD-CVI only |
| Selected features: | WDR – 130 dB – Wide dynamic range of lighting 3D-DNR – Digital noise reduction BLC/HLC – Background / high light compensation ICR – Infrared mechanical filter Day/night mode AGC – Automatic image gain control Automatic white balance Privacy zones – max. 8 Mirror – mirror image Sharpness – Sharpness of image contours |
| OSD screen menu: | OSD menu available using DAHUA video recorders |
| Source of energy supply: | 12V DC / 430mA |
| Power consumption: | ≤ 5.1W |
| Housing: | Dome, Metal + Plastic |
| Protection class: | IP67 |
| Colour: | White |
| Anti-vandalism: | - |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.41 kg |

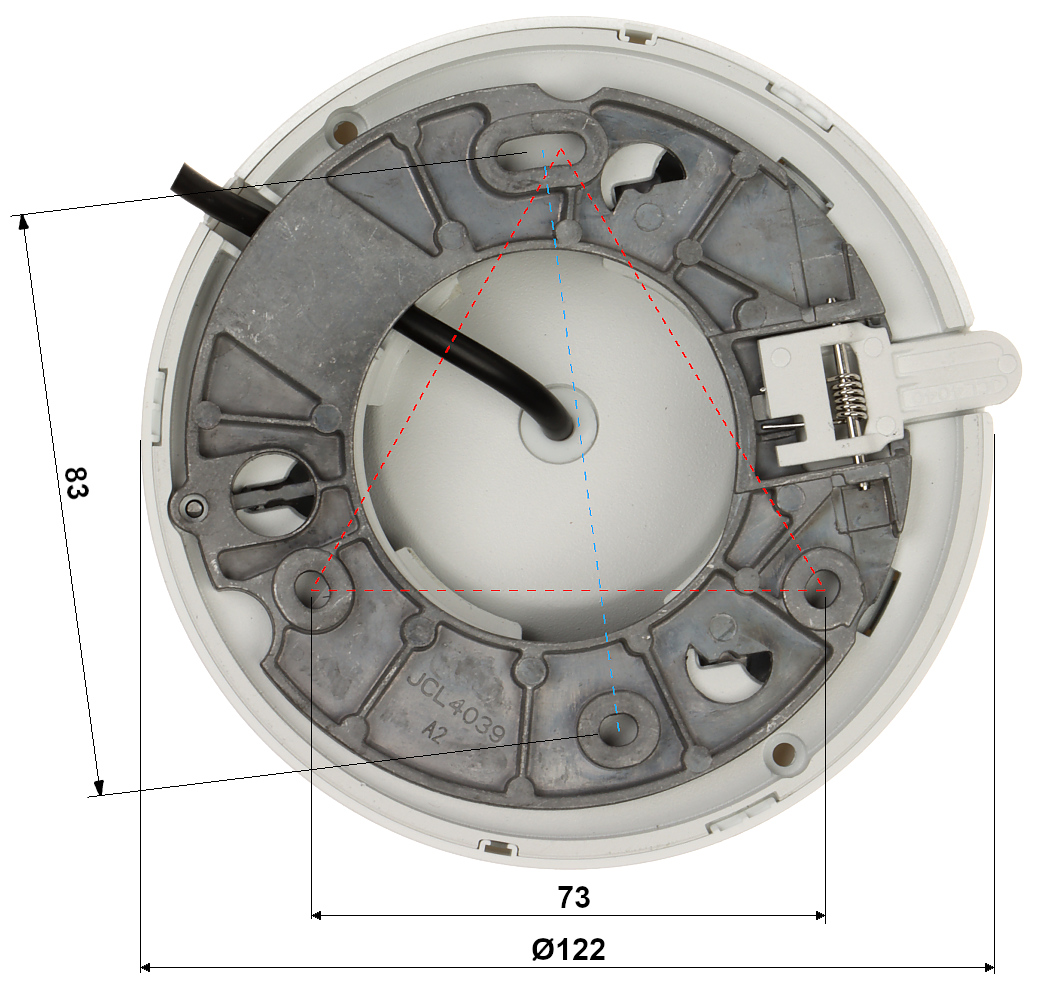

| Size: | Ø 122 x 99 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
