Technical Specification:
| Standard: | HD-CVI, HD-TVI, AHD, CVBS |
| Sensors: | 1/2.7” CMOS |
| Matrix size: | 3.7 Mpx |
| Resolution: | AHD / HD-CVI / HD-TVI : 2560 x 1440 – 3.7 Mpx , HD-CVI : 1920 x 1080 – 1080p , CVBS 960 x 576 – 960H , PAL |
| Infrared illumination detection area: | 30 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8 mm |
| Viewing angle: | 97 ° (ražotāja dati) 94 ° (mūsu pārbaudes) |
| Video output: | AHD / HD-CVI / HD-TVI / PAL , 1 Vpp / 75 Ω |
| Audio: | - |
| Selected features: | D-WDR – Plašs apgaismojuma dinamikas diapazons 2D-DNR – Digitāla trokšņa redukcija BLC/HLC – fona / spēcīgas gaismas kompensācija ICR – infrasarkano staru mehāniskais filtrs AGC – Automātiska attēla pastiprinājuma regulēšana Automātisks baltā balanss Privātuma zona Mirror – spoguļattēls Sharpness – Attēla kontūru asums |
| OSD screen menu: | OSD menu available using DAHUA video recorders |
| Source of energy supply: | 12 V DC / 330 mA |
| Power consumption: | ≤ 4 W |

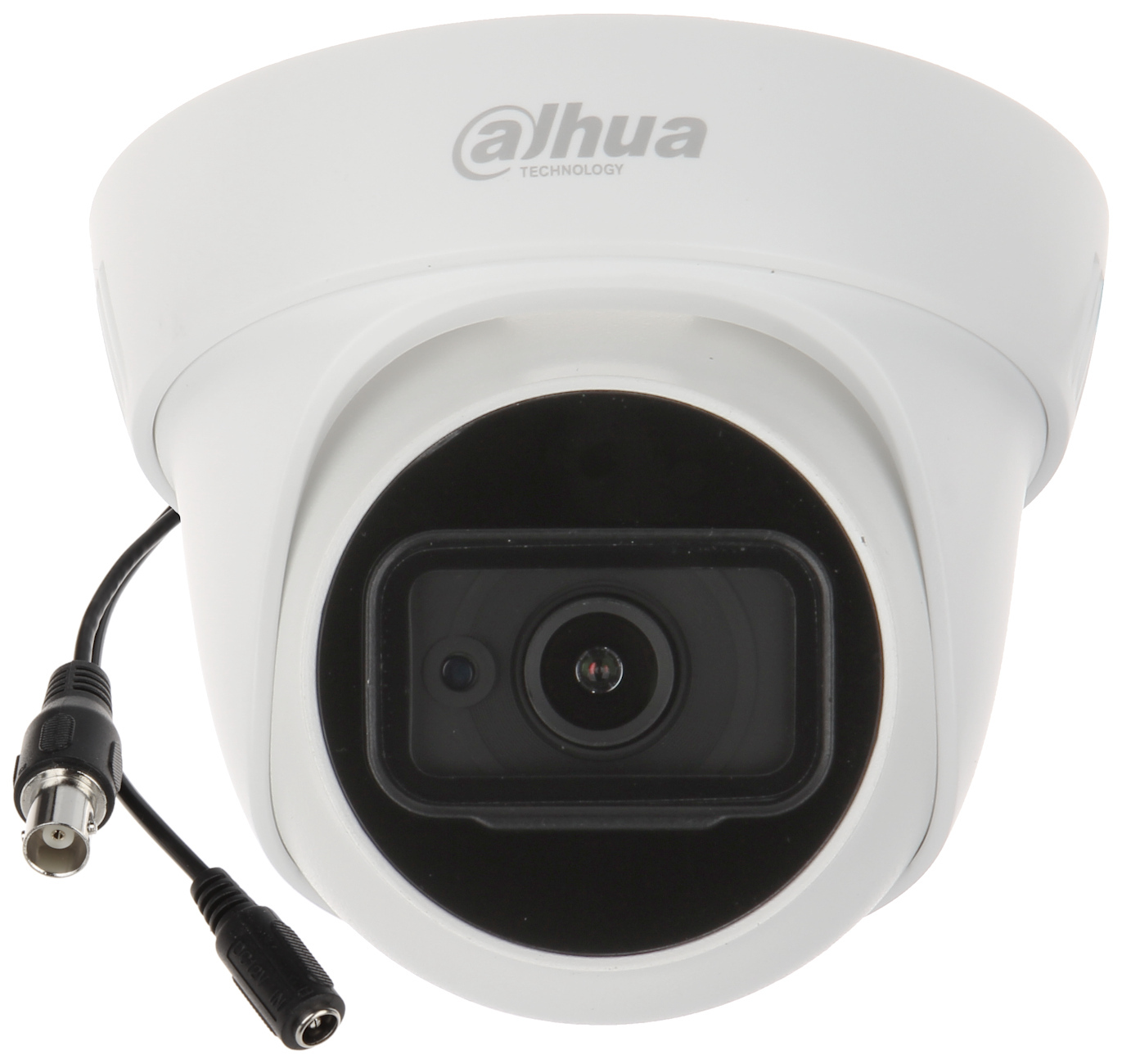

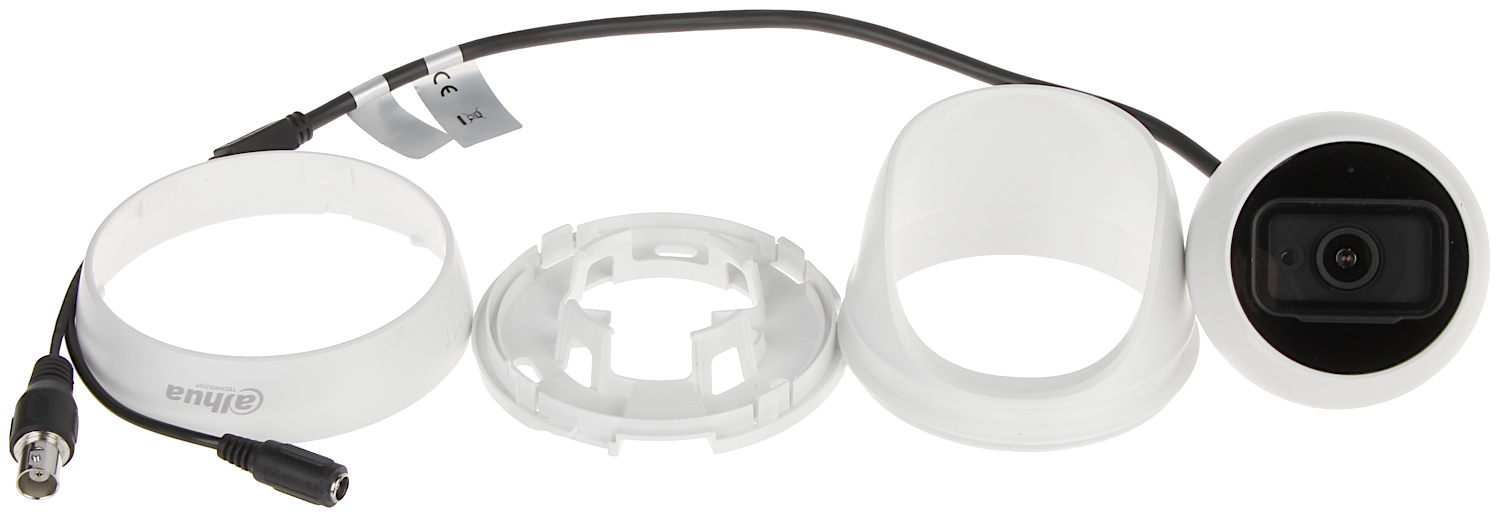

| Housing: | Dome, Aluminum + Plastic |
| Protection class: | IP67 |
| Colour: | White |
| Anti-vandalism: | - |
| Operating temperature: | -40°C … 60°C |
| Weight: | 0.22 kg |

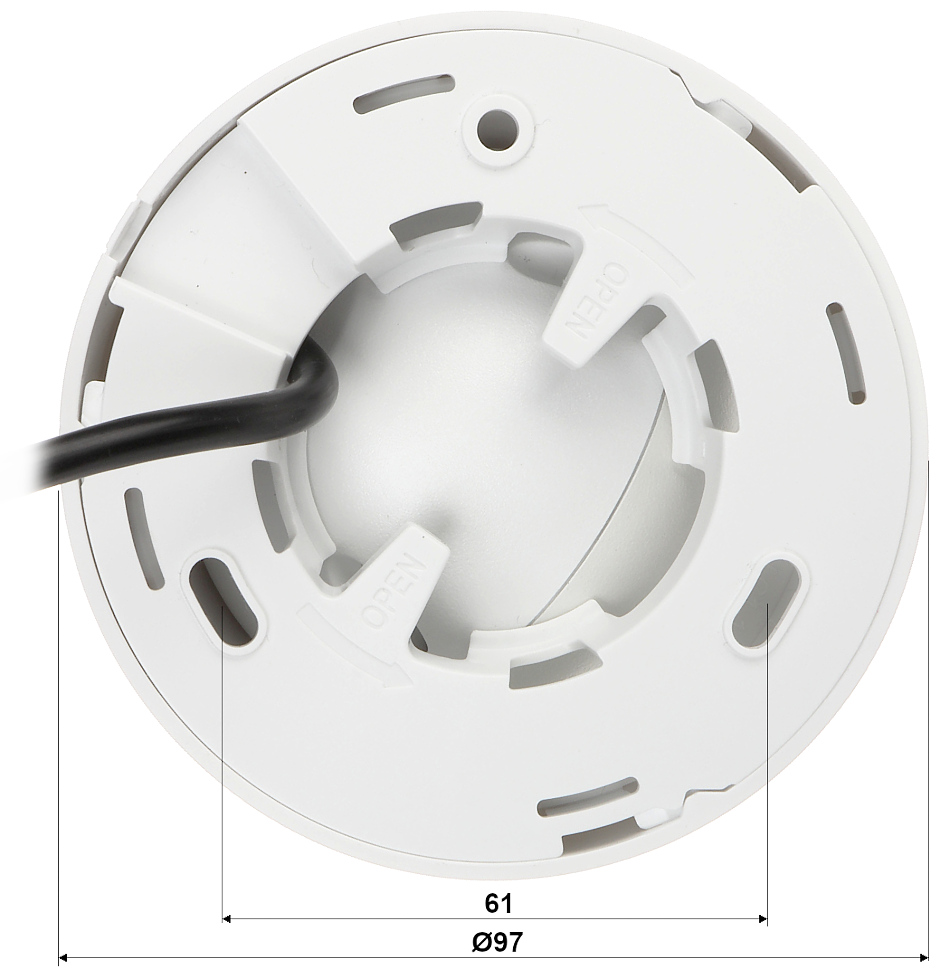

| Size: | Ø 97 x 86 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
