Technical Specification:
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Sensors: | 1/1.8” Progressive Scan CMOS |
| Matrix size: | 8.3 Mpx |
| Resolution: | HD-CVI : 3840 x 2160 – 8.3 Mpx , 4K UHD @ 15 kadru nomaiņas ātrums , 3072 x 2048 – 6.3 @ 20 kadru nomaiņas ātrums , 2560 x 1440 – 3.7 Mpx @ 25 kadru nomaiņas ātrums , AHD / HD-TVI : 2592 x 1944 – 5 Mpx , 2560 x 1440 – 3.7 Mpx @ 25 kadru nomaiņas ātrums , CVBS : 960 x 576 – 960H , PAL |
| Compatible with IR illuminator: | ICR – Infrared mechanical filter |
| Infrared illumination detection area: | 50 m |
| IR illuminator power adjustment: | Automatic |
| Signal to noise ratio (S/N): | > 65 dB |
| Lens: | 2.8 mm |
| Viewing angle: | 111 ° (manufacturer's data) 106 ° (our tests) |
| Video output: | AHD / HD-CVI / HD-TVI / PAL , 1 Vpp / 75 Ω |
| Audio: | Iebūvēts mikrofons – tikai HD-CVI, Ārējā mikrofona ieeja – tikai HD-CVI |
| Selected features: | WDR – 120 dB – Plašs apgaismojuma dinamikas diapazons 3D-DNR – Digitāla trokšņa redukcija BLC/HLC – fona / spēcīgas gaismas kompensācija ICR – infrasarkano staru mehāniskais filtrs Automātisks baltā balanss AGC – Automātiska attēla pastiprinājuma regulēšana Sharpness – Attēla kontūru asums |
| OSD screen menu: | OSD menu available using DAHUA video recorders |
| Source of energy supply: | 12V DC / 670mA |
| Power consumption: | ≤ 8W |
| Housing: | Dome, Alumīnijs |
| Colour: | White |
| Anti-vandalism: | - |
| Protection class: | IP67 |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.51 kg |

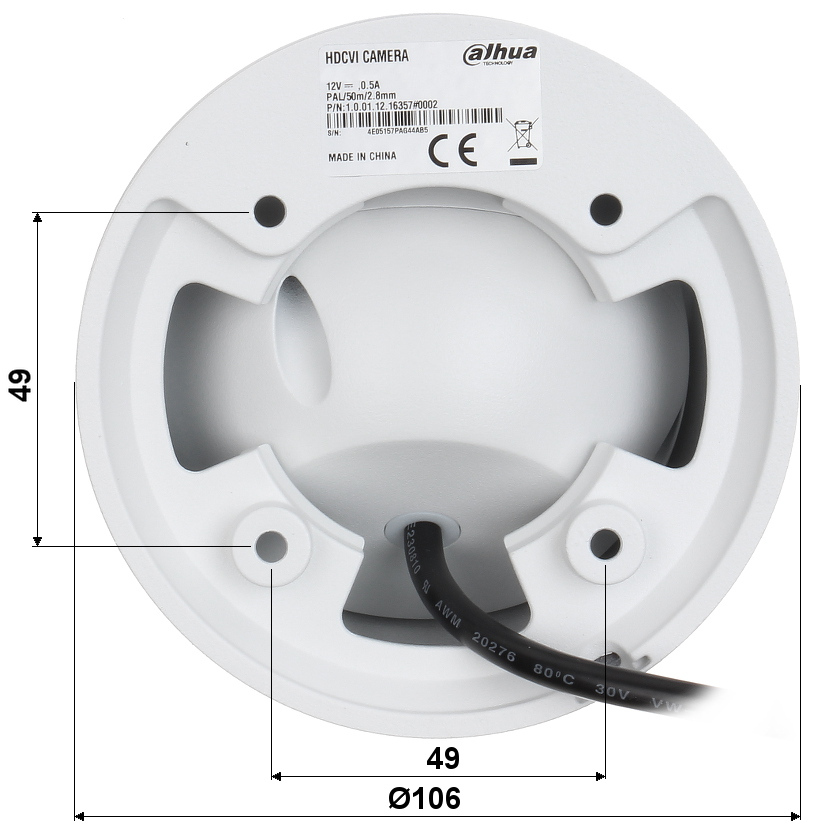

| Size: | Ø 106 x 99 mm |
| Language selection: | Polish, English, French, Spanish, German, Portuguese, Russian, Italian |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
